Using Scan Tool

Locate Data Link Connector (DLC). On MDX, connector is behind driver's side lower dash panel. See Fig 1 . On 3.2CL and 3.2TL, connector is in center console, behind ash tray. See Fig 2 . Connect and operate scan tool in accordance with manufacturer's instructions.

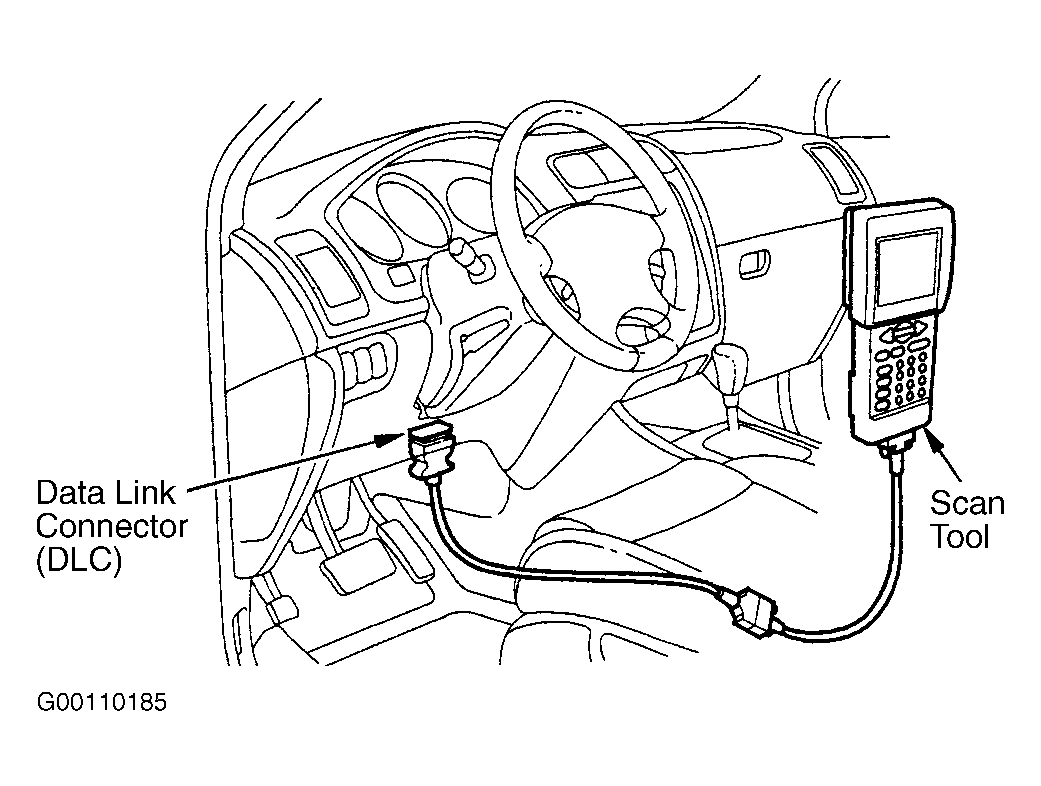

Fig 1: Locating Data Link Connector (DLC - MDX)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Locating Data Link Connector (DLC - 3.2CL & 3.2TL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
