Initializing The OPDS Unit (02-020)

Publication date: 2012-08-16
Reference number: 02-020

INITIALIZING THE OPDS UNIT

INITIALIZING THE OPDS UNIT

TECHNICAL SERVICE BULLETIN

Reference Number(s): 02-020, Date of Issue:  August 16, 2012
ACURA: All Models With Side Airbags
CATEGORY: Restraints
APPLIES TO: Models with OPDS Unit - ALL
Superceded Bulletin(s): 02-020, Date of Issue:  July 16, 2004
NOTE: Supersedes 02-020, dated July 16, 2004.

REVISION SUMMARY

INTRODUCTION

To work properly, the occupant position detection system (OPDS) unit must be initialized whenever you replace the SRS unit, the OPDS unit, or the seat-back cover or seat-back cushion in the front passenger's seat.

You can initialize the OPDS unit two different ways: (1) using the Honda Diagnostic System (HDS) or (2) using the Manual Mode.

TOOL INFORMATION

Honda Diagnostic System (HDS) with latest software version.

or

SCS Service Connector: P/N 07PAZ-0010100 (Two required for 3.5RL.)

WARRANTY CLAIM INFORMATION

For warranty claim information, refer to the appropriate service bulletin or the flat rate manual.

Skill Level: Repair Technician

INITIALIZING THE OPDS UNIT: HONDA DIAGNOSTIC SYSTEM

NOTE: This bulletin applies to vehicles with an OPDS unit . For information on vehicles equipped with an ODS unit, refer to these job aids and training modules.
  • Job Aid:SRS Troubleshooting Process
  • Job Aid: SRS Occupant Detection System (ODS) Troubleshooting and Repair
  • Training Module: RSC24 Restraints T/S Procedures
  • Training Module: RSC26 Restraints System Repair Procedures
  1. Adjust the front passenger's seat-back to a normal upright position, and remove anything that is on or near the seat.
  2. Start the engine, and turn on the A/C. Close the doors and windows, and run the A/C in Recirculation mode for 30 minutes.  (This will dry out any moisture that may be in the front passenger's seat.)
  3. Turn the ignition switch to LOCK (0).
  4. Connect the Honda Diagnostic System (HDS) with version 1.012.023 or later software to the 16P data link connector (DLC).
  5. Turn the ignition switch to ON (II), and then turn on the HDS.
  6. At the screen prompts, enter the VIN and the odometer reading, and then verify the correct date and time.
  7. From the System Selection Menu  screen, select SRS.
  8. From the Mode Menu  screen, select Miscellaneous Test.
  9. From the Miscellaneous Test Menu  screen, select OPDS Initialization.
  10. Follow the remaining screen prompts to complete the OPDS unit initialization process. If the initialization fails, try initializing the OPDS unit using the Manual Mode.

INITIALIZING THE OPDS UNIT: MANUAL MODE

  1. Adjust the front passenger's seat-back to a normal upright position, and remove anything that is on or near the seat.
  2. Start the engine, and turn on the A/C. Close the doors and windows, and run the A/C in Recirculation mode for 30 minutes.  (This will dry out any moisture that may be in the front passenger's seat.)
  3. Turn the ignition switch to LOCK (0).
  4. All models except 3.5RL:  Connect the Honda Diagnostic System (HDS) with version 1.012.023 or later software to the 16P data link connector (DLC). Leave the ignition switch turned to LOCK (0). Turn on the HDS.
  5. 3.5RL only:  Plug the SCS service connector into the 2P service check connector. Do not use a jumper wire. Refer to page 24-88 of the 1996-01 3.5RL Service Manual for details. (In ISIS, use the keyword OPDS  , and select Initializing the OPDS  from the list.) Go to step  8.
  6. At the screen prompts, enter the VIN and the odometer reading, and then verify the correct date and time.
  7. From the Select Mode  screen, select SCS  , and follow the screen prompts.
  8. Plug the SCS service connector into the 2P memory erase signal (MES) connector, as shown. Do not use a jumper wire.  (For a 3.5RL, you need a second SCS service connector for this step.)

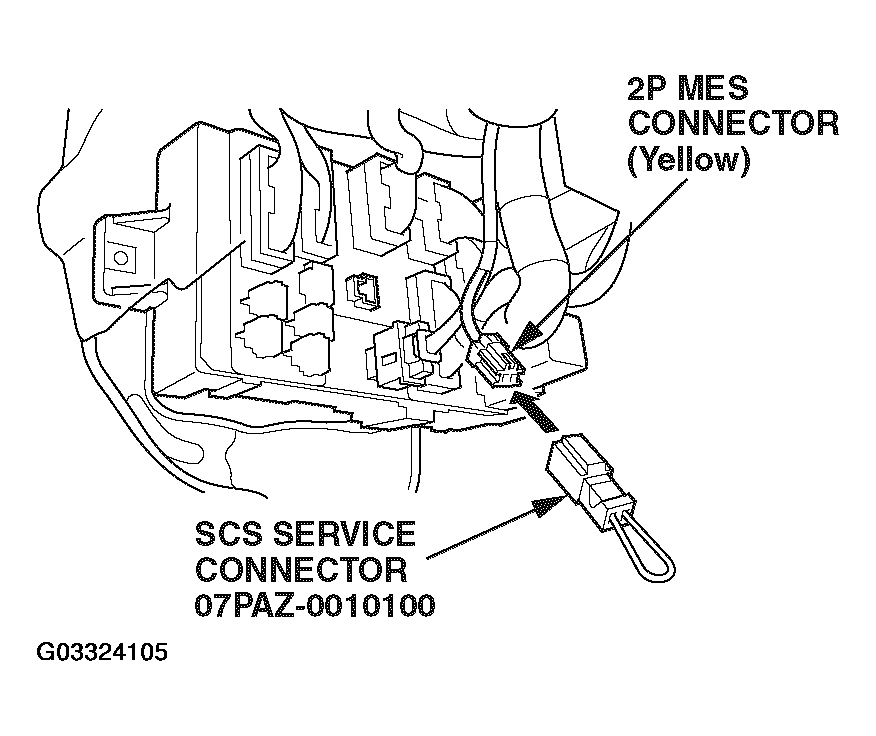

    Fig 1: Plugging SCS Service Connector Into 2P Memory Erase Signal (MES) Connector (3.2CL/3.2TL)
    G03324105

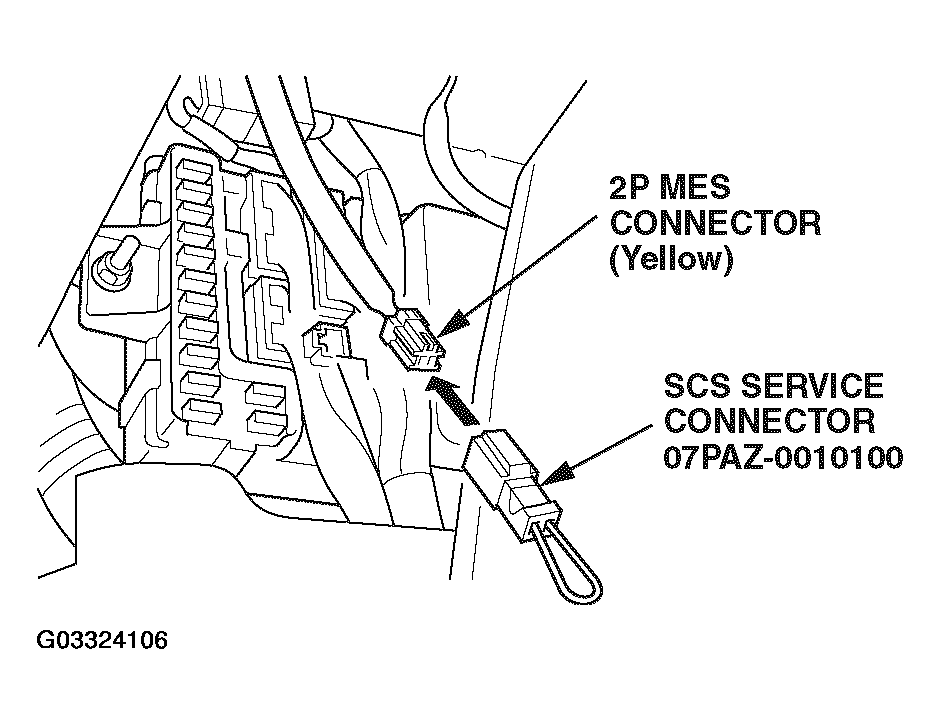

    Fig 2: Plugging SCS Service Connector Into 2P Memory Erase Signal (MES) Connector (MDX)
    G03324106

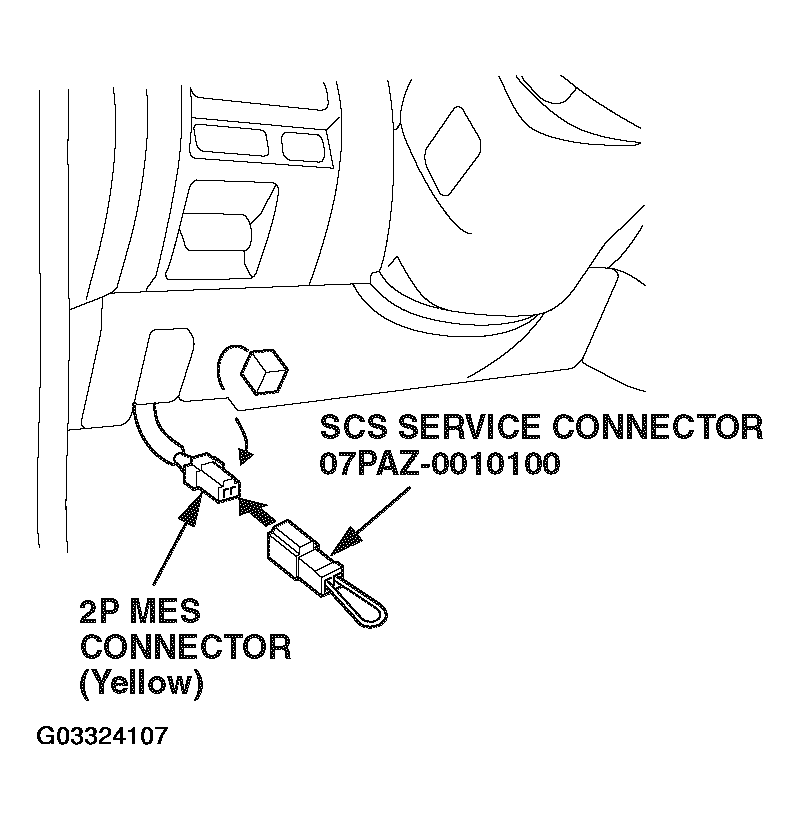

    Fig 3: Plugging SCS Service Connector Into 2P Memory Erase Signal (MES) Connector (3.5RL)
    G03324107

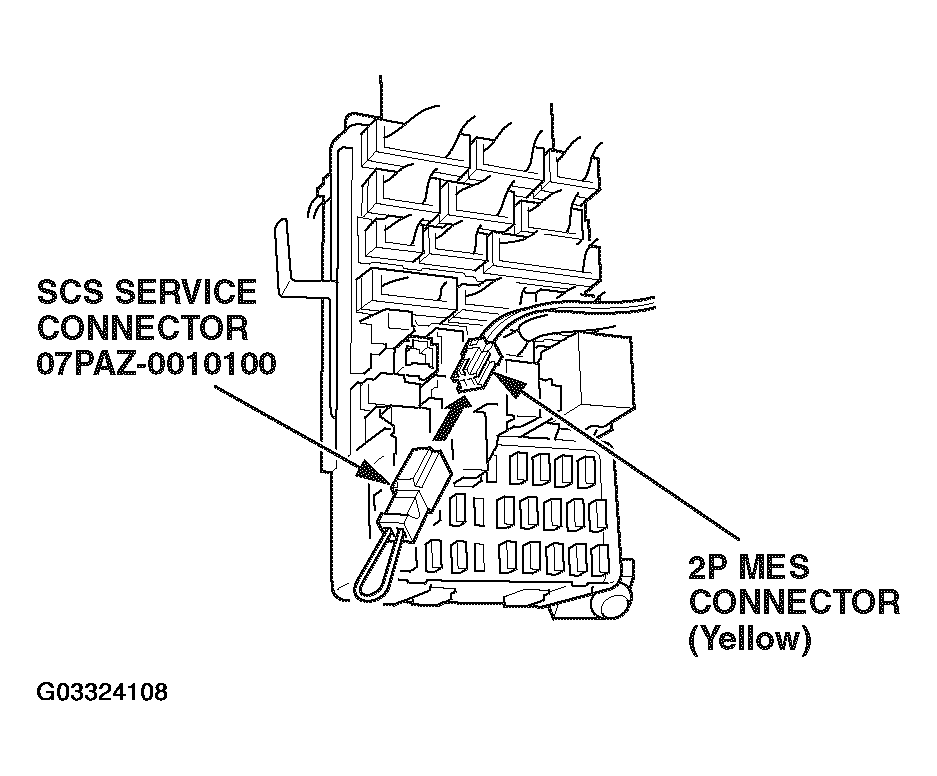

    Fig 4: Plugging SCS Service Connector Into 2P Memory Erase Signal (MES) Connector (RSX)
    G03324108

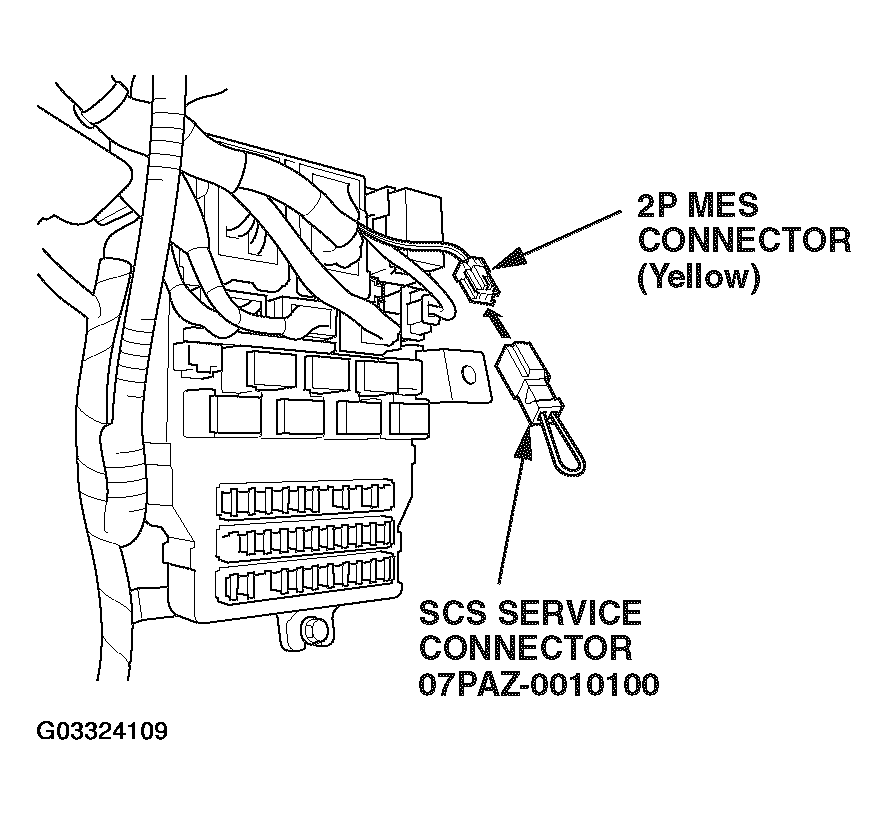

    Fig 5: Plugging SCS Service Connector Into 2P Memory Erase Signal (MES) Connector (TL)
    G03324109

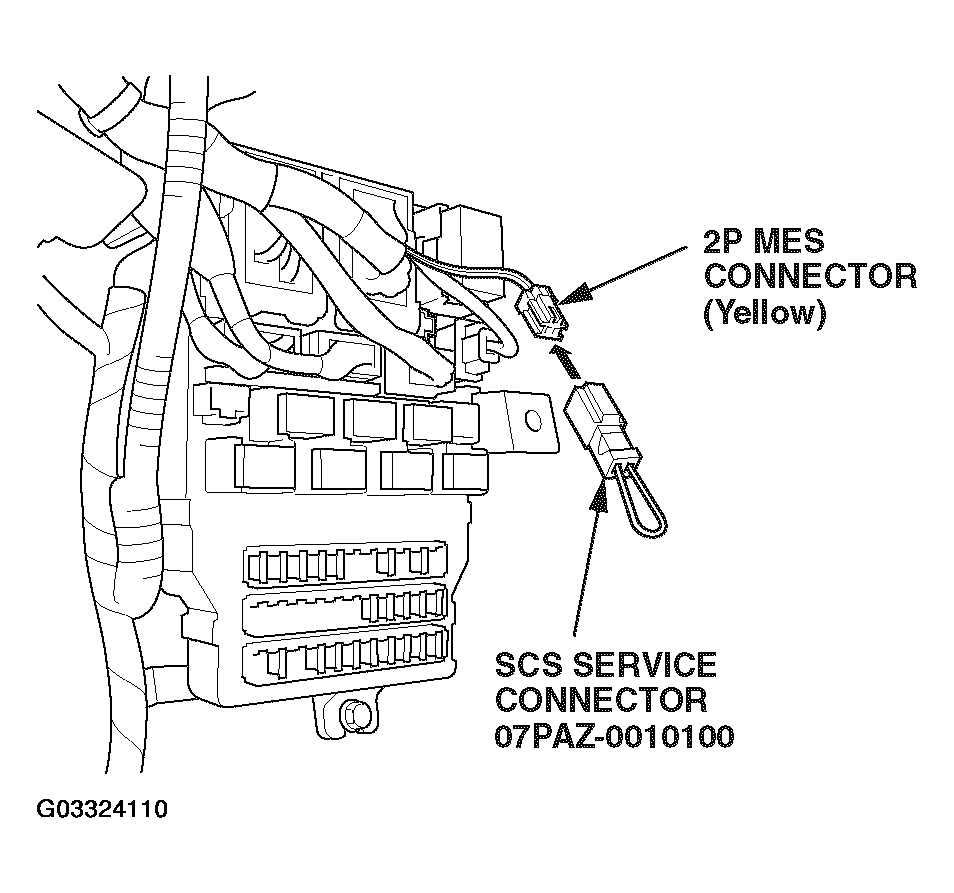

    Fig 6: Plugging SCS Service Connector Into 2P Memory Erase Signal (MES) Connector (TSX)
    G03324110
  9. Turn the ignition switch to ON (II).
  10. Watch the SRS indicator. (It comes on for about 6 seconds  and then goes off.) Unplug the SCS service connector from the 2P MES connector within 4 seconds  after the indicator goes off.
  11. When the SRS indicator comes on again, plug the SCS service connector into the 2P MES connector within 4 seconds  after the indicator comes on.
  12. When the SRS indicator goes off, unplug the SCS service connector from the 2P MES connector within 4 seconds.
  13. Watch the SRS indicator:
    • If the indicator blinks twice and then goes off, the OPDS unit is initialized. Turn the ignition switch to LOCK (0), and disconnect the HDS (all models except 3.5RL) or unplug the SCS service connector from the 2P service check connector (3.5RL only). Return the vehicle to your customer.
    • If the indicator blinks twice and then stays on, the OPDS unit is initialized, but the SRS DTCs need to be cleared. Go to step  14.
    • If the indicator stays on without first blinking, the OPDS unit is not initialized. Repeat steps 3 thru 12.
  14. Turn the ignition switch to LOCK (0). Disconnect the HDS (all models except 3.5RL) or unplug the SCS service connector from the 2P service check connector (3.5RL only).
  15. Plug the SCS service connector into the 2P MES connector. Do not use a jumper wire.
  16. Turn the ignition switch to ON (II).
  17. Watch the SRS indicator. (It comes on for about 6 seconds  and then goes off.) Unplug the SCS service connector from the 2P MES connector within 4 seconds  after the indicator goes off.
  18. When the SRS indicator comes on again, plug the SCS service connector into the 2P MES connector within 4 seconds  after the indicator comes on.
  19. When the SRS indicator goes off, unplug the SCS service connector from the 2P MES connector within 4 seconds.  (The SRS indicator blinks twice to indicate that the memory has been cleared.)
  20. Turn the ignition switch to LOCK (0), and wait for 10 seconds.
  21. Turn the ignition switch to ON (II). (The SRS is OK if the SRS indicator comes on for 6 seconds  and then goes off.) If the DTC clearing fails, repeat the process two more times. If the DTC clearing fails again, check for set SRS DTCs, and troubleshoot in accordance with the appropriate service manual.
