Driving Position Memory System (DPMS)
>>
Component Location Index
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Component Location Index

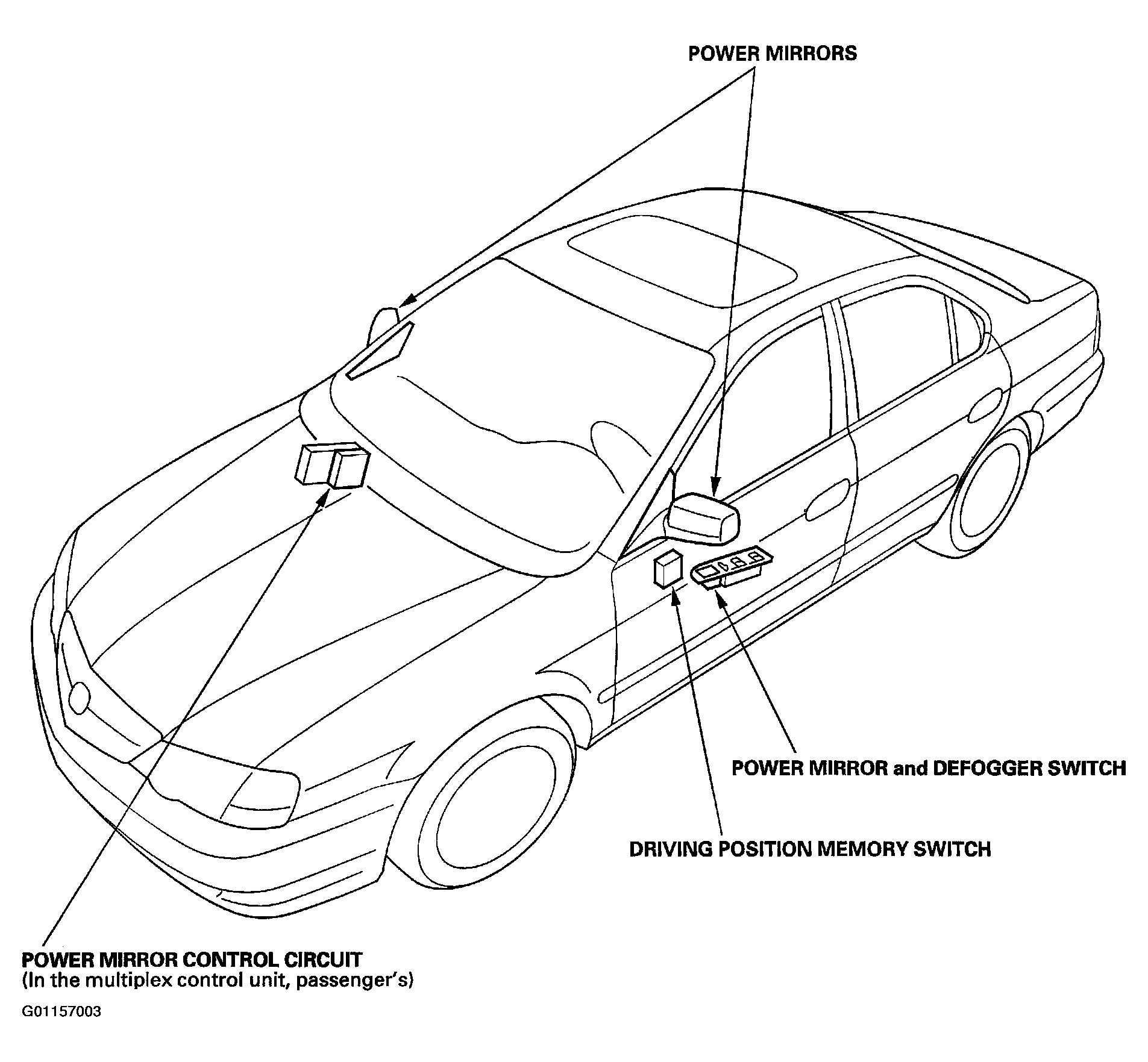

Fig 1: Locating Driving Position Memory System Components (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

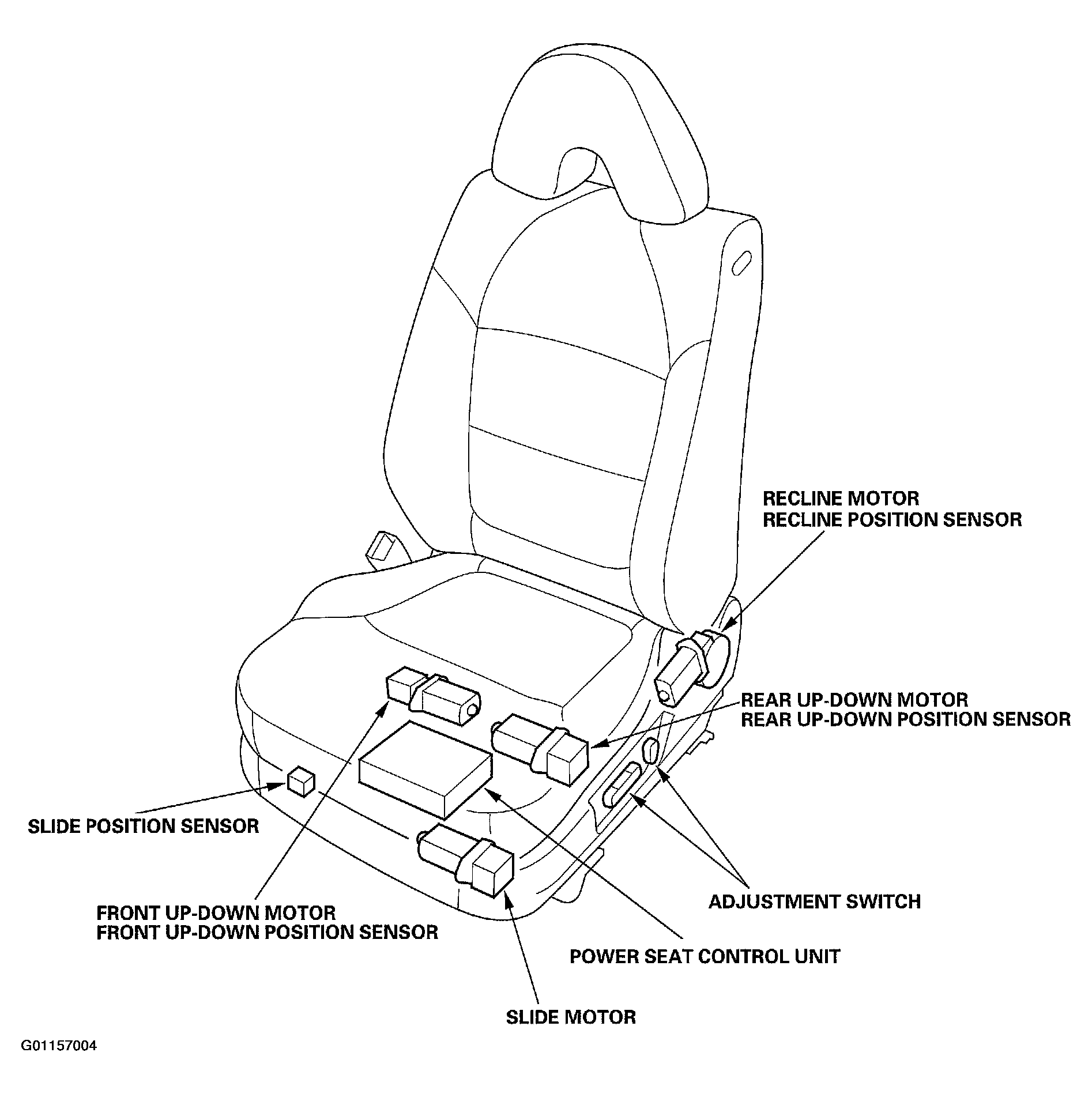

Fig 2: Locating Driving Position Memory System Components (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
