Driver's Power Seat Motor Test

Remove the driver's seat. See FRONT SEATS .
Disconnect the connector from each power seat connector.

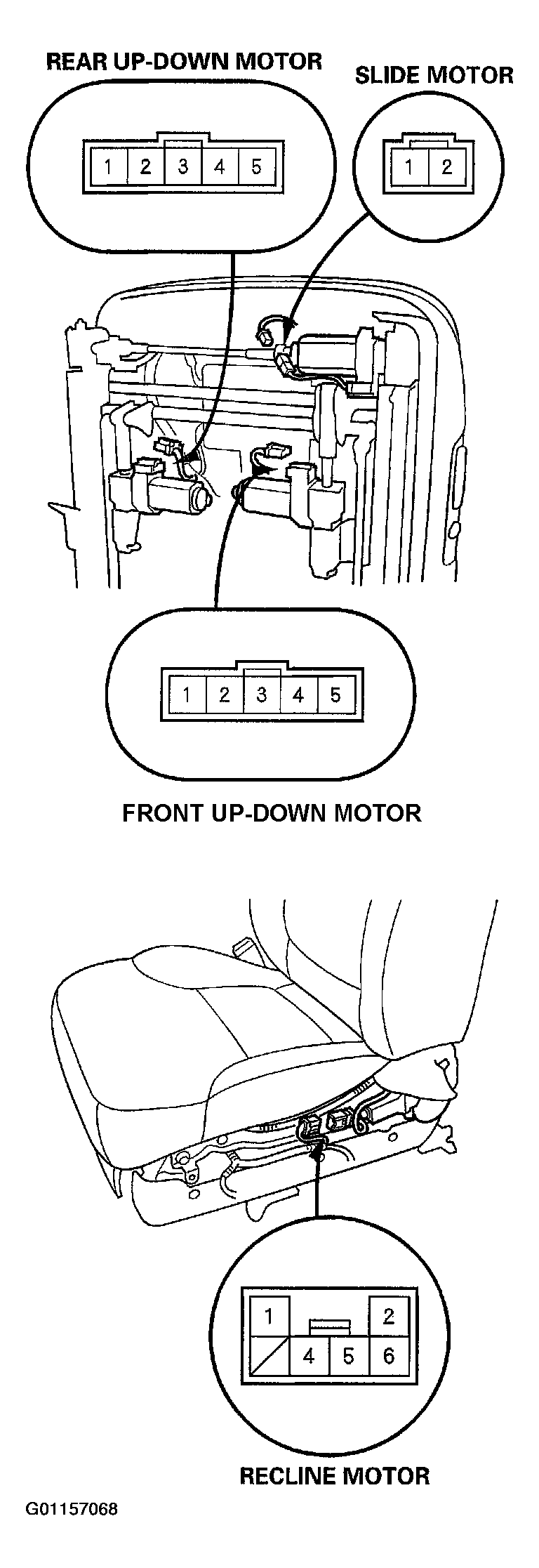

Fig 1: Identifying Driver's Power Seat Motor Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Test the motor by connecting power and ground according to the table. When the motor stops running, disconnect battery power immediately.

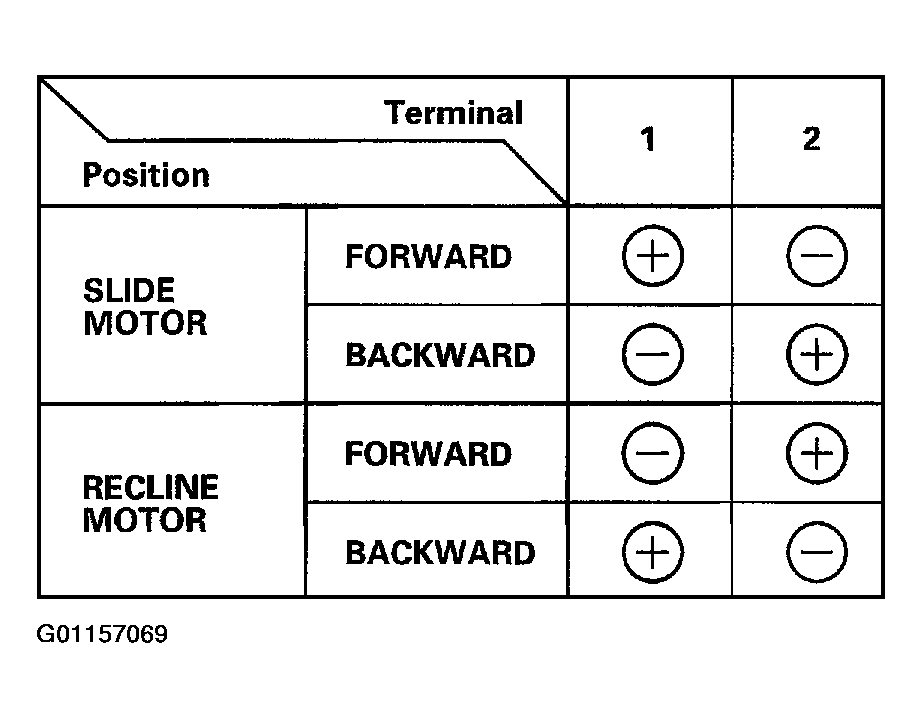

Fig 2: Slide/Recline Motor Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.

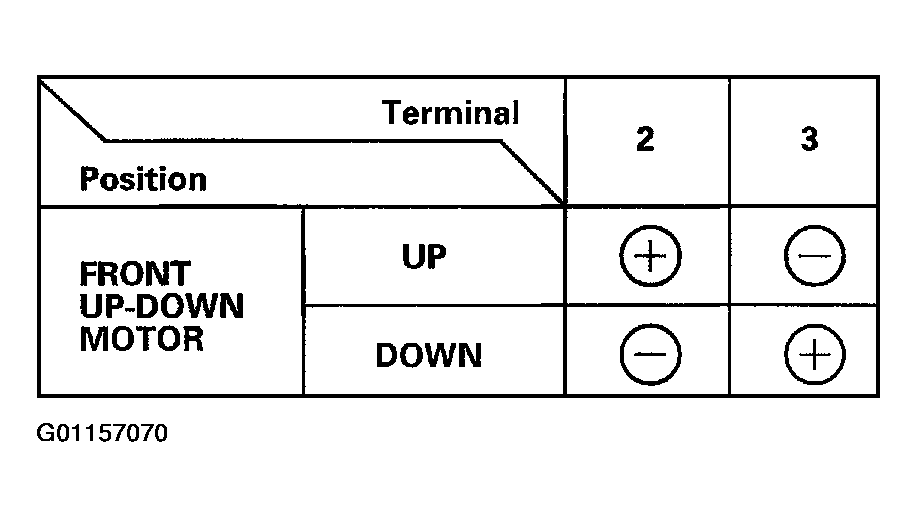

Fig 3: Front Up/Down Motor Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.

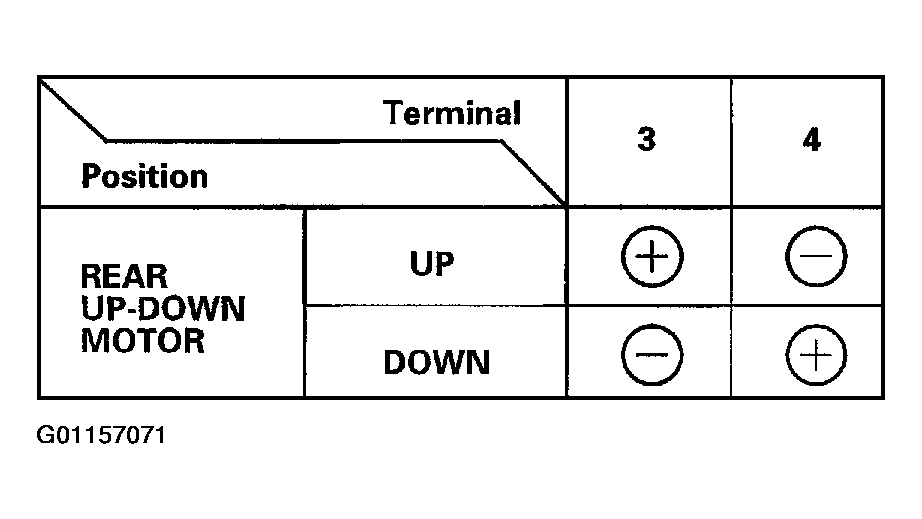

Fig 4: Rear Up/Down Motor Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the motor does not run or fails to run smoothly, replace it (see POWER HEATED SEATS ).
