Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Component Location
ABS/TCS Relay Box On right side of firewall. See Figure.

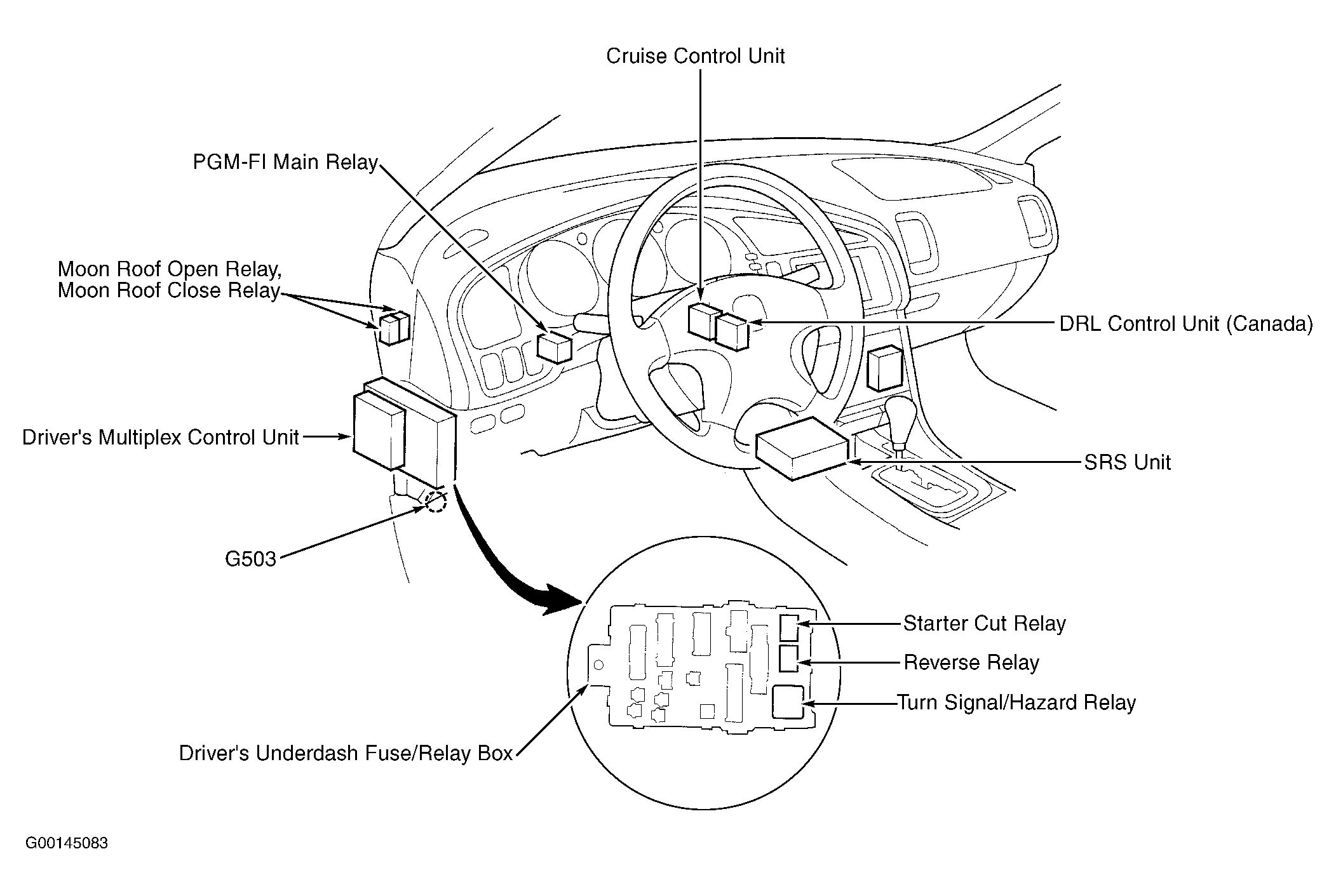

Driver's Underdash Fuse/Relay Box Behind left end of dash. See Figure.
DRL Diode On passenger's underdash fuse/relay box.

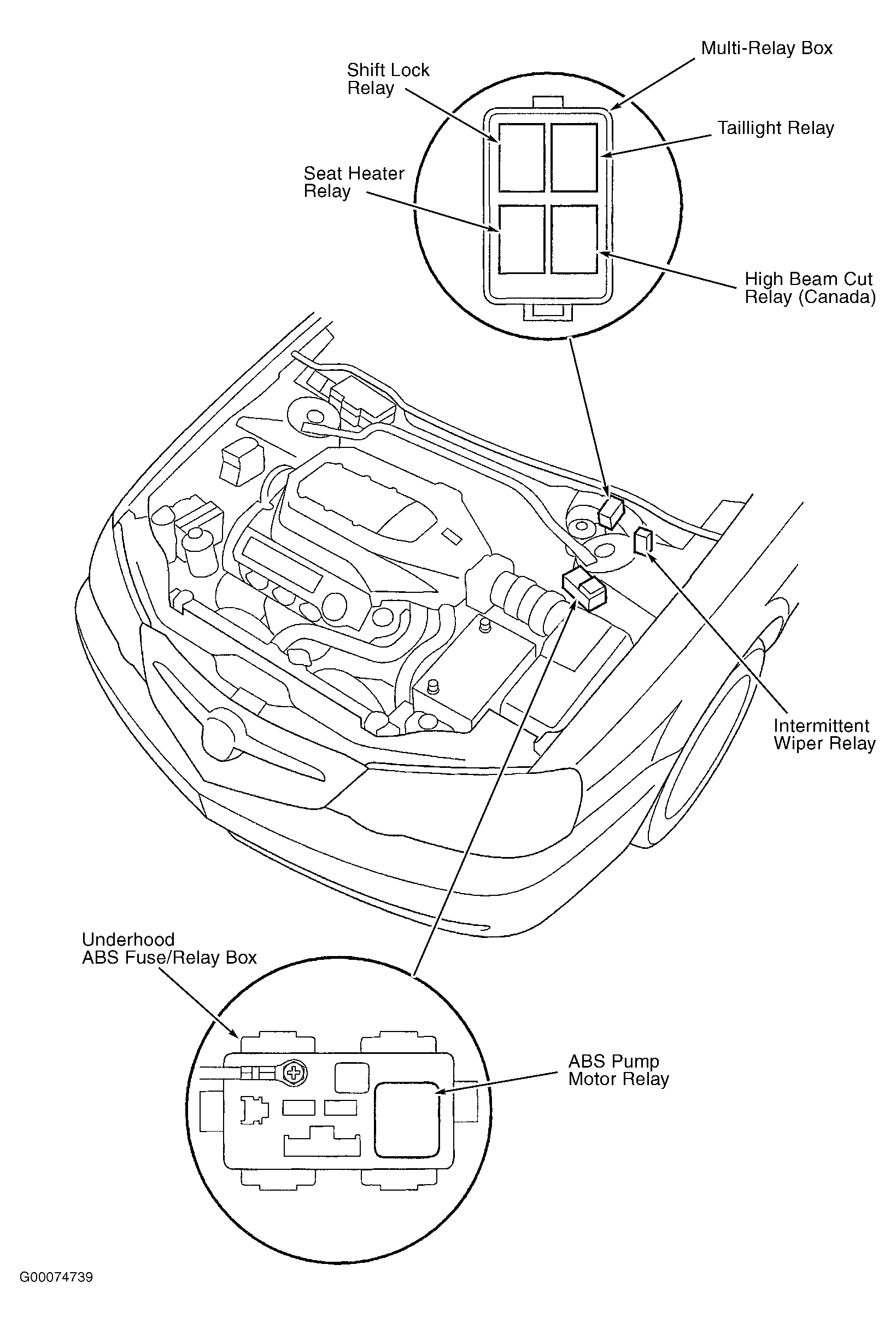

Multi-Relay Box On left side of firewall, behind master cylinder. See Figure.

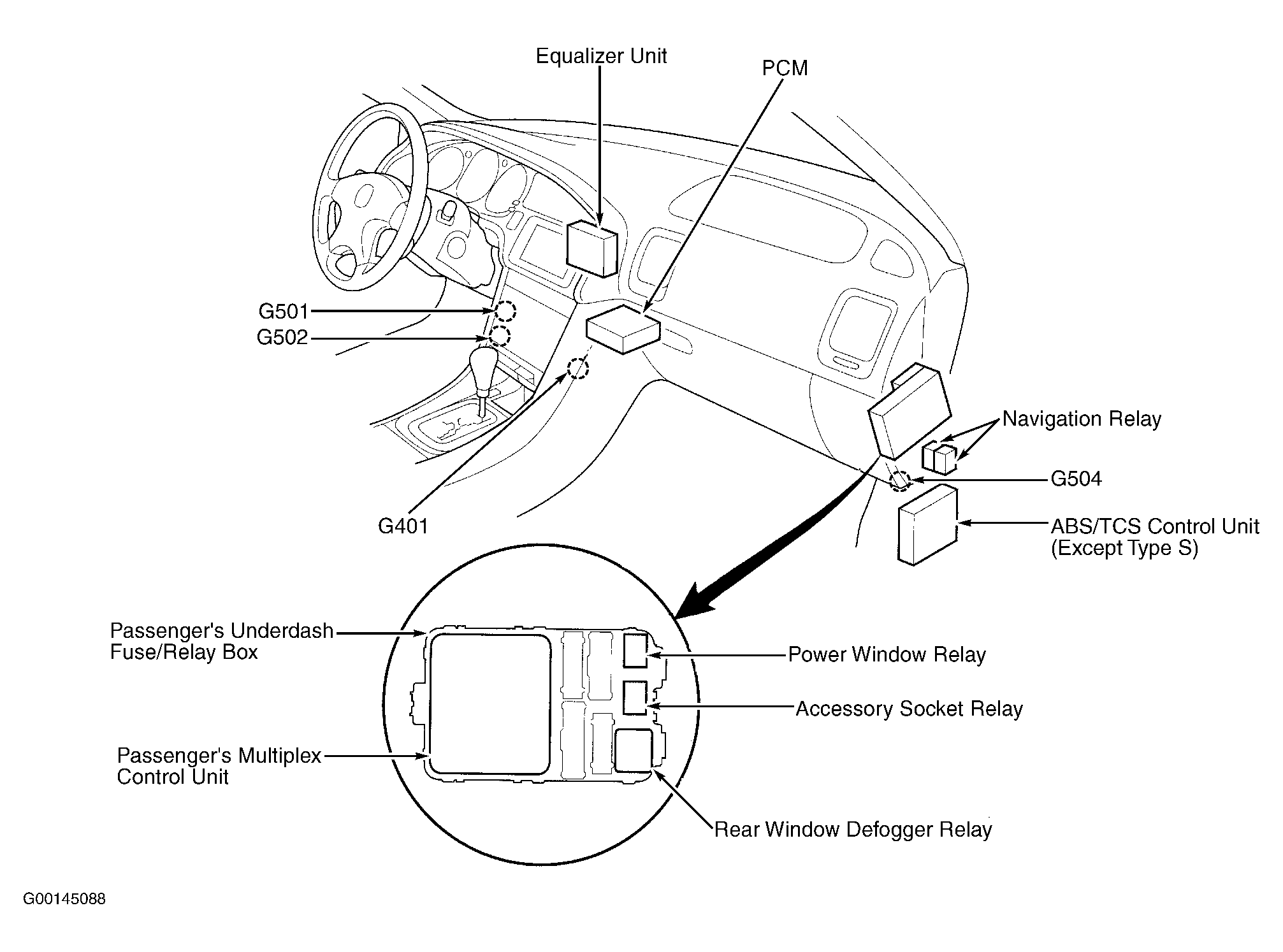

Passenger's Underdash Fuse/Relay Box Behind right end of dash. See Figure.
Underhood Fuse/Relay Box On right side of firewall. See Figure.
