Connector Identification

NOTE: PCM is located behind center console, to left of glove box. For connector identification, refer to illustrations. See Fig 1 and Fig 2 .

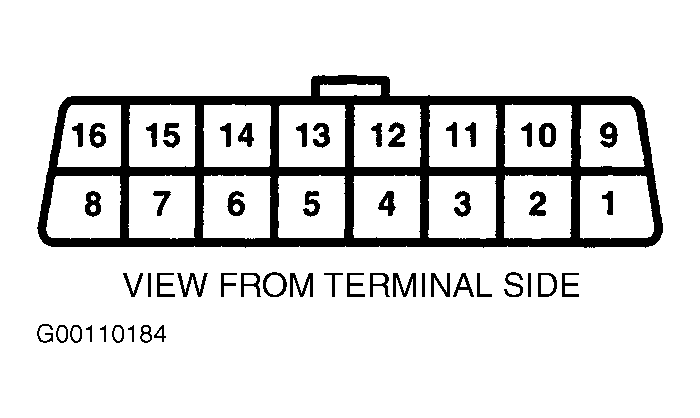

Fig 1: Identifying Data Link Connector (DLC) Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.

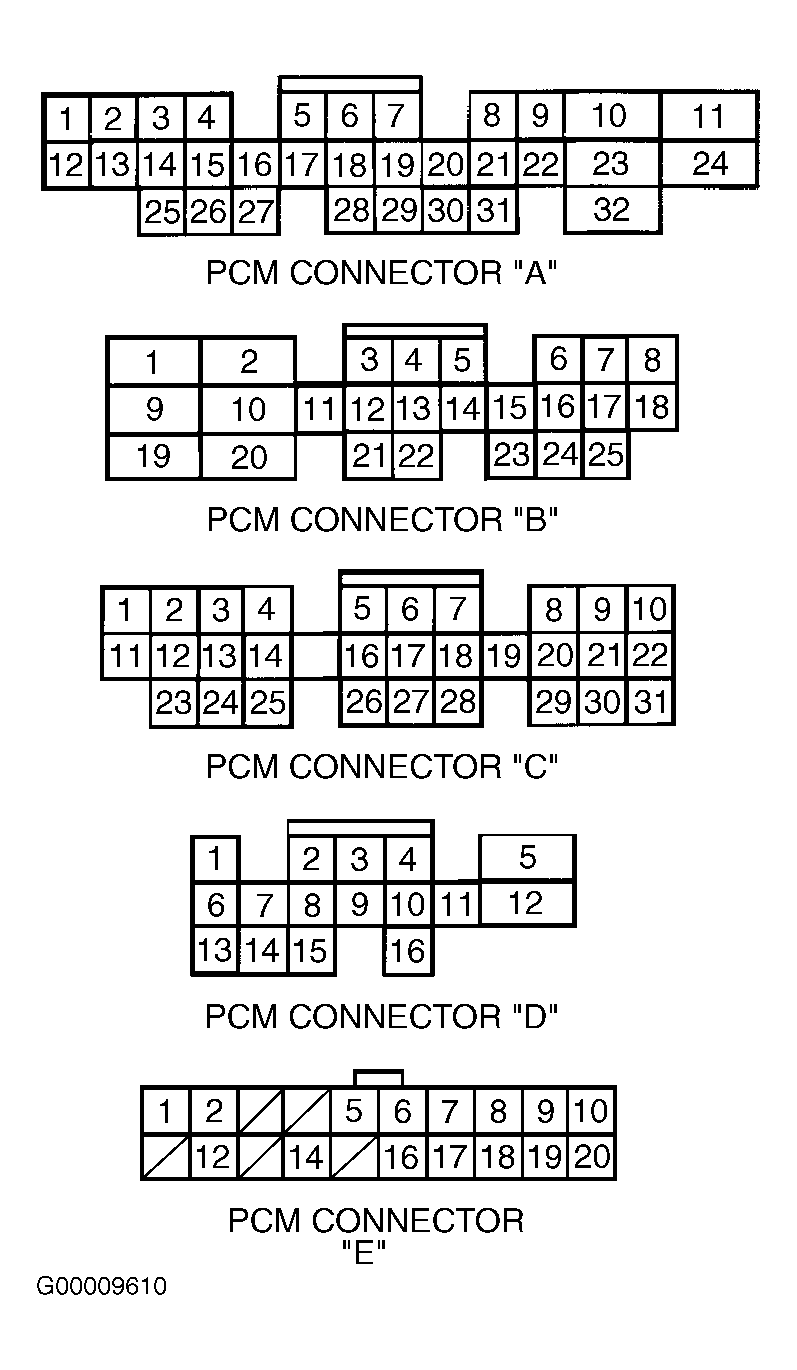

Fig 2: Identifying PCM Connectors & Terminals

Courtesy of AMERICAN HONDA MOTOR CO., INC.
