Component Location

For component locations, see Fig 1 .

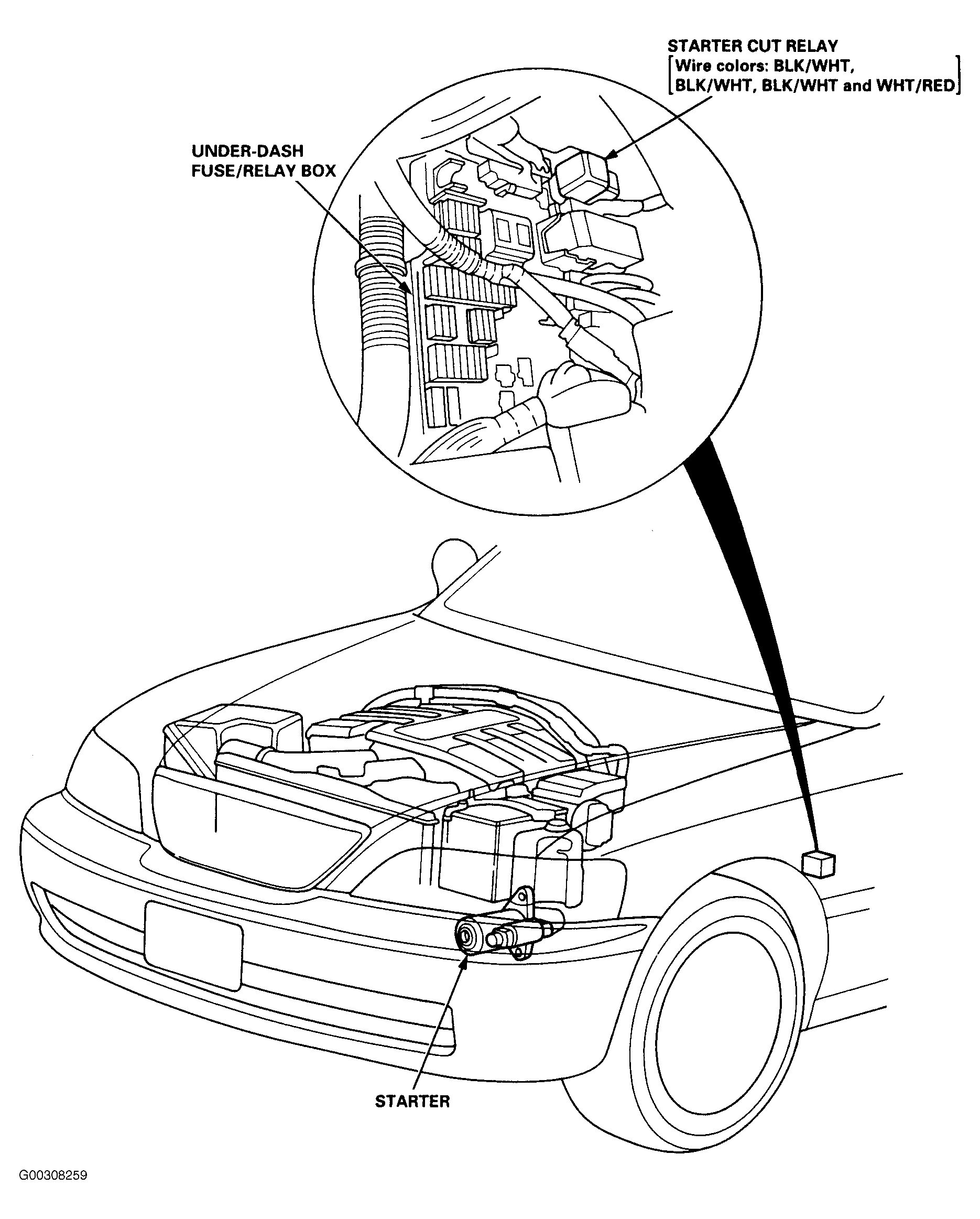

Fig 1: Identifying Component Locations
G00308259Courtesy of AMERICAN HONDA MOTOR CO., INC.
