Air Cleaner Element Replacement

  1. Open the air cleaner housing cover (A).

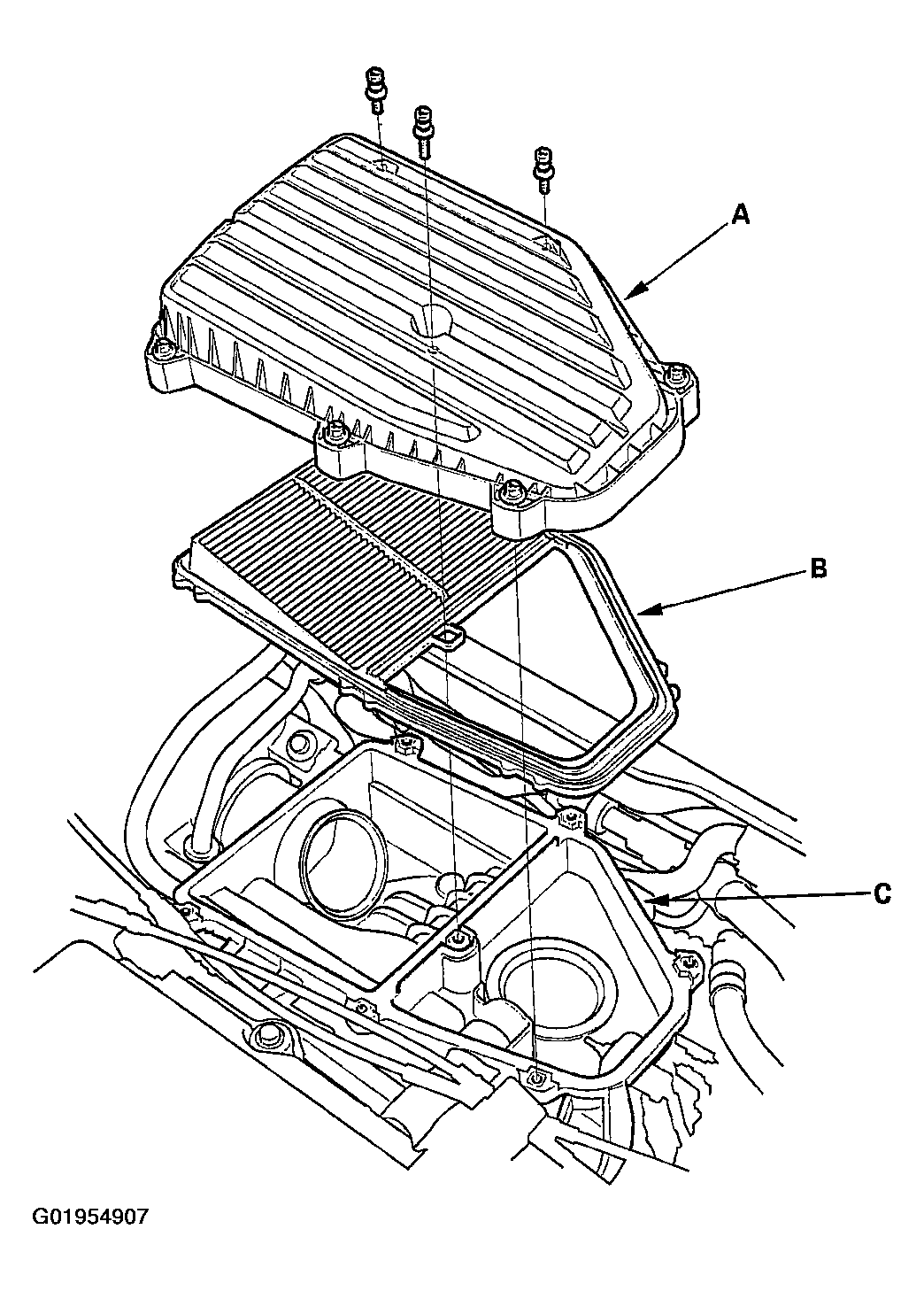

    Fig 1: Opening Air Cleaner Housing Cover
    G01954907
  2. Remove the air cleaner (B) from the air cleaner housing (C).
  3. Install the parts in the reverse order of removal.
