Component Location Index

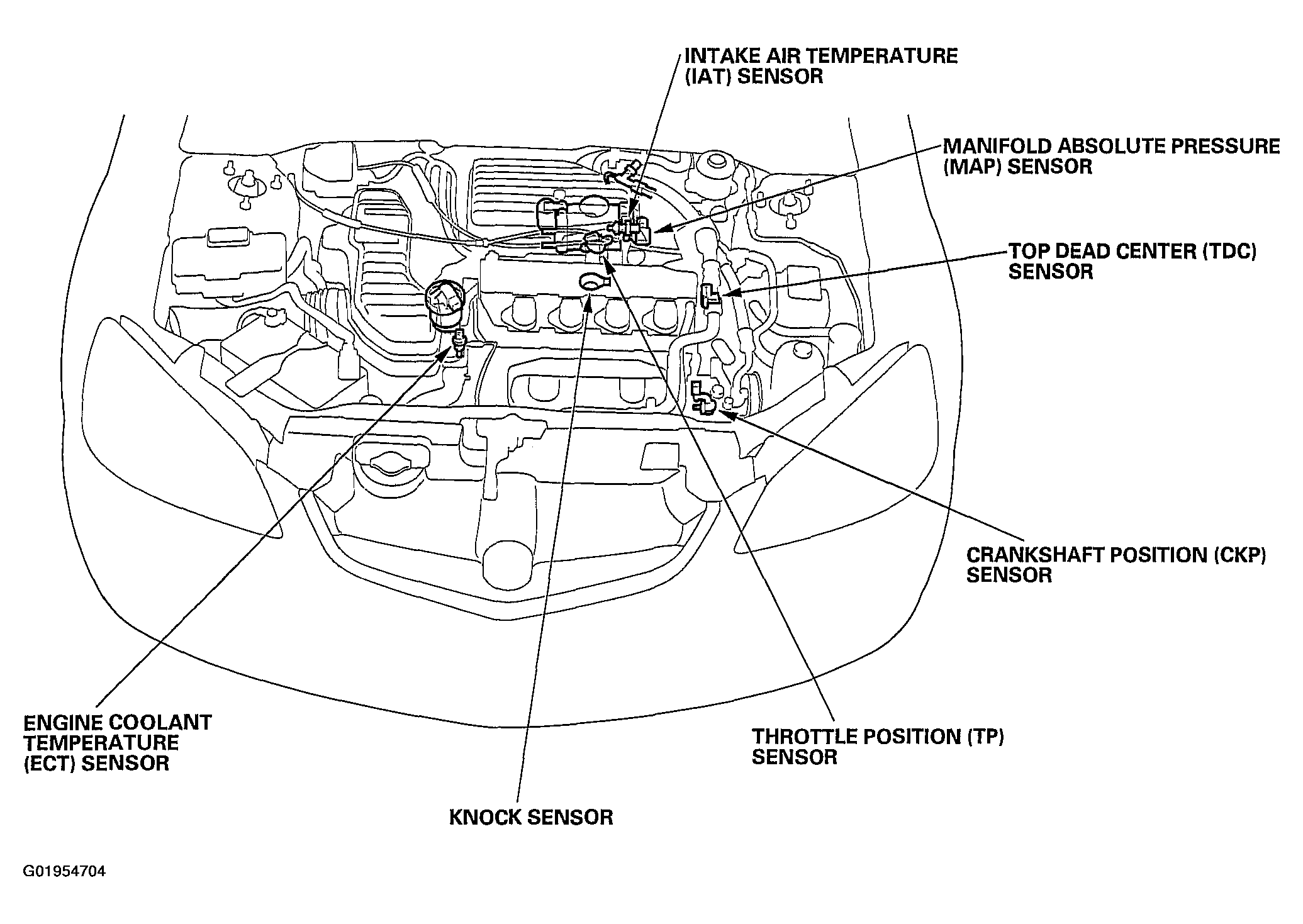

Fig 1: Locating PGM-FI System Components (1 Of 3)
G01954704
Fig 2: Locating PGM-FI System Components (2 Of 3)
G01954705

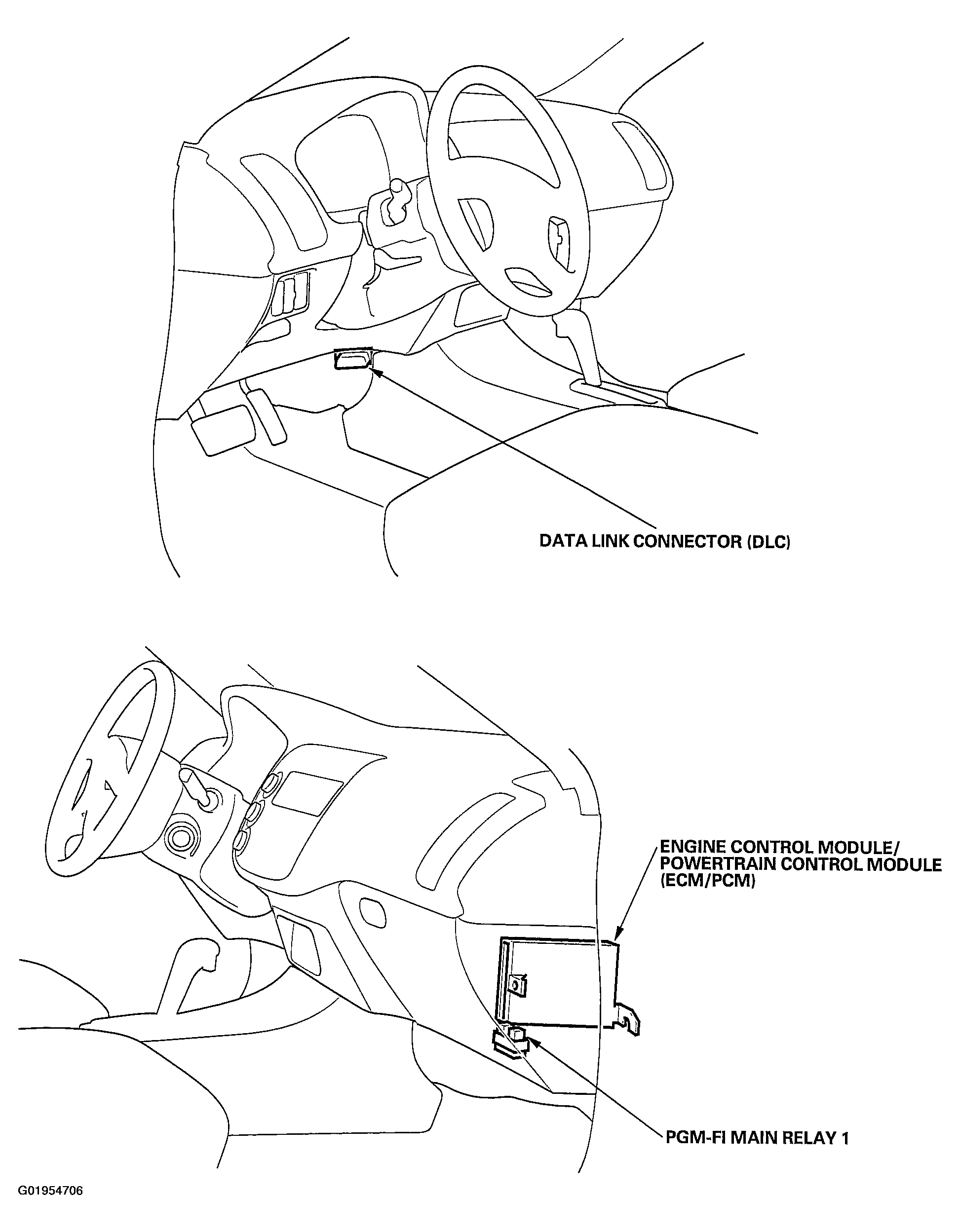

Fig 3: Locating PGM-FI System Components (3 Of 3)
G01954706
