Park Pin Switch Test

  1. Remove the center console panel and center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  2. Disconnect the park pin switch connector (4P).

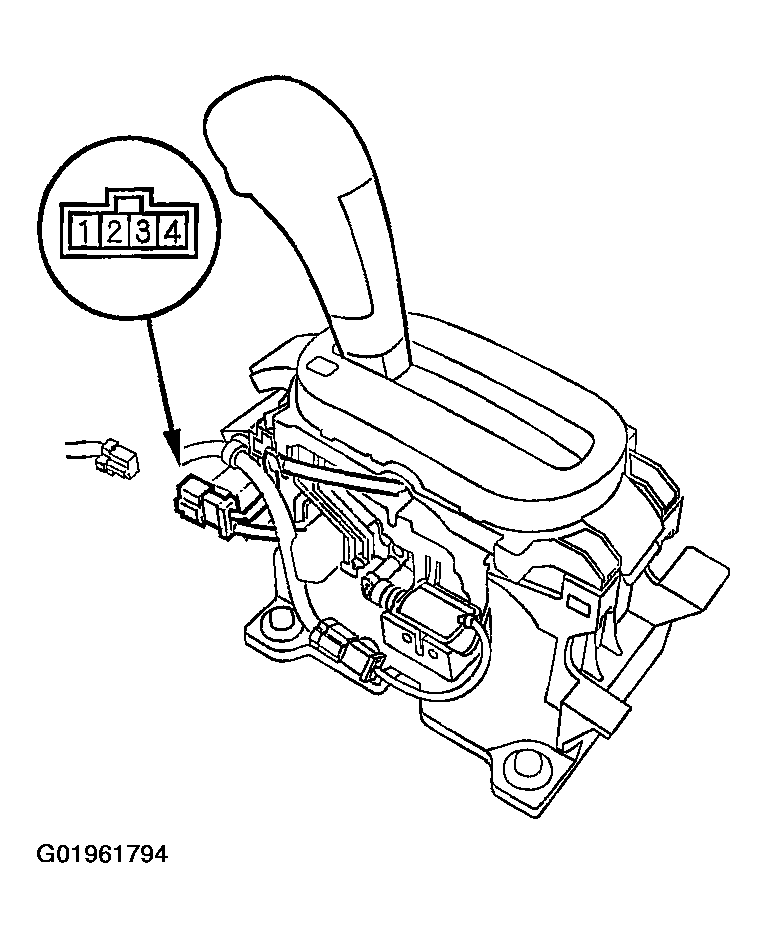

    Fig 1: Disconnecting Park Pin Switch Connector
    G01961794
  3. Shift to P position, then check for continuity between the No.3 and No. 4 terminals There should be no continuity.
  4. Shift out of P position, and check for continuity between terminals No. 3 and No. 4. There should be no continuity.
  5. If the park pin switch is faulty, replace it.
