Shift Lock Solenoid Test

  1. Remove the center console panel and center console (see CENTER CONSOLE REMOVAL/INSTALLATION ).
  2. Disconnect the shift lock solenoid connector (2P).

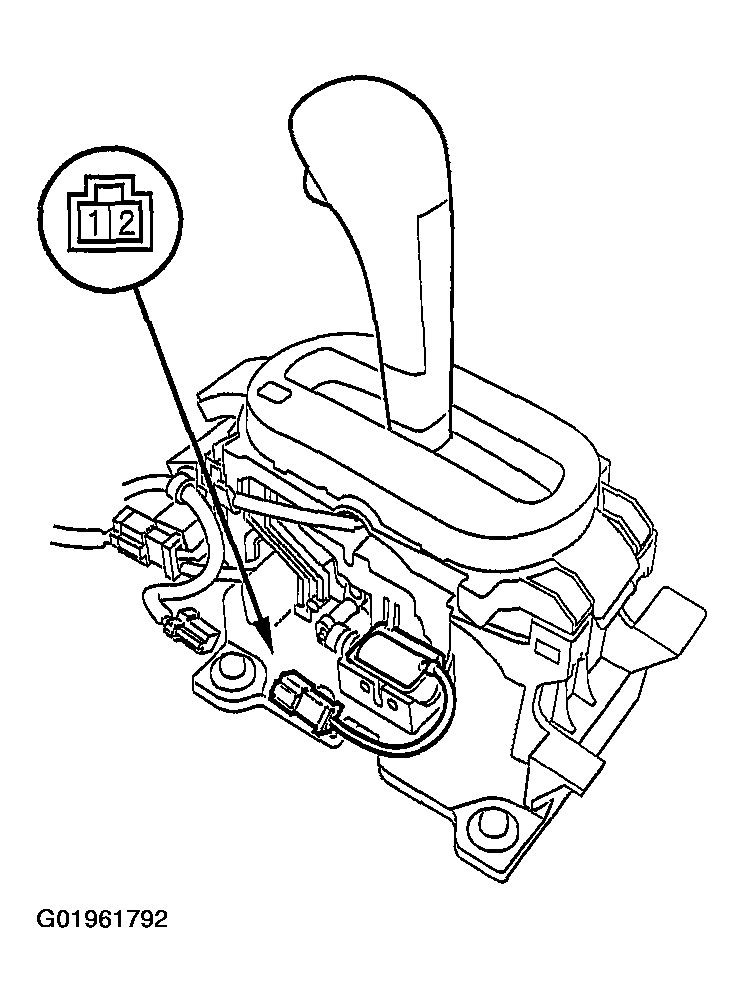

    Fig 1: Disconnecting Shift Lock Solenoid Connector
    G01961792
  3. Connect the No.1 terminal of the shift lock solenoid connector (2P) to the battery positive terminal, and connect the No. 2 terminal to the battery negative terminal.
  4. Check that the shift lever can be moved from the P position. Release the battery terminals from the shift lock solenoid connector. Move the shift lever back to the P position, and make sure it locks.
    NOTE: Do not connect power to the No. 2 terminal (reverse polarity) or you will damage the diode inside the solenoid.
  5. Check that the shift lock releases when the shift lock release is pushed, and check that it locks when the shift lock release is released.
  6. If the shift lock solenoid does not work properly, replace it.
