Main Switch Test/Replacement

Carefully pry the switch (A) out of the instrument panel.

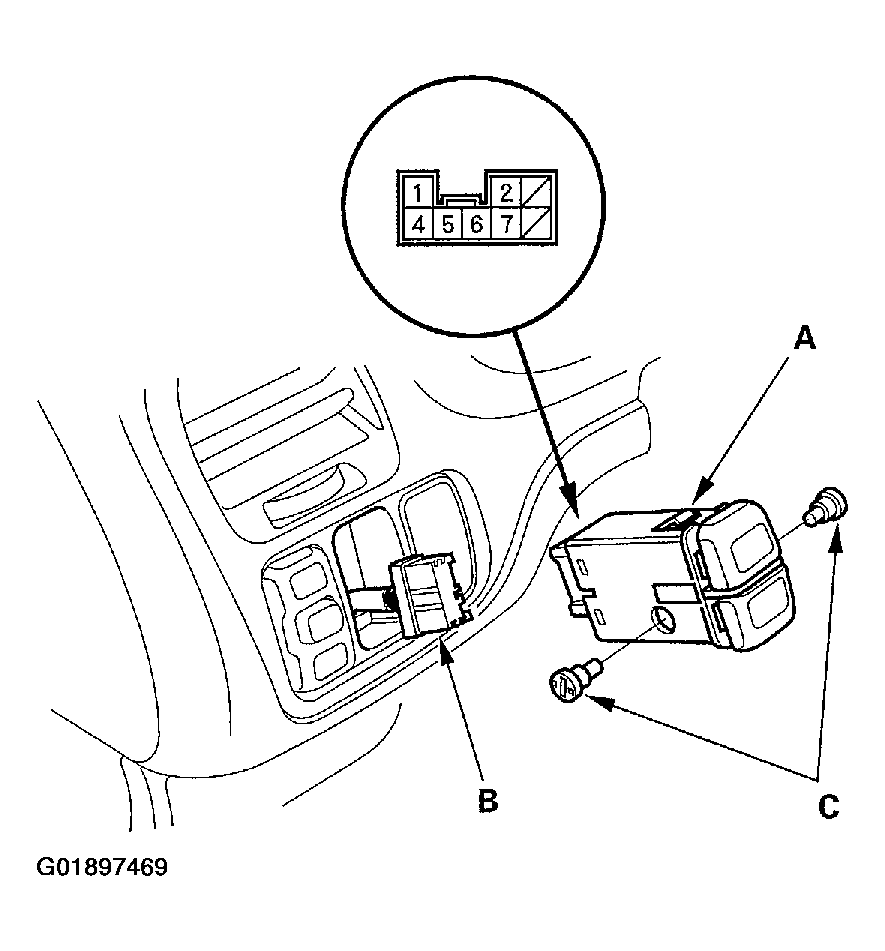

Fig 1: Prying The Switch Out Of The Instrument Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the 8P connector (B) from the switch.
Check for continuity between the terminals in each switch position according to the table. If there is no continuity, replace the bulbs (C) or the switch.

Fig 2: Main Switch Test Table

Courtesy of AMERICAN HONDA MOTOR CO., INC.
