Dashboard Lower Cover Removal/Installation
SRS components are located in this area. Review the SRS component locations and precautions and procedures in the SRS section before performing repairs or service. See AIR BAG RESTRAINT SYSTEMS.
NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts to prevent damage.
- Take care not to scratch the dashboard and related parts.
- While pulling out on the bottom of the left dashboard side cover (A), pry the rear edge portions (B) of the cover to detach the clips (C). Release the hook (D), then remove the cover.

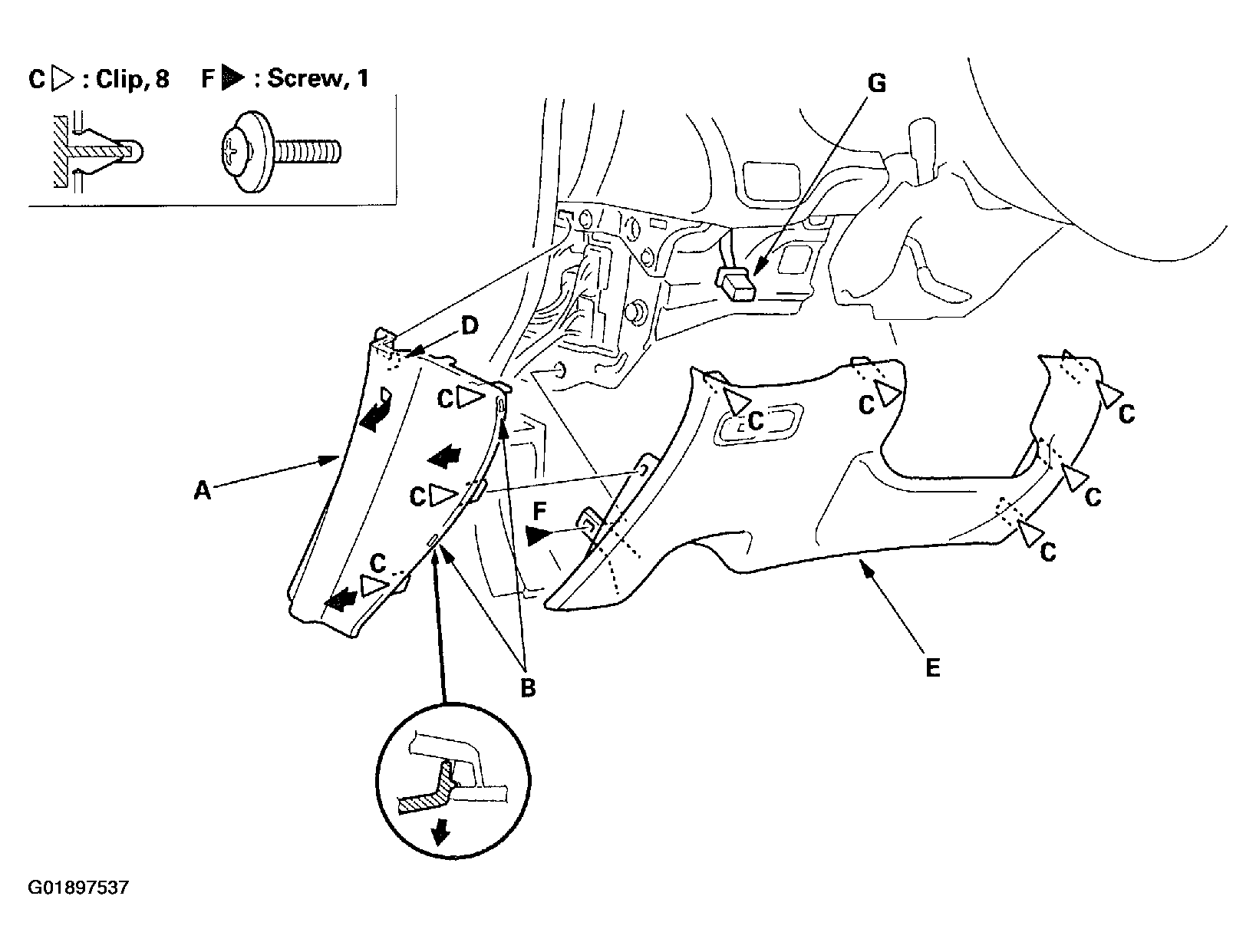

Fastener Locations
- Remove the dashboard lower cover (E).
- Remove the screw (F).
- Gently pull down on the lower cover to release the right clip (C), then detach the remaining clips (C).
- Disconnect the dash lights brightness controller connector (G), and remove the cover.
- Install the dashboard lower cover in the reverse order of removal, and note these items:
- Replace any damaged clips.
- Make sure the connector is plugged in properly.
- Push the clips of the cover into place securely.
