Master Switch Test ('03 model)

  1. Remove the power window master switch.

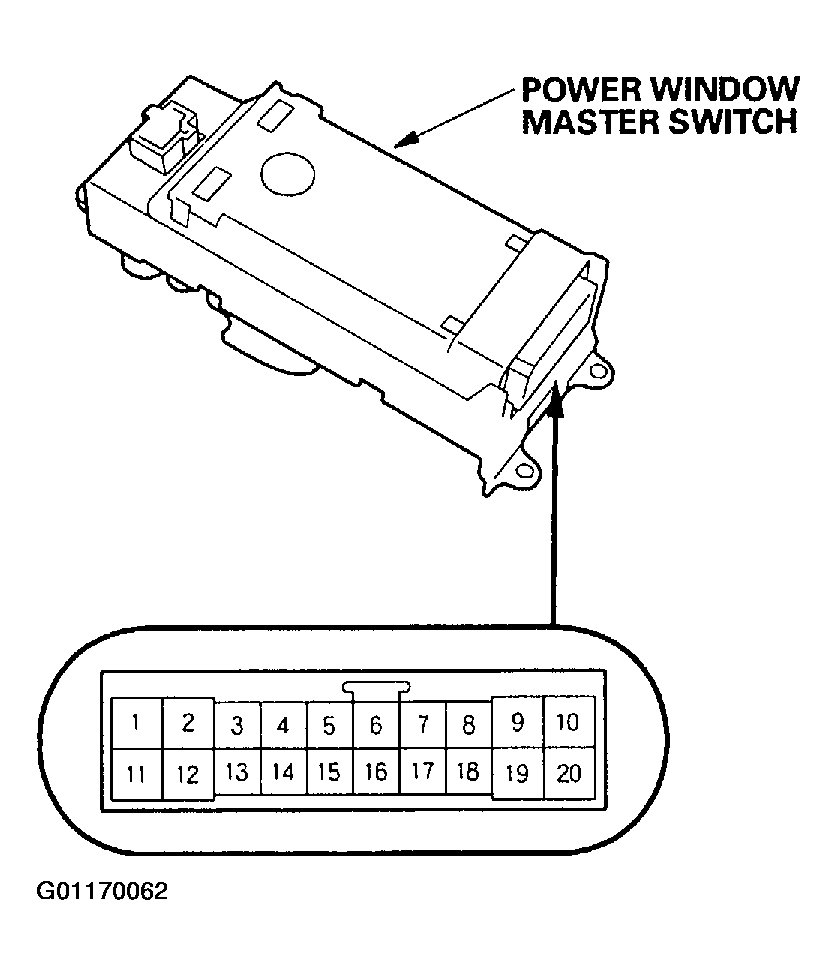

    Fig 1: Removing The Power Window Master Switch
    G01170062Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Check for continuity between the terminals in each switch position according to the tables.

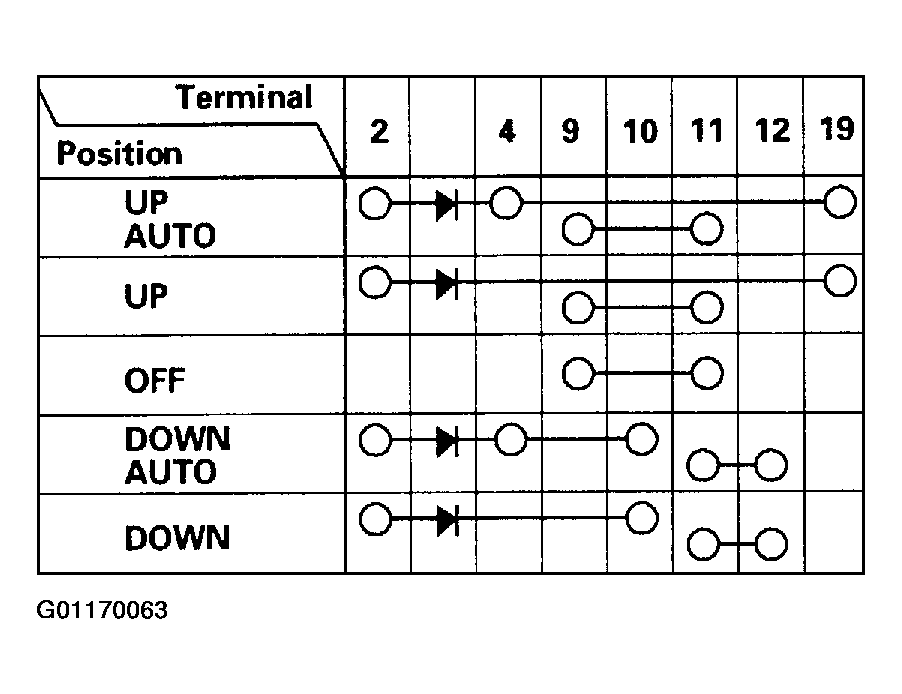

    Fig 2: Master Switch Test (Driver's Window Switch)
    G01170063Courtesy of AMERICAN HONDA MOTOR CO., INC.

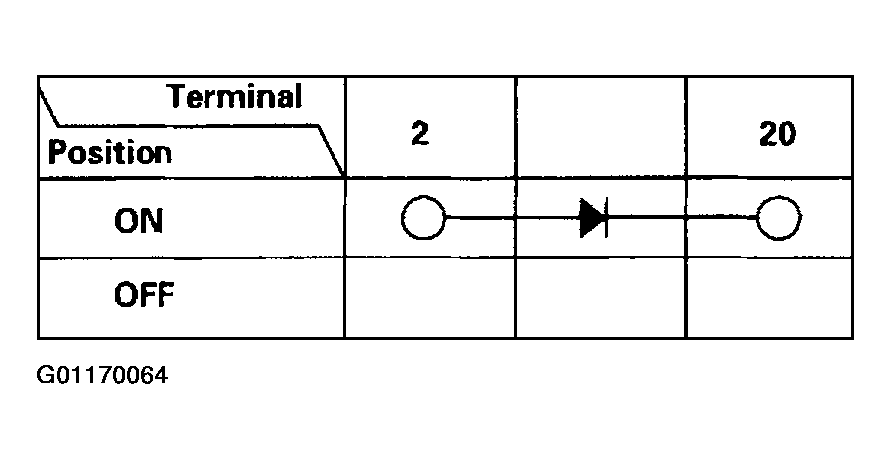

    Fig 3: Master Switch Test (Main Switch)
    G01170064Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. If the continuity is not as specified, replace the power window master switch.
