Passenger's Window Switch Test/Replacement

Remove the passenger's door panel .
Remove the screws and passenger's switch assembly.

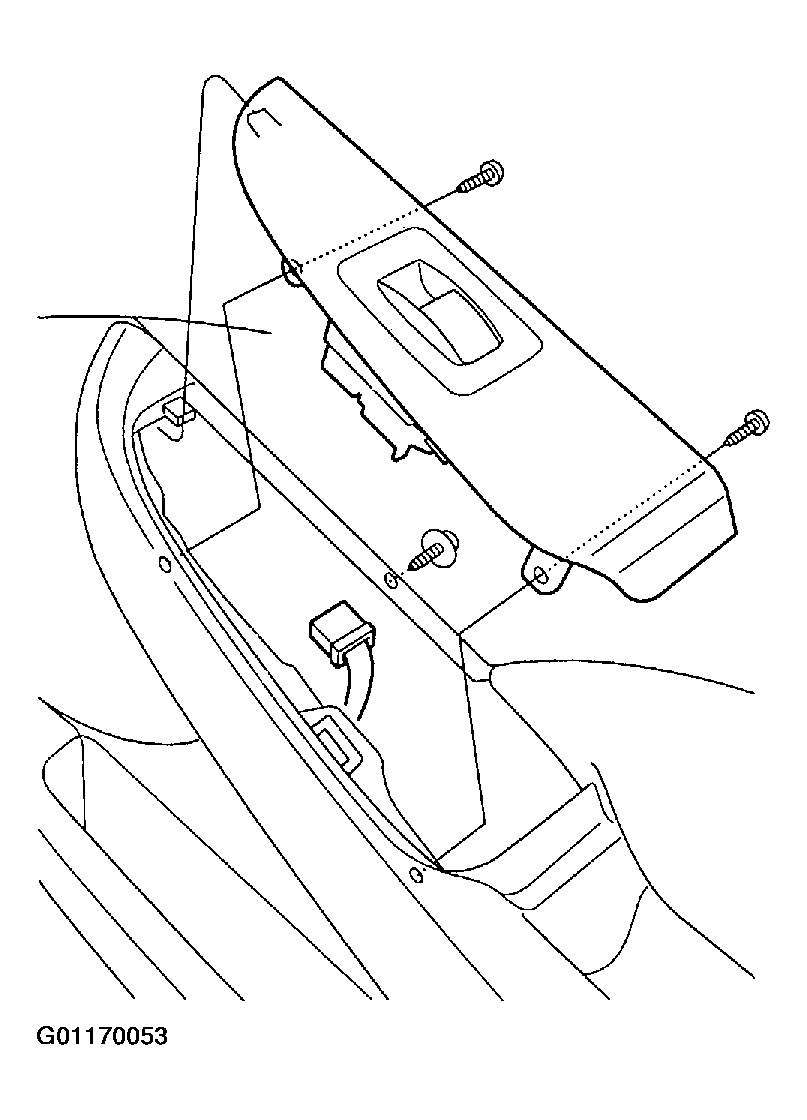

Fig 1: Removing The Passenger's Switch Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the five mounting screws, then remove the passenger's switch (A) from the panel (B).

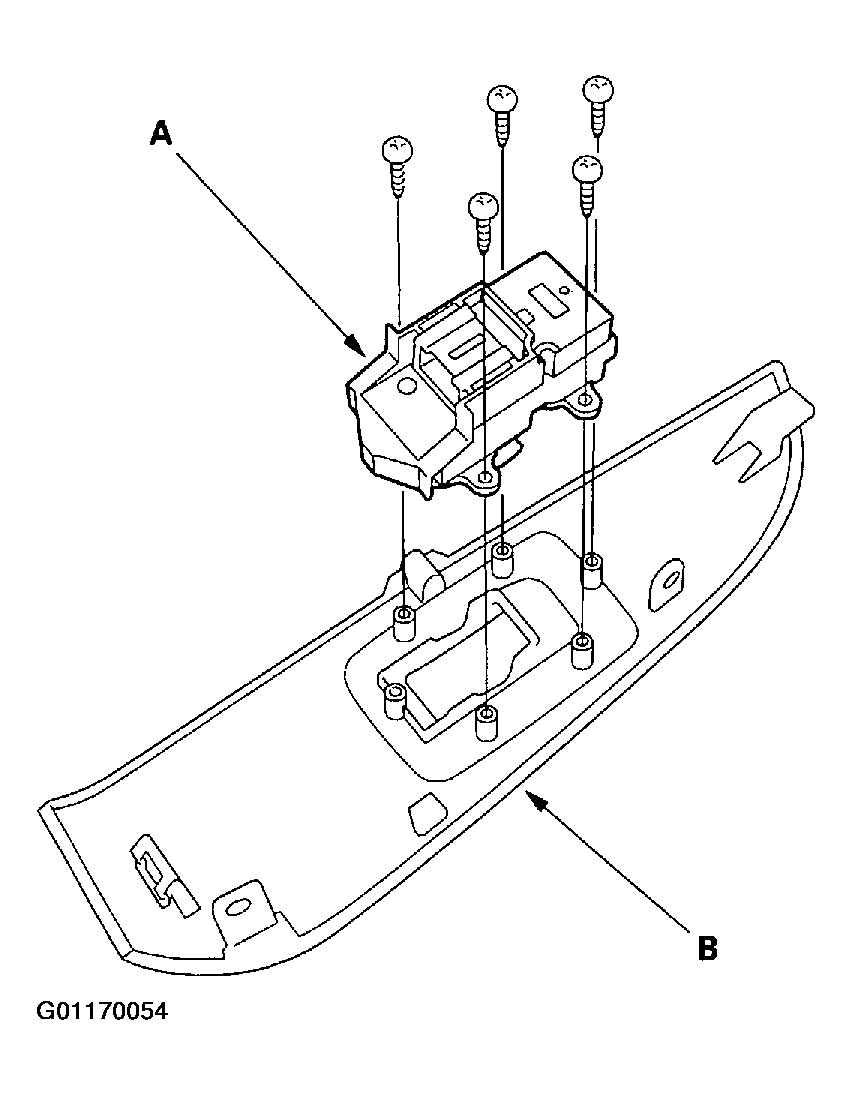

Fig 2: Removing The Passenger's Switch From The Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the test.

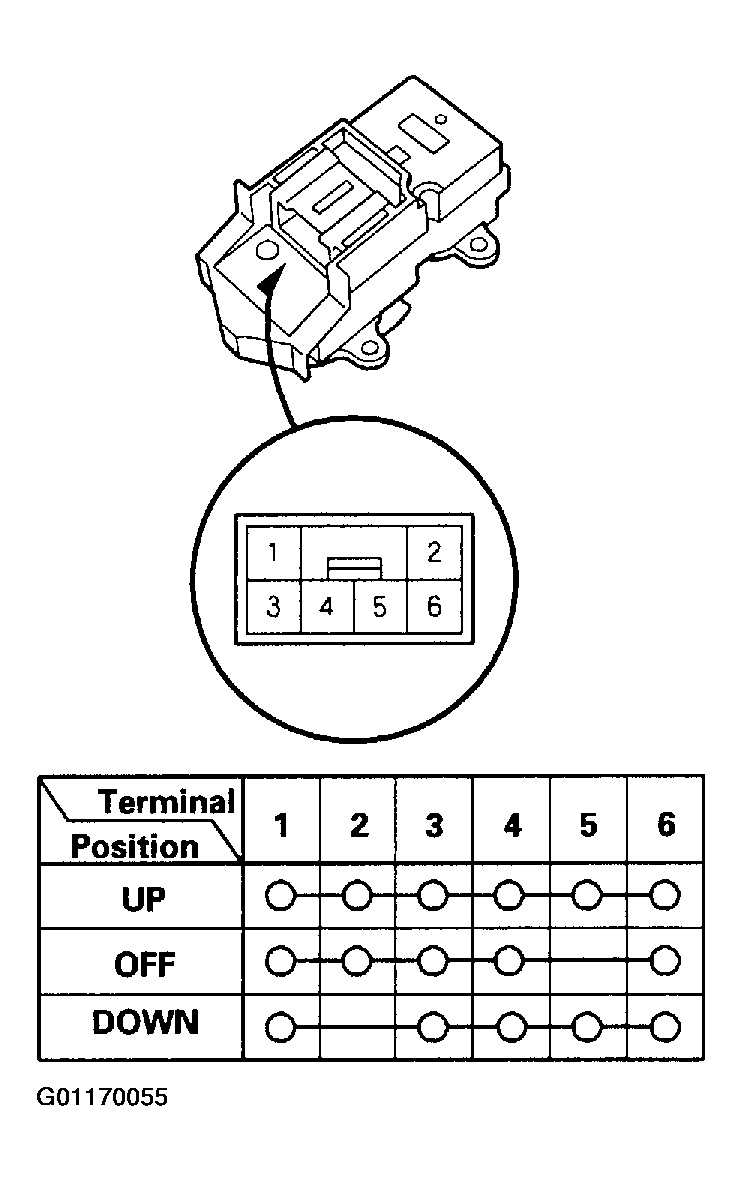

Fig 3: Passenger's Window Switch Continuity Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch.
