Modulator-Control Unit: Removal

Push the modulator unit connector lock, and turn the connector lever. See Fig 1 . Disconnect the modulator unit connector. Disconnect the brake lines, then remove the modulator unit.

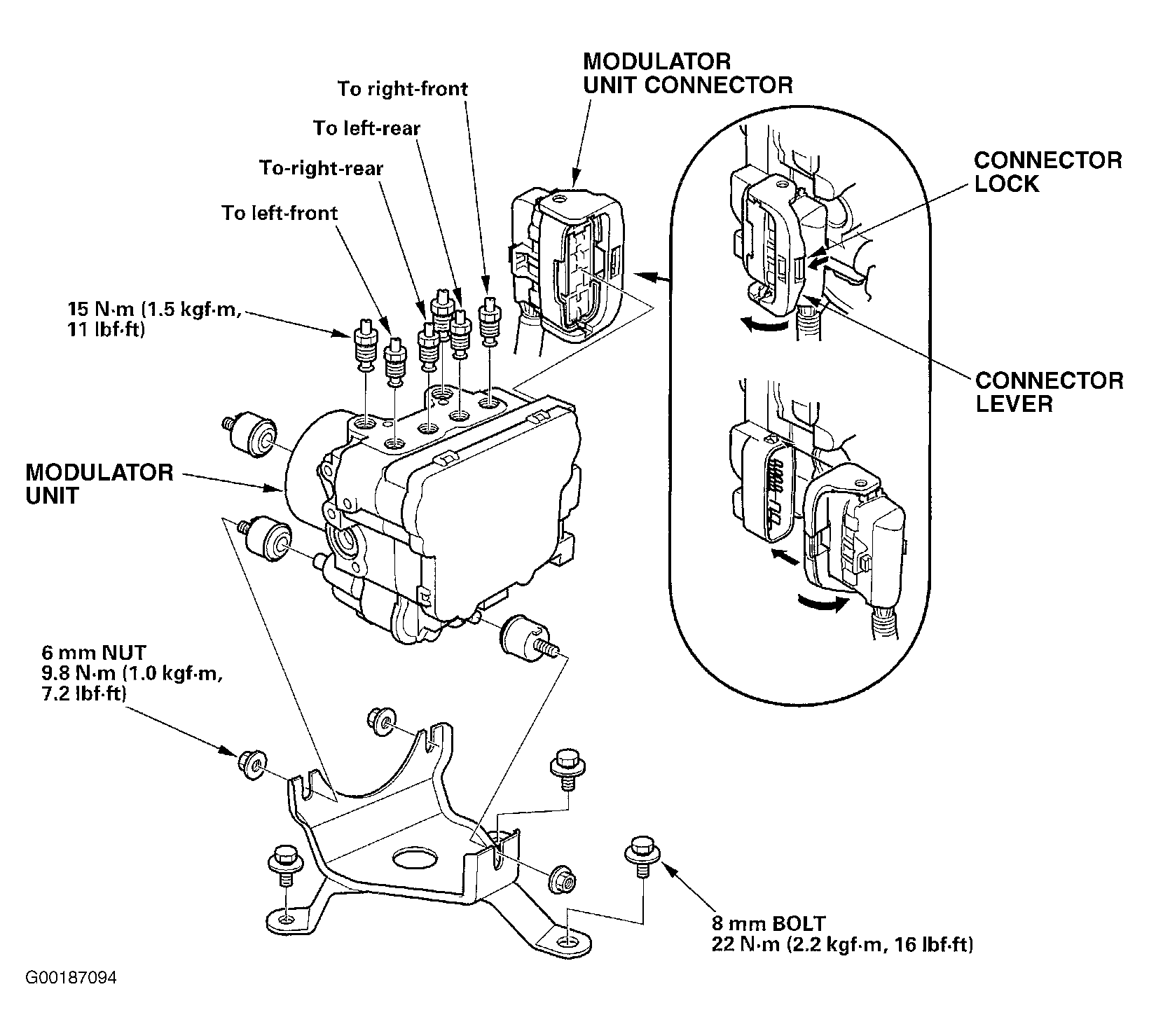

Fig 1: Exploded View Of Modulator Unit

Courtesy of AMERICAN HONDA MOTOR CO., INC.
