Charging System Indicator Test

For charging indicator test, see Fig 1.

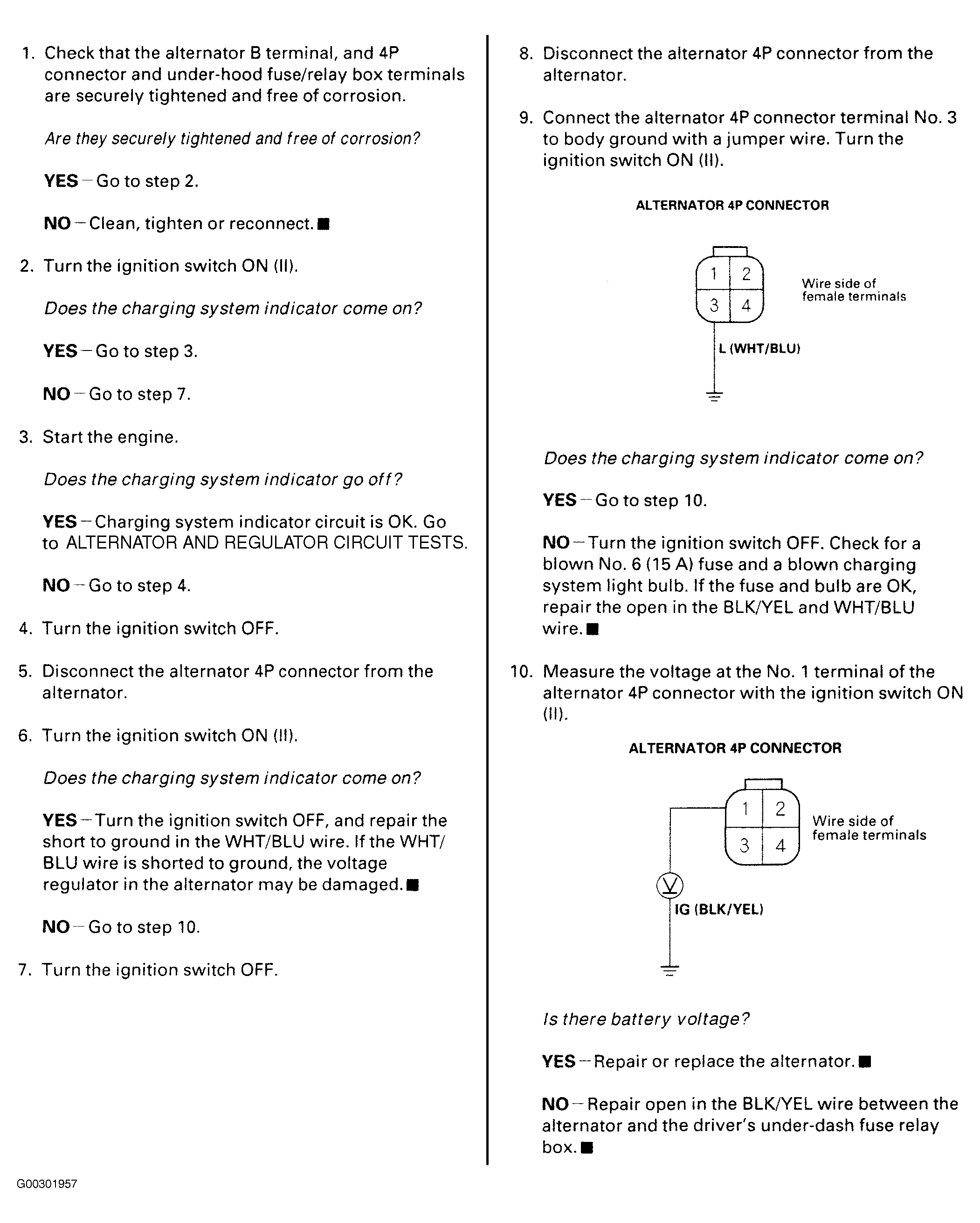

Fig 1: Charging System Indicator Test
G00301957Courtesy of AMERICAN HONDA MOTOR CO., INC.
