Brush Holder Test

  1. Using an ohmmeter, check continuity between positive and negative brush holders (brackets). See Fig 1 . Continuity should not exist. If continuity exists, brush holder assembly is shorted and must be replaced.
  2. Measure brush length. If it is not within the service limit,replace the brush holder assembly. See Fig 2 .

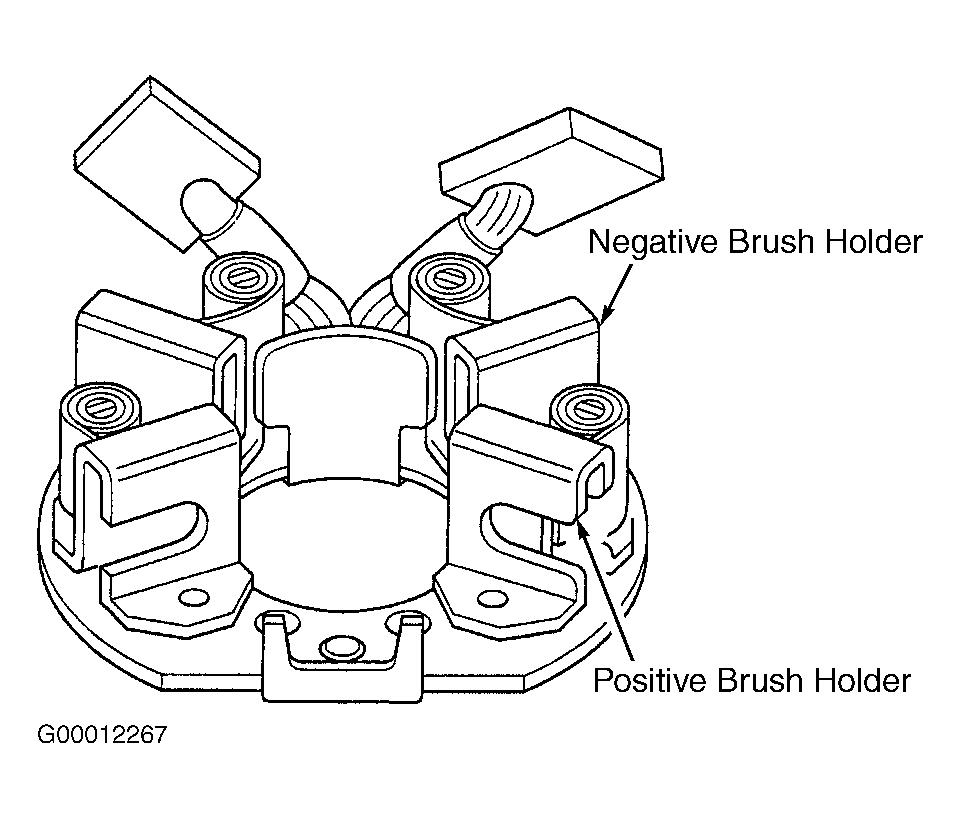

Fig 1: Identifying Brush Holders
G00012267Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Inspecting Starter Brushes
G00308255Courtesy of AMERICAN HONDA MOTOR CO., INC.
