Pin Voltage Tests

CAUTION: On MDX, the PCM overwrites data and monitors the EVAP system for up to 60 minutes after the ignition is turned off. Jumping the SCS line after turning ignition off cancels this function. Disconnecting the PCM during this function, without jumping the SCS line first, can damage the PCM. When removing/installing PCM or disconnecting PCM connectors, steps  13 must be followed to protect the powertrain control module (PCM) from damage, or wait at least 60 minutes before disconnecting. See the following:
  1. With ignition on, connect the Honda PGM Tester or the HDS to the data link connector (DLC), and go into any of the live data screens.
  2. Turn ignition off.
  3. Turn the Honda PGM Tester off or close the HDS and then back on. Go to the SCS mode and follow the screens to ground the 16-pin DLC.
CAUTION: When battery is disconnected, vehicle computer and memory systems may lose memory data. Driveability problems may exist until computer systems have completed a relearn cycle. See COMPUTER RELEARN PROCEDURES article in GENERAL INFORMATION before disconnecting battery.
CAUTION: Before disconnecting battery, obtain anti-theft code and note presets for radio. After battery is reconnected, CODE will appear on radio display. Enter 5-digit anti-theft code using select buttons and radio will begin working. If code is entered wrong 3 times, leave radio on at least one hour and enter code correctly. Any time radio power is lost, pre-selected radio stations will have to be reset. For more information, see owner's manual.
NOTE: Unless stated otherwise in testing procedures, perform all voltage tests using a Digital Volt-Ohmmeter (DVOM) with a minimum 10-megohm input impedance. Carefully backprobe PCM harness connector using Backprobe Set (07SAZ-001000A) to avoid connector damage. Voltage readings may vary slightly due to battery condition or charging rate.
NOTE: PCM may also be referred to as ECM. Generator may also be referred to as alternator.

Pin voltage charts are supplied to reduce diagnostic time. Checking pin voltages at the PCM connector determines whether PCM is receiving and transmitting proper voltage signals. Diagnostic charts may also help determine if PCM harness is shorted or open. See Fig 1 -Fig 24 .

Fig 1: Identifying 31-Pin Connector "A" Terminals & Pin Voltages (RSX - 1 Of 5)
G00070972Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Identifying 24-Pin Connector "B" Terminals & Pin Voltages (RSX - 2 Of 5)
G00070973Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 3: Identifying 22-Pin Connector "C" Terminals & Pin Voltages (RSX - 3 Of 5)
G00070974Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 4: Identifying 17-Pin Connector "D" Terminals & Pin Voltages (RSX - 4 Of 5)
G00070975Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 5: Identifying 31-Pin Connector "E" Terminals & Pin Voltages (RSX - 5 Of 5)
G00070976Courtesy of AMERICAN HONDA MOTOR CO., INC.

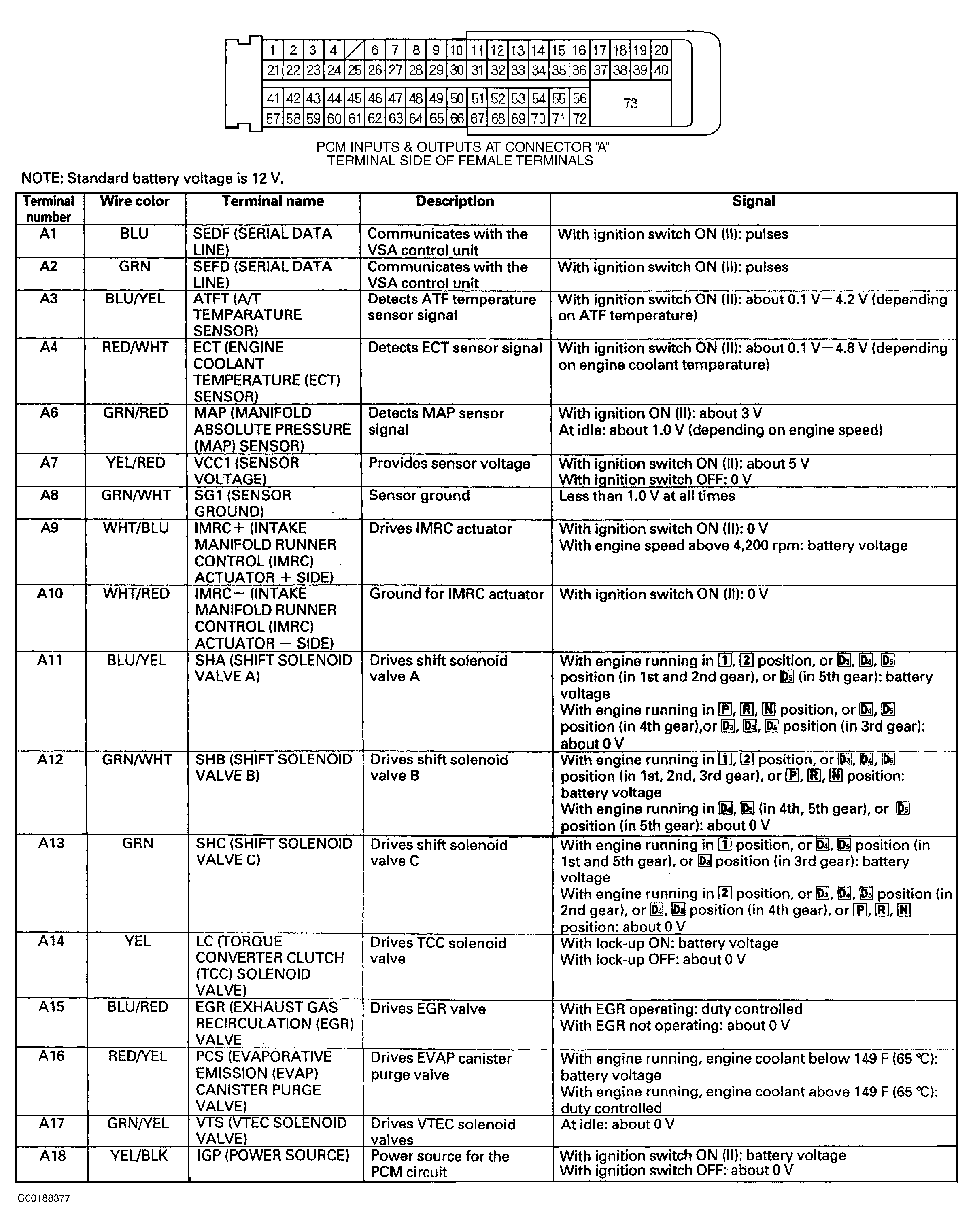

Fig 6: Identifying 73-Pin Connector "A" Terminals & Pin Voltages (MDX - 1 Of 5)
G00188377Courtesy of AMERICAN HONDA MOTOR CO., INC.

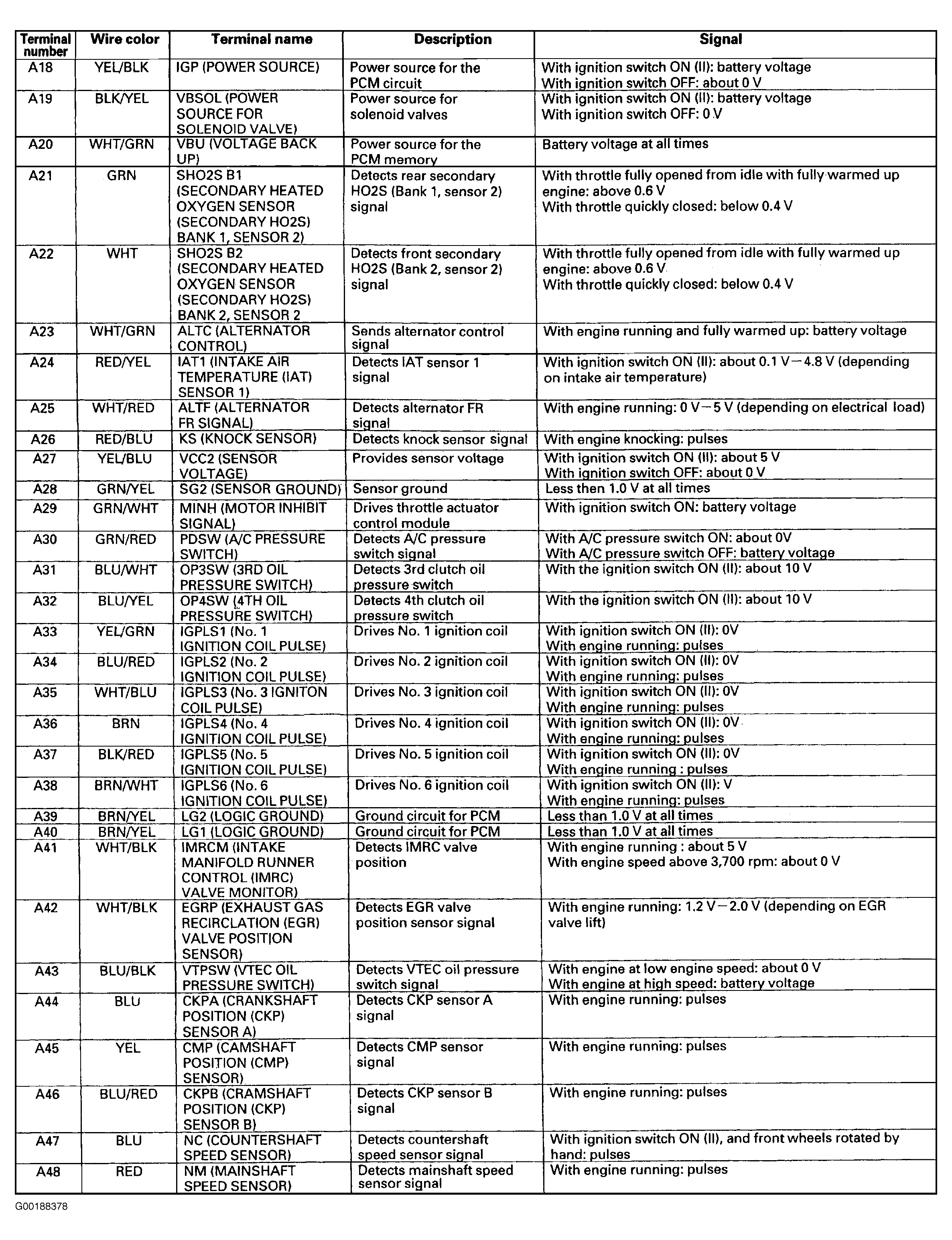

Fig 7: Identifying 73-Pin Connector "A" Terminals & Pin Voltages (MDX - 2 Of 5)
G00188378Courtesy of AMERICAN HONDA MOTOR CO., INC.

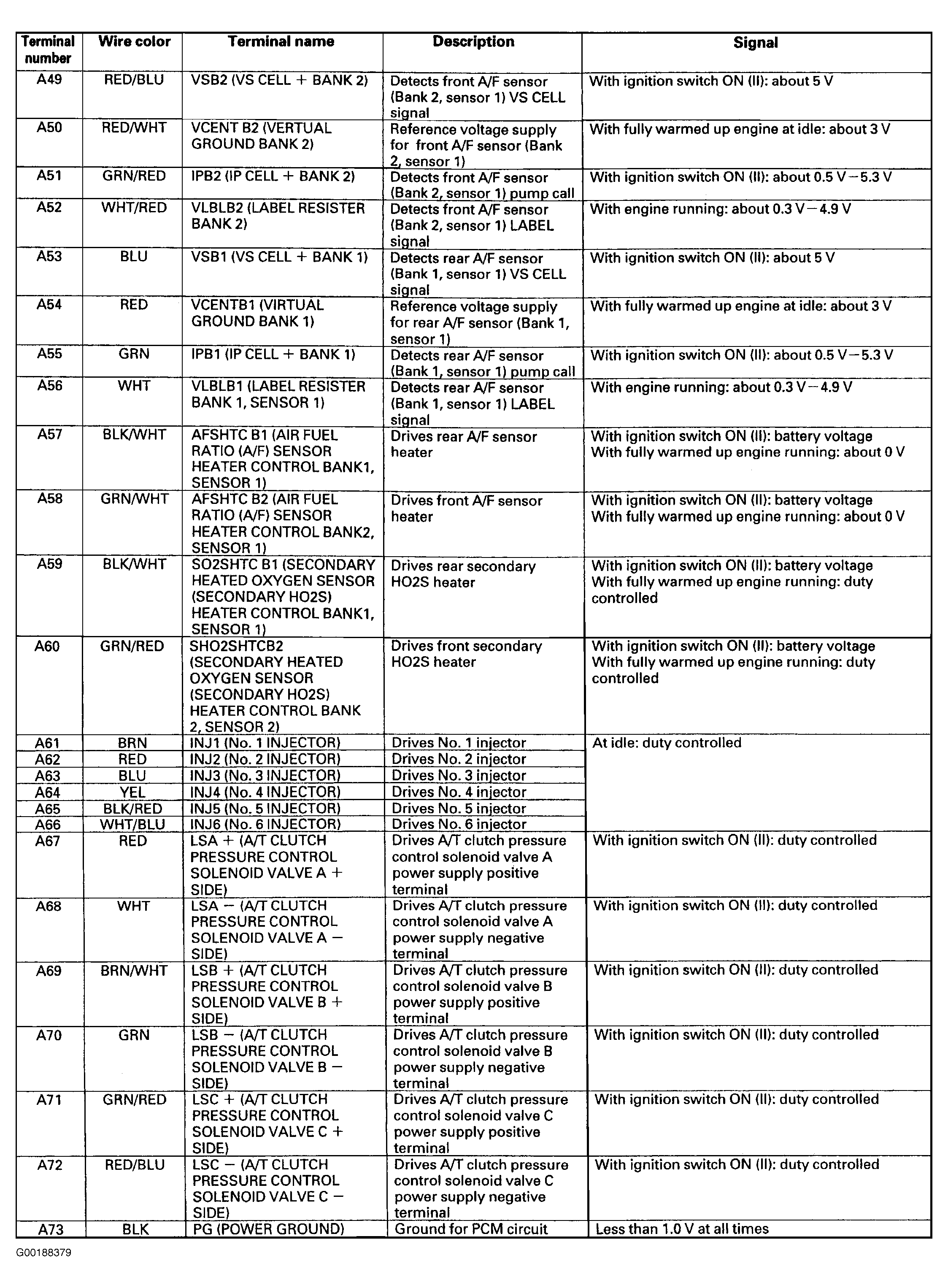

Fig 8: Identifying 73-Pin Connector "A" Terminals & Pin Voltages (MDX - 3 Of 5)
G00188379Courtesy of AMERICAN HONDA MOTOR CO., INC.

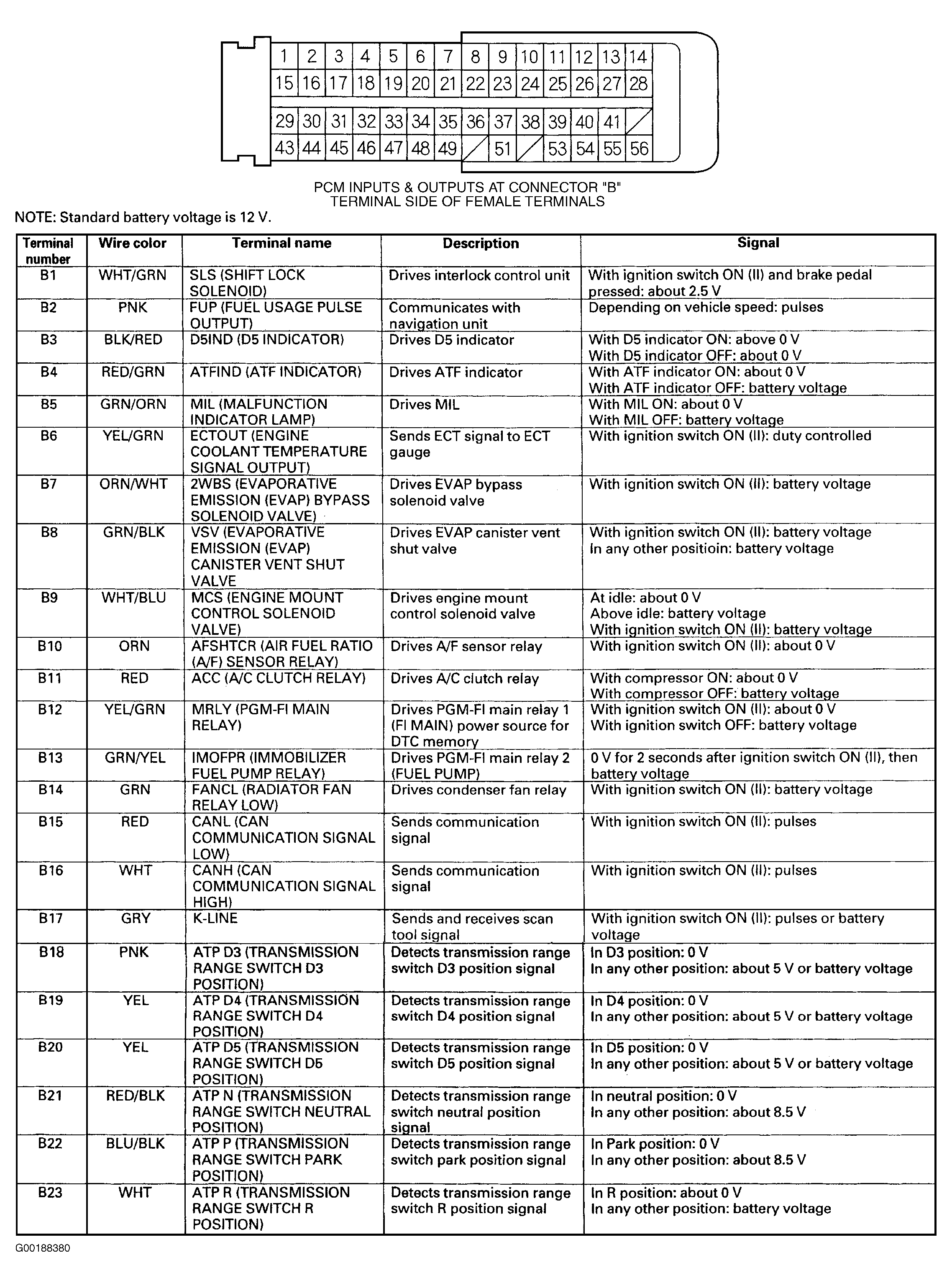

Fig 9: Identifying 56-Pin Connector "B" Terminals & Pin Voltages (MDX - 4 Of 5)
G00188380Courtesy of AMERICAN HONDA MOTOR CO., INC.

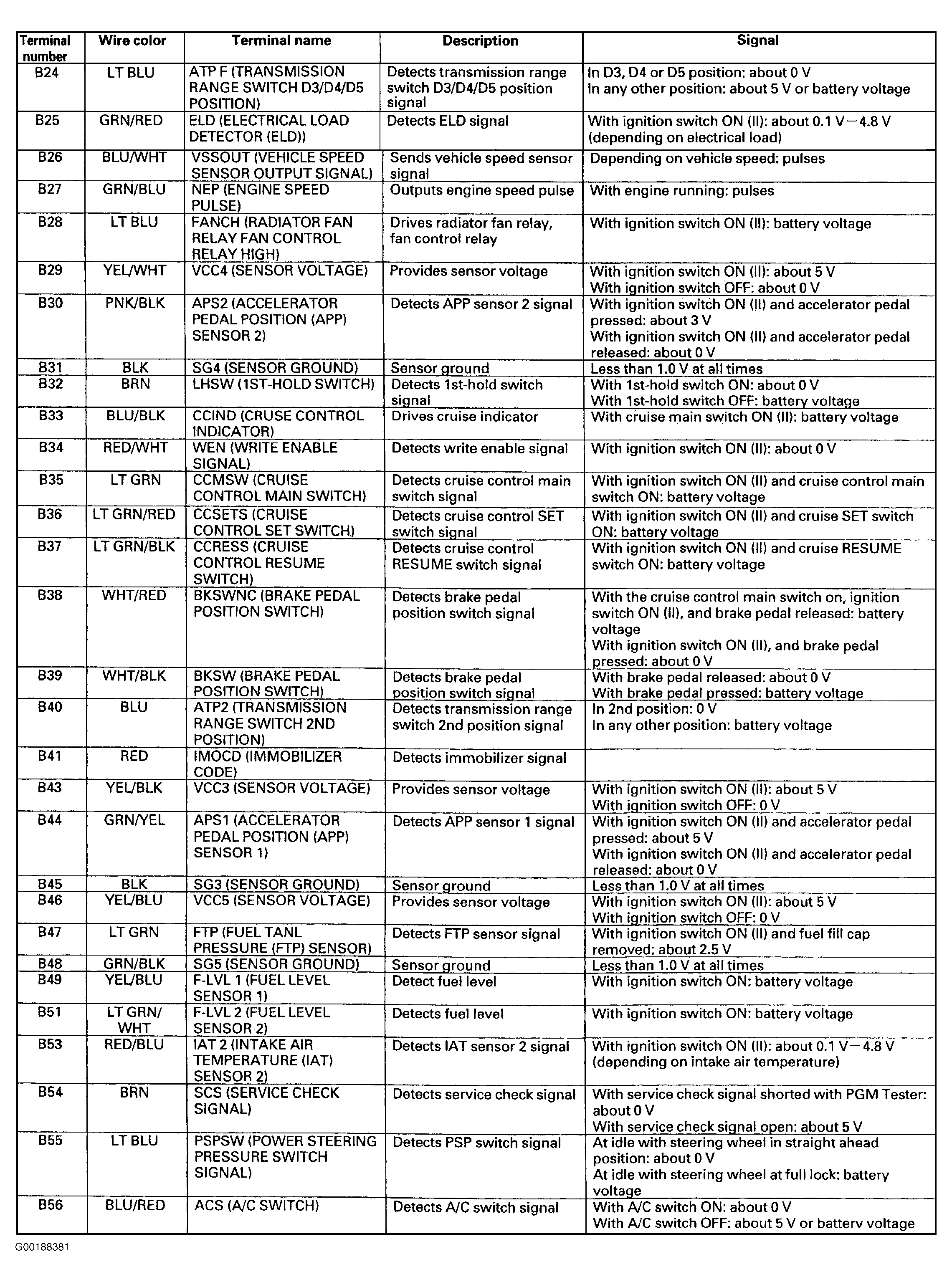

Fig 10: Identifying 56-Pin Connector "B" Terminals & Pin Voltages (MDX - 5 Of 5)
G00188381Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 11: Identifying 32-Pin Connector "A" Terminals & Pin Voltages (3.2CL A/T & 3.2TL - 1 Of 5)
G00032268Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 12: Identifying 25-Pin Connector "B" Terminals & Pin Voltages (3.2CL A/T & 3.2TL - 2 Of 5)
G00032269Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 13: Identifying 31-Pin Connector "C" Terminals & Pin Voltages (3.2CL A/T & 3.2TL - 3 Of 5)
G00032270Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 14: Identifying 16-Pin Connector "D" Terminals & Pin Voltages (3.2CL A/T & 3.2TL - 4 Of 5)
G00032271Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 15: Identifying 20-Pin Connector "E" Terminals & Pin Voltages (3.2CL A/T & 3.2TL - 5 Of 5)
G00070971Courtesy of AMERICAN HONDA MOTOR CO., INC.

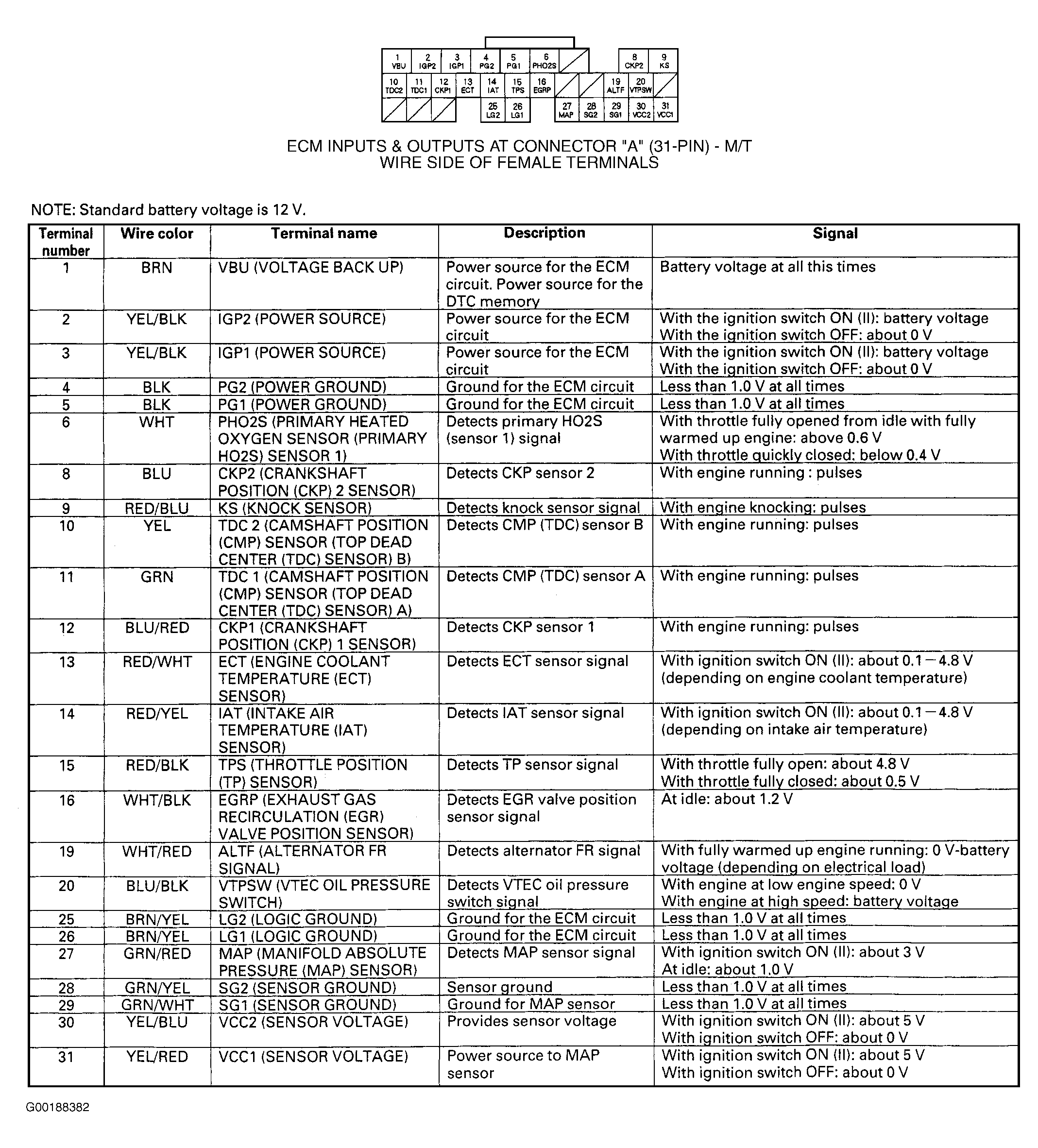

Fig 16: Identifying 31-Pin Connector "A" Terminals & Pin Voltages (3.2CL M/T)
G00188382Courtesy of AMERICAN HONDA MOTOR CO., INC.

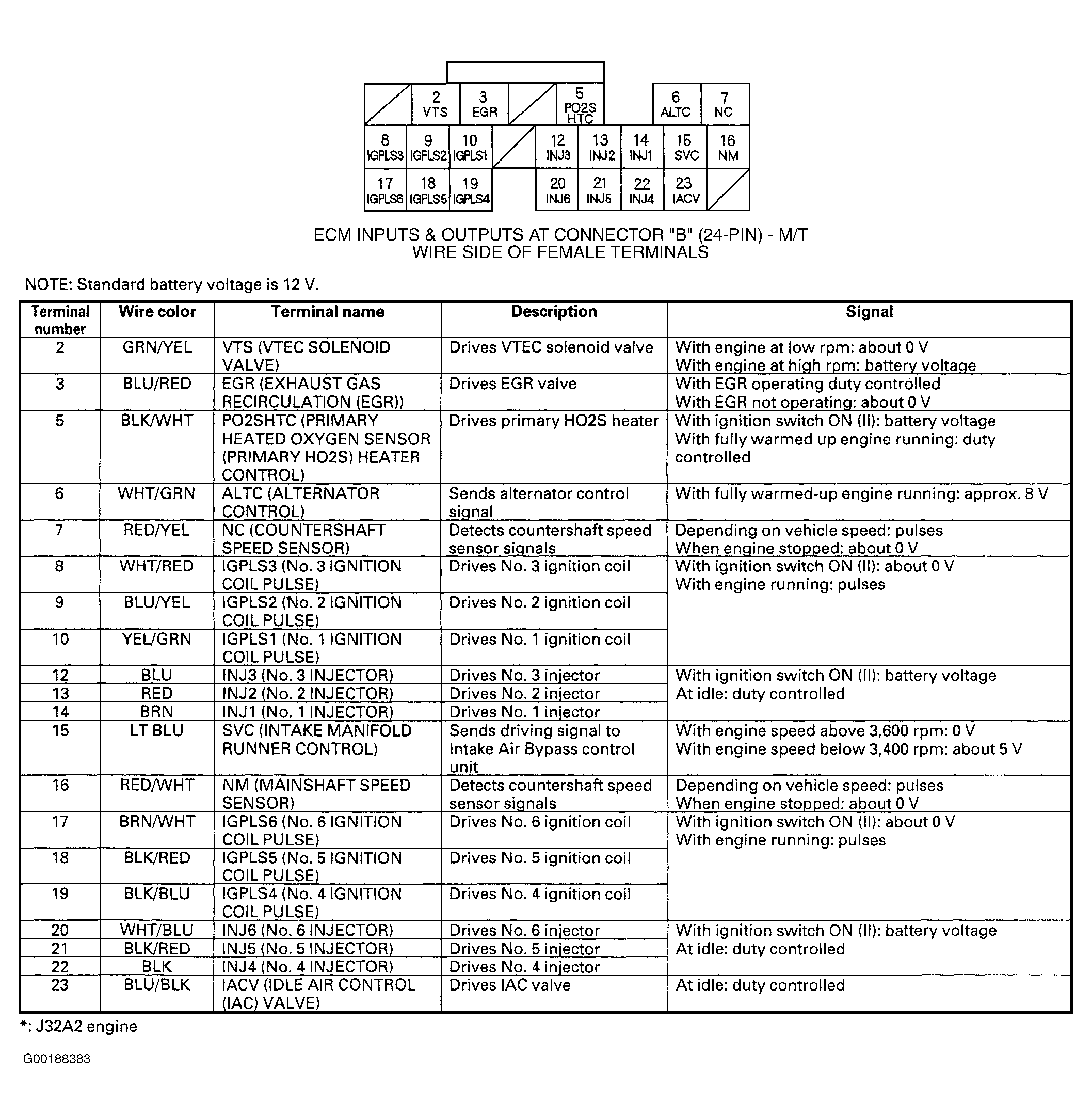

Fig 17: Identifying 24-Pin Connector "B" Terminals & Pin Voltages (3.2CL M/T)
G00188383Courtesy of AMERICAN HONDA MOTOR CO., INC.

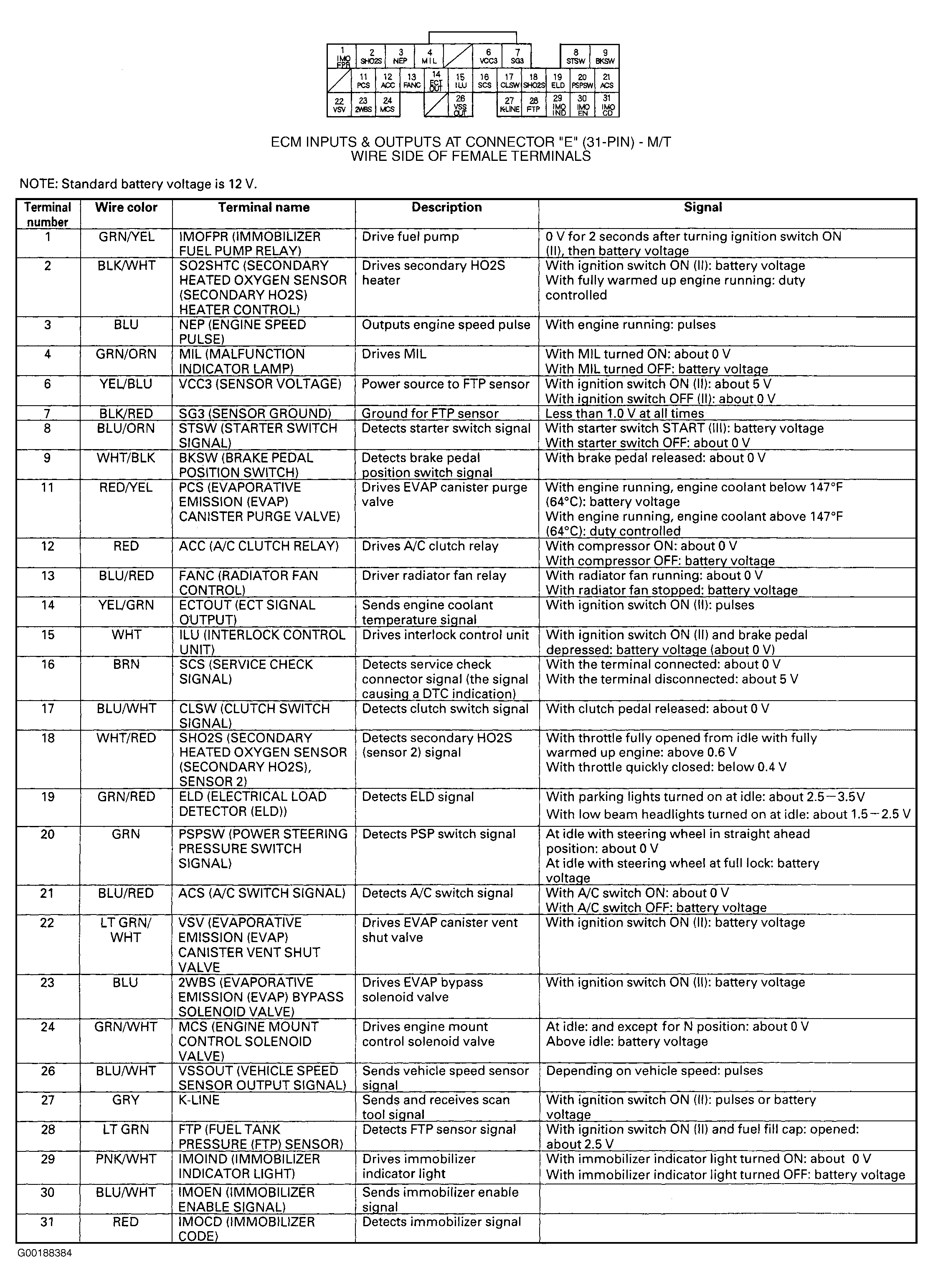

Fig 18: Identifying 31-Pin Connector "E" Terminals & Pin Voltages (3.2CL M/T)
G00188384Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 19: Identifying 26-Pin Connector "A" Terminals & Pin Voltages (3.5RL - 1 Of 6)
G00032278Courtesy of AMERICAN HONDA MOTOR CO., INC.

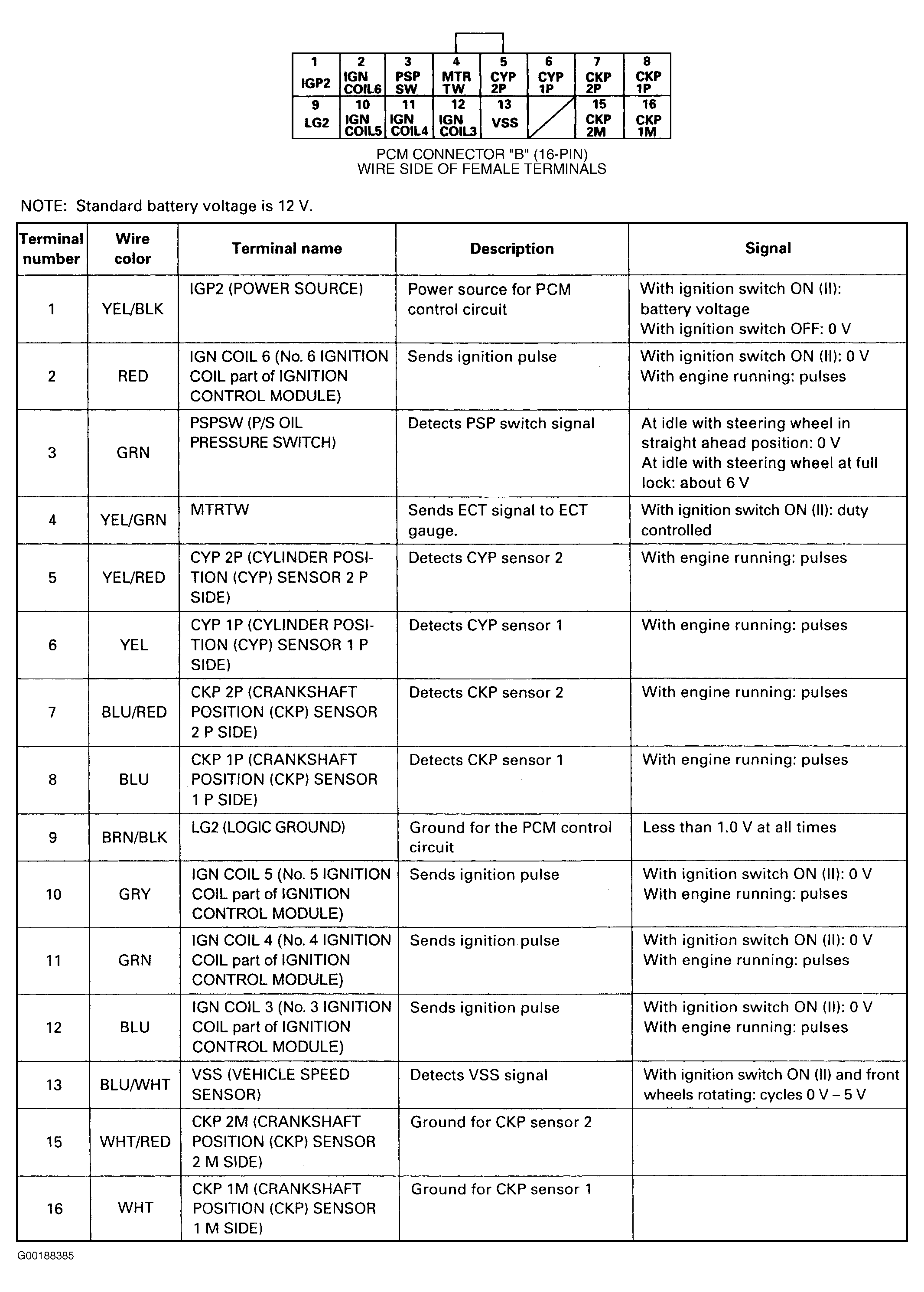

Fig 20: Identifying 16-Pin Connector "B" Terminals & Pin Voltages (3.5RL - 2 Of 6)
G00188385Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 21: Identifying 12-Pin Connector "C" Terminals & Pin Voltages (3.5RL - 3 Of 6)
G00188386Courtesy of AMERICAN HONDA MOTOR CO., INC.

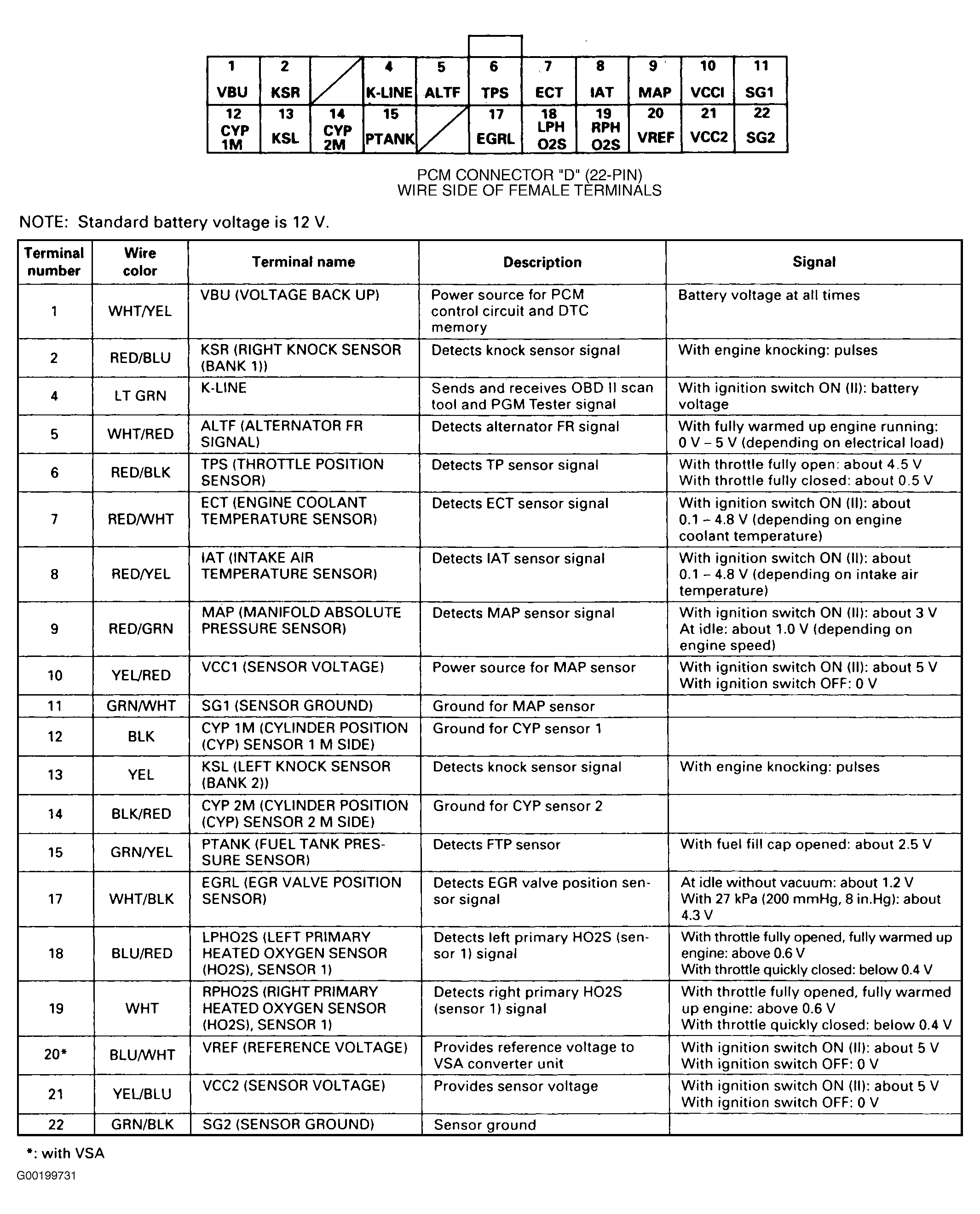

Fig 22: Identifying 22-Pin Connector "D" Terminals & Pin Voltages (3.5RL - 4 Of 6)
G00199731Courtesy of AMERICAN HONDA MOTOR CO., INC.

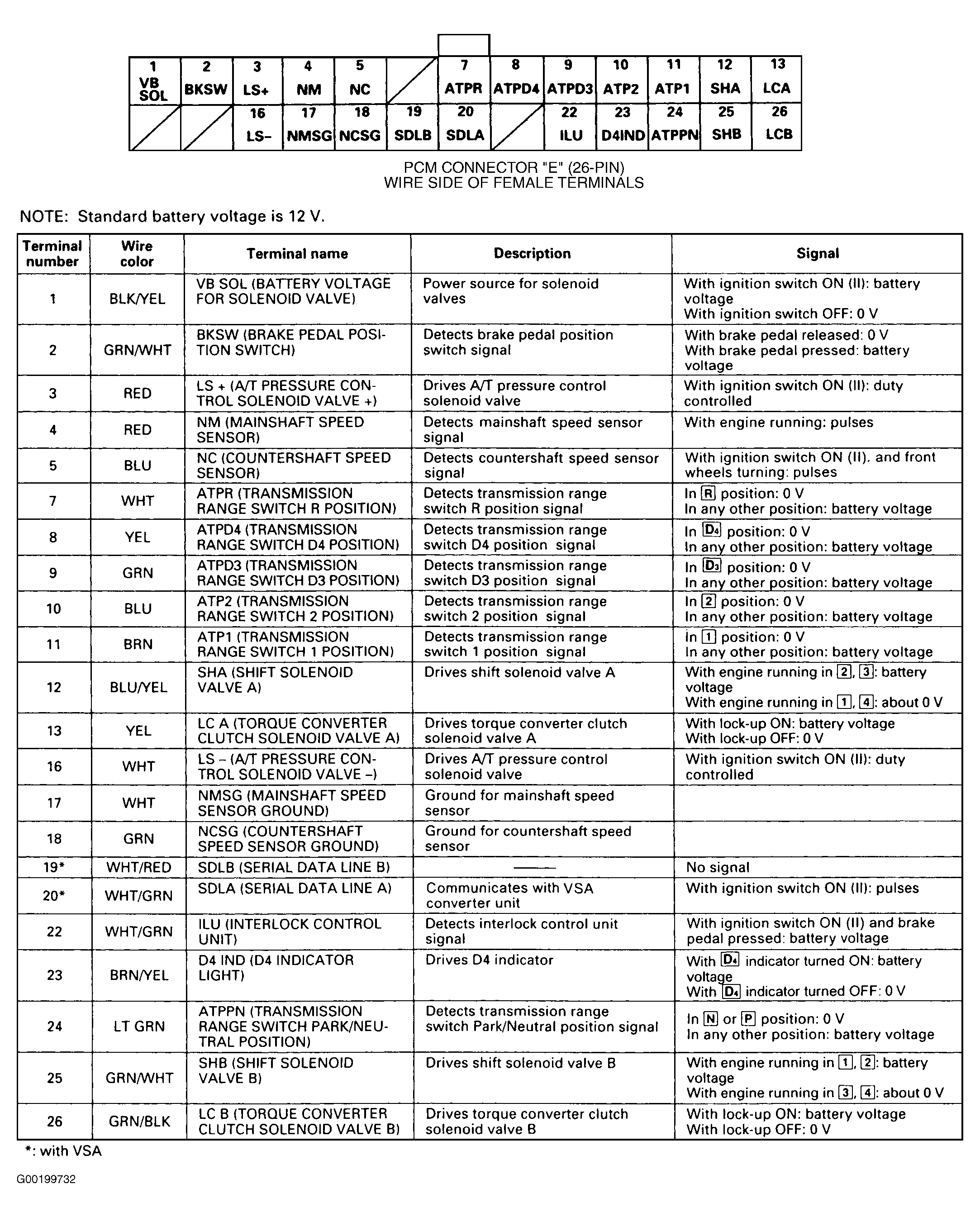

Fig 23: Identifying 26-Pin Connector "E" Terminals & Pin Voltages (3.5RL - 5 Of 6)
G00199732Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 24: Identifying 8-Pin Connector "F" Terminals & Pin Voltages (3.5RL - 6 Of 6)
G96G10088Courtesy of AMERICAN HONDA MOTOR CO., INC.
