Navigation System Information (05-018)

NAVIGATION SYSTEM INFORMATION

TECHNICAL SERVICE BULLETIN

AFFECTED VEHICLES

Year	Model	Trim	VIN Range
2001-03	3.2 CL	ALL	ALL
2000-03	3.2 TL	ALL	ALL
1996-04	3.5 RL	ALL	ALL
2013	ILX	ALL	ALL
2013	ILX Hybrid	ALL	ALL
2001-13	MDX	ALL	ALL
2007-13	RDX	ALL	ALL
2005-12	RL	ALL	ALL
2007-12	RL (Compass only)	ALL	ALL
2004-13	TL	ALL	ALL
2004-13	TSX	ALL	ALL
2010-13	ZDX	ALL	ALL

REVISION SUMMARY

Updating HDD versions.

NAVIGATION BACKGROUND

American Honda has two types of navigation system platforms available: DVD and HDD.

For more information about the navigation system and its operation, refer to the following resources:

• Service Manual - Printed or on SIS
• Quick Start Guide or Technology Reference Guide
• Online University - Use the keyword NAVI
• Navigation Manual - Besides the one that comes with the vehicle, the navigation system manual is also available online. Select SEARCH BY PUBLICATION  , select Consumer Information  , select your applicable vehicle, then select Navigation Manual  from the list.
• Service Bulletins - Use the keyword NAVI
• ETM (electrical troubleshooting manual) or EWD (electrical wiring diagrams)

WARRANTY CLAIM INFORMATION

None. This service bulletin is for information only. Refer to the flat rate manual whenever servicing or repairing the navigation system.

DVD Navigation System Information	Page
DVD navigation type identification by model	DVD NAVIGATION TYPE IDENTFICATION BY MODEL
Earliest DVD version application for each model	EARLIEST DVD VERSION APPLICATION FOR EACH MODEL
How to identify navigation DVD or compass CD versions	HOW TO IDENTIFY NAVIGATION DVD OR COMPASS CD VERSIONS
Checking a disc (DVD or CD) for damage	CHECKING A DISC (DVD OR CD) FOR DAMAGE
Ordering a replacement DVD, update DVD, or compass CD	ORDERING A REPLACEMENT DVD, UPDATE DVD, OR COMPASS CD
Navigation DVD or compass CD stocking concerns	NAVIGATION DVD OR COMPASS CD STOCKING CONCERNS
Disc (DVD and CD) handling and cleaning	DISC (DVD AND CD) HANDLING AND CLEANING
Installing a navigation DVD or compass CD	INSTALLING A NAVIGATION DVD OR COMPASS CD
Precaution on client "sneak previews" of a newer navigation DVD version	PRECAUTION ON CLIENT "SNEAK PREVIEWS" OF A NEWER NAVIGATION DVD VERSION
Pitfalls when interchanging navigation DVD/parts during diagnosis	PITFALLS WHEN INTERCHANGING NAVIGATION DVD/PARTS DURING DIAGNOSIS
Replacing the navigation control unit and transferring the navigation DVD	REPLACING THE NAVIGATION UNIT AND TRANSFERRING THE NAVIGATION DVD
Entering the anti-theft code	ENTERING THE ANTI-THEFT CODE
Answering client questions about navigation system coverage	ANSWERING CLIENT QUESTIONS ABOUT NAVIGATION SYSTEM COVERAGE

Navigation HDD System Information	Page
HDD version identification by model	HDD VERSION IDENTIFICATION BY MODEL
How to identify HDD software versions	HOW TO IDENTIFY HDD SOFTWARE VERSIONS
Replacing the navigation control unit or the navigation DVD	REPLACING THE NAVIGATION CONTROL UNIT OR THE NAVIGATION HDD FIRST GENERATION HDD
Ordering a replacement HDD	ORDERING A REPLACEMENT HDD
Ordering navigation update software	ORDERING NAVIGATION UPDATE SOFTWARE
Entering the anti-theft code on an HDD unit	ENTERING THE ANTI-THEFT CODE ON AN HDD UNIT
Answering client questions about navigation coverage	ANSWERING CLIENT QUESTIONS ABOUT NAVIGATION SYSTEM COVERAGE

DVD NAVIGATION TYPE IDENTFICATION BY MODEL

For navigation systems that use a navigation DVD, remove the navigation DVD and compare the label color and version to the following chart. Clients may obtain navigation DVDs from a variety of sources (friends, internet auctions, etc.) outside the normal ordering process. If they install an incorrect DVD, it can produce an error message, or cause the navigation system to malfunction. If the label is the wrong color or wrong version, replace it with the correct navigation DVD before  replacing the navigation unit.

For compass systems that use a compass CD, remove the CD and compare the label version to the following chart. Clients may try to install a navigation DVD. If they install a navigation DVD or the wrong compass CD, it can produce an error message, or cause the compass system to malfunction. If the label is the wrong color or wrong version, replace it with the correct compass CD before  replacing the compass unit.

Model	Year	DVD Label Color	Applicable DVD Versions			Coverage Area	Voice Control Features	Other Features
			Earliest Allowed DVD Version	Latest Vehicle Production DVD Version	Current Update DVD Version
3.2CL	2000	Black	1.08	1.09	2.A0	Continental U.S.	None (voice guidance only)	None
	2001		2.02	2.04	2.A0
	2002		2.04	2.05A	2.A0
	2003		2.05	2.05B	2.A0
MDX	2001	Black	2.02	2.04	2.A0	Continental U.S.	None (voice guidance only)	Trip computer, off-road tracking (breadcrumbs)
	2002		2.05	2.05B	2.A0
	2003	Orange	3.10	3.20A	3.D0	Continental U.S. and Canada	Navigation display commands	Trip computer, off-road tracking (breadcrumbs)
	2004		3.30D	3.30G	3.D0
	2005	White	4.11	4.13C(3)	4.E0	Continental U.S. and Canada (border areas only)	Navigation, audio, XM, climate control, and rear entertainment system (RES)	HFL, OnStar
	2006		4.31	4.31C	4.E0
	2007		4.55/4.56	4.56A	4.E0	Continental U.S., Hawaii, and Canada (border areas only)	Navigation, audio, XM, climate control, and rear entertainment system (RES)	Real-time traffic for select U.S. cities, HFL, DVD audio
	2008		4.62	4.64	4.E0
	2009		4.73	4.73A	4.E0
	For 2010 and later, refer to HDD VERSION IDENTIFICATION BY MODEL
RDX	2007	White	4.41/4.56	4.56A	4.E0	Continental U.S., Hawaii, and Canada (border areas only)	Navigation, audio, XM, and climate control	Real-time traffic for select U.S. cities, HFL, DVD audio
	2008		4.62	4.64	4.E0
	2009		4.73	4.73A	4.E0
	2010		4.81A	4.81A	4.E0
	2011		4.92	4.92	4.E0
	2012		4.92	4.A2	4.E0
	For 2013 and later, refer to HDD VERSION INDENTIFICATION BY MODEL
3.5RL	2000	Black	1.07	1.09	2.A0	Continental U.S.	None (voice guidance only)	None
	2001		2.03	2.04	2.A0
	2002		2.04	2.05A	2.A0
	2003		2.05	2.05B	2.A0
	2004	Orange	3.20	3.30G	3.D0	Continental U.S.	Navigation display commands	Voice recognition
RL	2005	White DVD	4.13B(3)	4.13B(3)	4.E0	Continental U.S., Hawaii and Canada (border areas only)	Navigation, audio, XM, and climate control	Real-time traffic for select U.S. cities, HFL, DVD audio, OnStar
	2006		4.31	4.31C	4.E0
	2007 (Tech with navigation)		4.55/4.56	4.56A	4.E0			Real-time traffic for select U.S. cities, HFL, DVD audio
	2008 (Tech with navigation)		4.62	4.62	4.E0
	2009 (Tech with navigation)		4.63	4.73A	4.E0	Continental U.S., Hawaii, and Canada (border areas only)	Navigation, audio, XM, audio USB, and climate control	Real-time traffic, XM Weather, XM notes, HFL, audio USB, DVD audio
	2010 (Tech with navigation)		4.81A	4.81A	4.E0
	2011 (Tech with navigation)		4.92	4.92	4.E0
	2012 (Tech with navigation)		4.A2	4.A2	4.E0
	2007 (with compass only)	White CD	4.54/4.56(2)	4.71(2)	4.56(2)	Continental U.S.	Audio, and climate control	Compass only (no map)
	2008 (with compass only)		4.54(2)	4.71(2)	4.56(2)		Audio, XM, and climate control	Compass only (no map)
	2009 (with compass only)		4.63(2)	4.71(2)	4.71(2)			Compass only (no map)
	2010 (with compass only)		4.71(2)	4.71(2)	4.71(2)			Compass only (no map)
	2011 (with compass only)		4.71(2)	4.71(2)	4.71(2)			Compass only (no map)
	2012 (with compass only)		4.71(2)	4.71(2)	4.71(2)			Compass only (no map)
3.2TL	2000	Black	1.07	1.09	2.A0	Continental U.S.	None (voice guidance only)	None
	2001		2.02	2.04	2.A0
	2002		2.04	2.05A	2.A0
	2003		2.05	2.05B	2.A0
TL	2004	Orange	3.30D	3.30G	3.D0	Continental U.S. and Canada	Navigation, audio, XM, and climate control	HFL, DVD audio
	2005		3.40A	3.40C	3.D0
	2006		3.50	3.50	3.E0
	2007	White	4.55/4.56	4.56A	4.E0	Continental U.S., Hawaii, and Canada (border areas only)	Navigation, audio, XM, and climate control	Real-time traffic for select U.S. cities, HFL, DVD audio
	2008-10		4.62	4.64	4.E0
	For 2011 and later, refer to HDD VERSION IDENTIFICATION BY MODEL
TSX	2004	Orange	3.20	3.30H	3.C0	Continental U.S. and Canada	Navigation, audio, and climate control	None
	2005		3.40A	3.40C	3.C0
	2006	White	4.31	4.31C	4.B1	Continental U.S. and Canada (border area only)	Navigation, audio, XM, and climate control	HFL(1)
	2007		4.31/4.55/4.56	4.56A	4.B1
	2008		4.62	4.62	4.B1			HFL
	2009		4.63	4.73A	4.B1	Continental U.S. and Canada (border area only)	Navigation, audio, XM, and climate control	Real-time traffic for select U.S. cities, XM weather, notes, HFL, audio USB
	2010		4.81A	4.81A	4.B1
	For 2011 and later, refer to HDD VERSION IDENTIFICATION BY MODEL
(1) Navigation control units for these models have different part numbers and are not interchangeable between model years. (2) Compass CD (3) If a client updates directly from version 4.13D (or lower) to version 4.73A or higher, they will receive a setup DVD along with the update navigation DVD. This setup DVD must be installed first. If the setup DVD is not installed first, the navigation system may continuously reboot to the globe screen or not boot up at all.

EARLIEST DVD VERSION APPLICATION FOR EACH MODEL

Each navigation system DVD contains a map/POI (point of interest) database and the navigation system software for each model that it supports. Inserting an older DVD (such as an earlier version than indicated in the table) can cause problems since it lacks the software to provide the specific features needed for that model. Unfortunately, the navigation software may not detect or warn you that the version is outdated, and it may even appear to operate normally.

Typical warning symptoms that an outdated DVD is being used include:

• An Acura model navigation screen may display a Honda logo while booting up.
• A newly introduced model feature (for example, XM radio or HFL) may not display properly, and Extension  may display instead.
  NOTE: Extension  may be displayed when using Music Link, but should never be displayed when XM or USB is selected.
• The current street being driven on may not appear properly at the bottom of the map screen display when the vehicle is driven on a main road.
  NOTE: If necessary, compare the navigation system operation to a same model vehicle with a current DVD.

HOW TO IDENTIFY NAVIGATION DVD OR COMPASS CD VERSIONS

To determine the navigation or compass version on a particular model, start the engine, then locate the navigation or compass control unit (see the appropriate service manual). Open the DVD door, and push the eject button to eject the disc. Hold the disc by the edges, and check for these items:

• The label color (see the chart on the previous pages for model application).

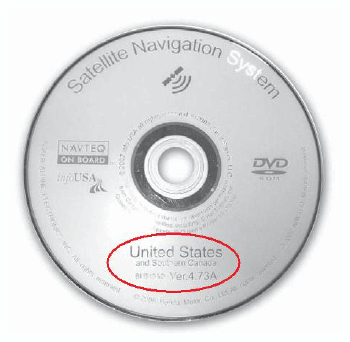

• Read the DVD or CD version listed on the bottom of the label, and note it on the repair order. You will need this version number in these instances:
  • To verify that the DVD or CD version is appropriate for the vehicle
  • Any time you call Tech Line regarding a navigation or compass system issue
  • To answer client inquiries concerning update or coverage issues
  NOTE: Clients may obtain DVDs from sources outside the normal ordering process. If you determine this is the case, recommend that your client purchase the appropriate DVD from the Acura Navigation Center (see ORDERING A REPLACEMENT DVD, UPDATE DVD, OR COMPASS CD ).

CHECKING A DISC (DVD OR CD) FOR DAMAGE

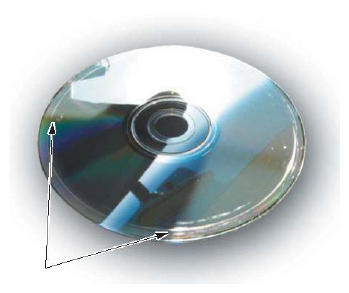

Check the underside of the disc for signs of mishandling. Deep scratches, swirl marks, or fingerprints can cause random lock-ups, reboots, and DVD read or format errors.

• Verify that the underside of the disc is silver, and not a copy with a bluish color. Copies do not work properly and can cause other symptoms that mimic hardware problems.
• If the disc is dirty, go to DISC (DVD AND CD) HANDLING AND CLEANING .
• If the DVD is defective, or has any of the issues mentioned above that are not covered by a service bulletin, return the vehicle to your client and recommend that they order the proper DVD from the Acura Navigation Center (see ORDERING A REPLACEMENT DVD, UPDATE DVD, OR COMPASS CD ).

ORDERING A REPLACEMENT DVD, UPDATE DVD, OR COMPASS CD

To order a navigation DVD, you can call the Acura Navigation Center at 888-291-4675  . The navigation center knows the correct color DVD application for each vehicle and can provide the latest version. To order online, go to www.acuranavi.com  , and use the drop-down menu under Find Updates  . The client's navigation manual provides additional ordering and installation information. This information is located in the Client Assistance  section.

You cannot order a compass CD online. Call the Acura Navigation Center, select and specify you are ordering a compass CD for the RL.

NAVIGATION DVD OR COMPASS CD STOCKING CONCERNS

Never stock navigation system DVDs, because software versions are constantly updated. Some dealerships also remove the DVDs from new or used vehicles, store them in a common, locked location, then reinstall them when the vehicle is sold. This is a mistake because the various navigation systems are version sensitive (meaning that even if the correct color DVD is used, an older version may not work).

The same issues apply to compass CDs, as on the surface, they appear similar to navigation DVDs. Since compass-equipped vehicles appear similar to navigation-equipped vehicles, this increases the chances of the wrong disc being inserted.

Stocking navigation DVDs or compass CDs or storing navigation DVDs and compass CDs in a common location can result in any of these problems:

• Incorrectly colored DVDs or compass CDs being put into navigation vehicles. This causes the system to display error messages, or it causes system malfunctions that mimic a hardware problem. This results in the client driving away with a malfunctioning navigation system.
• The DVD version is out-of-date or incompatible with a particular model. This inconveniences your client by delaying the repair, or by causing additional (and unnecessary) returns to your dealership.
• A navigation DVD being put into a compass vehicle causes the system to display DISC ERROR  messages.
• The client experiences software bugs or other issues that have already been resolved in later versions currently available at the Acura Navigation Center.

These ordering procedures are recommended:

• Always order navigation DVDs on an as-needed basis. During a typical model year, each color DVD may undergo a half-dozen "software only" version upgrades to fix minor issues on some or all models the DVD supports. This is normal. Usually, only the letter at the end of the version number changes, while the database (maps and POIs) remain unchanged through the year.
• Never promise your clients future free updates. There are no free programs for updating navigation DVDs  . Update DVDs are generally available for purchase each fall. The online DVD order site provides information when an update for a particular color DVD is available.
• Compass CDs are seldom updated. Order a compass CD only if it is damaged and needs replacement.

DISC (DVD AND CD) HANDLING AND CLEANING

To avoid damaging or leaving fingerprints on the disc, always handle it by the edges and place it in a jewel case whenever it is outside the control unit. Deep scratches or fingerprints on the back of the disc can cause intermittent rebooting or other system errors.

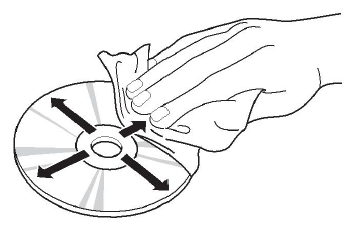

Smudges and fingerprints can be carefully removed using a mild cleaner and soft cloth designed to clean eyeglasses. To clean a disc, first apply the cleaning solution to the disc, and using a clean soft cloth, very gently wipe across the disc from the center to the outside edge, never  in a circular motion.

Do not place stabilizer rings or labels on the disc.

INSTALLING A NAVIGATION DVD OR COMPASS CD

1. Park the vehicle outside, and start the engine.
2. Eject the old DVD.
3. Install the new navigation DVD. Be sure to close the door on the navigation unit.
4. Select OK  on the disclaimer screen, then turn the ignition switch to LOCK (0). Wait 1 minute, then restart the engine.
5. Select OK  on the disclaimer screen.
6. Drive the vehicle on a mapped road until the road name appears at the bottom of the map screen. The system is now map-matched.

PRECAUTION ON CLIENT "SNEAK PREVIEWS" OF A NEWER NAVIGATION DVD VERSION

Your client might request a look (or "sneak preview") at features in the latest navigation software. You should never preview a navigation DVD in a client's vehicle. Inserting a new DVD installs the latest software from the DVD into the memory of the client's navigation system. When the original DVD is reinstalled, the newer software remains in memory and is often incompatible with the client's original DVD Map and POI database.

If your client wishes to see the latest navigation coverage or software features, demonstrate it on an in-stock vehicle that already has the latest DVD version.

If a newer version is loaded accidentally, either by the dealer or the client, one possible remedy is to enter the navigation diagnostic mode's Version  screen and do a forced download  . Refer to the iN for applicable patches that may need reinstalling.

If a forced download does not reinstall the original software, the navigation unit may need to be replaced. This is not covered  under warranty.

PITFALLS WHEN INTERCHANGING NAVIGATION DVD/PARTS DURING DIAGNOSIS

When troubleshooting navigation system problems, ensure that the known-good vehicle is the same software version year and model as the vehicle being serviced. Mixing incompatible navigation DVDs or other system components can delay the troubleshooting process by causing side effects unrelated to the original problem. See the TABLE  under DVD NAVIGATION TYPE IDENTIFICATION BY MODEL.

REPLACING THE NAVIGATION UNIT AND TRANSFERRING THE NAVIGATION DVD

If your diagnosis determines the client's navigation unit is faulty, you will need to order a remanufactured replacement navigation unit (in warranty), or send it out for repair (out of warranty). Refer to Service Bulletin 06-001, Audio, Navigation, and RES, Unit In-Warranty Exchange and Out-of-Warranty Repair  . The order procedure on the iN is designed to minimize unnecessary replacement of parts due to client settings, unfamiliarity with system operation, or software/database issues that cannot be resolved by hardware replacement. The Navigation System Worksheet asks the following navigation information:

• The client's DVD color and version number on the label, and condition of the DVD (inspection for scratches).
• The client's complaint, symptom, and other details to allow duplication of the issue by the factory.
• The results of the diagnostic procedure from the service manual.

This information helps the Remanufactured Parts Center and the factory to understand the problem and properly repair the core.

Component	Year/Model	Part Number/Note
Display	2004-08 TL	Order new parts to repair these vehicles.

Replacement navigation units do not  come with a DVD because the parts center has no way of knowing the client's current DVD version. When the new navigation unit arrives, and before disconnecting the original navigation unit, do this:

1. Save the client's data (if equipped) using the Save Users Memory procedure:
   • Refer to the applicable service manual, or
   • Online, enter keywords NAVI DIAG  , select Navigation System Diagnostic Mode  from the list, and look for Save Users Memory  .
2. With the engine running, open the navigation unit door, and eject the DVD from the original unit. To avoid scratching or damaging the DVD, temporarily place the DVD in a jewel case.
   NOTE: If the DVD will not eject, write that information clearly on the core return form, and order a DVD from the Acura Navigation Center.
3. Install a new navigation unit:
   • Refer to the navigation section in the applicable service manual, or
   • Online, enter keywords NAVI REMOVAL  , and select Navigation Unit Removal/Installation  from the list.
4. Reinstall the client's original DVD, verifying that the DVD is free of deep scratches or smudges.
5. Check online for any service bulletins prescribing patches that should be applied to the replacement navigation unit.
6. Park the vehicle outside, and do the system initialization. Online, look up the navigation system TQI service bulletin that applies to the client's vehicle. This assures that all components connected to, or controlled by, the navigation unit are working properly. The TQI procedure includes a short test to ensure that the navigation unit has synchronized its maps with the current location obtained during the GPS initialization (map-matching).

ENTERING THE ANTI-THEFT CODE

Any time power is disconnected from the navigation unit, the 4-digit anti-theft code must be entered on the navigation system display. This 4-digit code can be found on a small code card or label in the glove box. Enter the 4-digit code, then select Done  .

If you cannot find the navigation system anti-theft code, use the iN to look it up. You need the serial number of the navigation unit to do this. There are two methods to obtain the serial number:

• For navigation systems using white, turquoise, or orange-colored DVDs, you can view the serial number without removing the navigation unit by entering the diagnostic mode:
  • Refer to Anti-theft Feature under General Troubleshooting Information in the navigation section of the applicable service manual, or
  • Online, enter keyword THEFT  , and select The navigation anti-theft code card is lost or missing  from the list.
• For second-generation navigation systems (identified by the black DVD used with them), the code is located on the underside of the navigation unit.

The iN may display more than one code for a given serial number. This is because serial numbers are not unique. You may have to try more than one 4-digit code. If no code is shown, or if the code(s) given do not work, contact the American Honda Warranty department at 310-783-3240  , and ask them to verify the code(s). If the code "0000" (four zeroes) works, replace the navigation unit.

When you replace a navigation unit, be sure to remove the old code card, and give the client the new anti-theft security code card.

HDD VERSION IDENTIFICATION BY MODEL

For navigation systems that use the first-generation HDD/flash memory card (1996-99 3.5RL, 1999 3.2TL), transfer the HDD or flash memory card to the replacement navigation unit:

• 1996-99 3.5RL models  : If you are replacing the navigation unit, make sure you transfer the HDD or the flash memory card from the original unit to the replacement unit.
• 1999 3.2TL models  : The original HDD navigation unit is no longer available  . You can either try to send it to Alpine for repair (see Service Bulletin 06-001, Audio, Navigation, and RES Unit In-Warranty Exchange and Out-of-Warranty Repair  ), or replace it with the 2000 TL DVD navigation unit. Make sure you also order a black label DVD since the DVD does not come with the new navigation unit.

For navigation systems that use an HDD, check the software version and compare the version to the following chart.

Model	Year	Applicable HDD Software Versions			Coverage Area	Voice Control Features	Other Features
		Earliest Allowed HDD Version	Latest Vehicle Production HDD Version	Current Update HDD Version
3.5RL	1996	N/A	December 2002	December 2002	Individual sections of U.S. (DCA) on removable HDD/flash card	None (voice guidance only)	First-generation HDD/Flash card Dealer programs "DCA" using Interactive Network
	1997
	1998
	1999
3.2TL	1999	HDD N/A DVD 1.07	December 2002 (HDD)	December 2002 (HDD) DVD 2.60	HDD - Individual sections of U.S. (DCA) on removable HDD/flash card. DVD - Continental U.S	None (voice guidance only)	First-generation HDD/Flash card Dealer programs "DCA" using Interactive Network
ILS	2012	02.100400	02.110000	06.000000	Continental U.S., Canada, and Mexico	Navigation, audio, XM and climate control + Song by Voice	Real-time traffic for select U.S. cities, weather, XM notes, HFL, audio USB + Pandora, jacket picture display
	2013	03.000600	03.000600	06.000000
	2014	04.000000	04.000000	06.000000
	2015	05.000000	05.000000	06.000000
MDX	2010	1.40.0300	1.50.000	1.60.0100	Continental U.S. and Canada	Navigation, audio, XM, and climate control	Real-time traffic for select U.S. cities, weather, XM notes, HFL, audio USB
	2011	1.40.0300	1.50.000	1.60.0100
	2012	1.40.0300	1.50.000	1.60.0100
	2013	1.40.0300	1.50.000	1.60.0100
RDX	2012.5	02.100400	06.000000	06.000000	Continental U.S., Canada, and Mexico	Navigation, audio, XM, and climate control + Song by Voice	Real-time traffic for select U.S. cities, weather, XM notes, HFL, audio USB + Pandora, jacket picture display
	2013	03.000600	03.000600	06.000000
	2014	04.000000	04.000000	06.000000
	2015	05.000000	05.000000	06.000000
TL	2009	01.000700	01.001400	08.000000	Continental U.S. and Canada	Navigation, audio, XM, and climate control	Real-time traffic for select U.S. cities, weather, XM notes, HFL, audio USB
	2010	02.000400	02.000700	08.000000
	2011	03.000100	03.000100	08.000000
	2011.5	01.080000	01.110000	06.000000
	2012	03.000100	03.000100	06.000000
	2013	-	-	06.000000
	2014	04.000000	04.000000	06.000000
TSX	2011	1.40.0300	1.50.000	1.60.0100	Continental U.S. and Canada	Navigation, audio, XM, and climate control	Real-time traffic for select U.S. cities, weather, XM notes, HFL, audio USB
	2012	1.40.0300	1.50.000	1.60.0100
	2013	1.40.0300	1.50.000	1.60.0100
ZDX	2010	1.40.0300	1.50.000	1.60.0100	Continental U.S. and Canada	Navigation, audio, XM, and climate control	Real-time traffic for select U.S. cities, weather, XM notes, HFL, audio USB
	2011	1.40.0300	1.50.000	1.60.0100
	2012	1.40.0300	1.50.000	1.60.0100
	2013	1.40.0300	1.50.000	1.60.0100

HOW TO IDENTIFY HDD SOFTWARE VERSIONS

To determine the navigation software version in a vehicle:

• Make sure you are on the map screen, then press INFO  .
• Push the interface dial to the right to select OTHER  .
• Rotate the interface dial to highlight System/Device Information  , then press the ENTER button.
• The following information appears:
  • Software version
  • Database version
  • Device number
• To exit, press the MAP/GUIDE button.

REPLACING THE NAVIGATION CONTROL UNIT OR THE NAVIGATION HDD FIRST GENERATION HDD

If your diagnosis determines the client's navigation unit is faulty, you will need to order a new part or send it out for repair. Refer to Service Bulletin 06-001, Audio, Navigation, and RES Unit In-Warranty Exchange and Out-of-Warranty Repair  ). The order procedure on the iN is designed to minimize unnecessary replacement of parts due to client settings, unfamiliarity with system operation, or software/database issues that cannot be resolved by hardware replacement. The Navigation System Worksheet asks the following navigation information:

• The client's complaint, symptom, and other details to allow duplication of the issue by the factory.
• The results of the diagnostic procedure from the service manual.

This information helps the factory to understand the problem and properly repair the core

Component	Year/Model	Part Number/Note
Flash Card (replacement for HDD)	1996-98 3.5 RL	39010-SZ3-A91: Order new parts to repair these vehicles. The replacement flash card does not come loaded with any maps or POIs. Refer to Service Bulletin 97-016, 1996-99 3.5RL: TQI of the Navigation System.
	1999 3.5 RL
	1999 3.2 TL

1. Remove the original navigation unit. Either order a new navigation unit or send the unit out for repair. Refer to S/B 06-001 for more information
   • Refer to the applicable service manual, or
   • Online, enter keywords NAVI DIAG  , select Navigation System Diagnostic Mode  from the list, and look for Save Users Memory  .
2. Install a new navigation unit:
   • Refer to the navigation section in the applicable service manual, or
   • Online, enter keywords NAVI REMOVAL  , and select Navigation Unit Removal/Installation  from the list.
3. Check online for any service bulletins prescribing patches that should be applied to the replacement navigation unit.
4. Park the vehicle outside, and do the system initialization. Online, look up the navigation system TQI service bulletin that applies to the client's vehicle. This assures that all components connected to, or controlled by, the navigation unit are working properly. The TQI procedure includes a short test to ensure that the navigation unit has synchronized its maps with the current location obtained during the GPS initialization (map-matching).

ORDERING A REPLACEMENT HDD

If you need to replace the HDD, it is available through the parts ordering system as a restricted part. You will need the vehicle VIN to complete the order. The VIN allows the supplier to confirm the current software version being used by the client. When the HDD arrives at the dealership, install the HDD in the audio-navigation unit, then check any official Honda service website for any patches or updates related to the navigation system.

ORDERING NAVIGATION UPDATE SOFTWARE

Navigation map updates can be ordered online at acuranavi.com  . Under Find Updates, use the pull-down menu to select the vehicle Model and Year. You can also call the Acura Navigation Center at 888-291-4675  . Both methods require a major credit card.

Follow the instructions included with the map update on how to load the update information into the navigation system.

ENTERING THE ANTI-THEFT CODE ON AN HDD UNIT

Any time power is disconnected from the navigation unit, the 4-digit anti-theft code must be entered on the navigation system display. This 4-digit code can be found on a small code card or label in the glove box. Enter the 4-digit code, then select Done  .

If the code card is lost or unavailable, you can get the code from the iN (Interactive Network) using the navigation system serial number. The system serial number can easily be obtained without  removing the navigation unit. To get the serial number and the code, do this:

• Press and hold the MENU, MAP/GUIDE  , and CANCEL  buttons at the same time.
• At the Select Diagnosis Items screen, select Detail Information & Settings  , select Unit Check  , then NAVI ECU  . The system runs a brief diagnostic, then the navigation unit serial number is displayed at the bottom of the screen.
• Use the navigation Anti-theft code inquiry  option on the iN to look up the 5-digit navigation anti-theft code. The iN may display more than one code for a given serial number. This is because serial numbers are not unique. You may have to try more than one 5-digit code if listed.
• If no code is shown, or the code(s) given do not work, call the American Honda Warranty department at 888-549-3798  . Do not call Tech Line.

When you replace a navigation unit, be sure to remove the old code card, and give the client the new anti-theft security code card.

ANSWERING CLIENT QUESTIONS ABOUT NAVIGATION SYSTEM COVERAGE

Some clients may ask questions regarding a city, address, or POI (point of interest) covered by the navigation system. It is better to verify a coverage question on an actual vehicle than to disappoint your client by promising coverage that may be incomplete or missing in their area. The following suggestions can be used to answer coverage inquiries from your client.

• How do I find the local address of a business that is part of a national chain (for example, Starbucks)?

There are three ways to find the local address to businesses:

• If you know the phone number of the business, select Phone Number  and enter the 10-digit phone number (area code plus seven-digit number).
• Select Name  and enter Starbucks  . For more common business names, like McDonald's, you may have to search through a list that includes other businesses like McDonald's Welding, McDonald's Automotive, etc.
• With DVD  : Select Category  , then Restaurant  . Enter the keyword Star  . The resulting list includes all restaurants that have the letters Star anywhere in the name.
  NOTE: This search method may not work on all 2004 and earlier vehicles.
• With DVD  : Select Place Category  , then Restaurant  . Under Sub category  , select All Types  , then Place Name  . Enter keyword Star  . The resulting list includes all restaurants that have the letters Star anywhere in the name.
  • Is my address covered by the navigation system?

    Using a current production vehicle (of the same model), try entering the client's address (street first) to see if their area is covered. Always enter the street first, because sometimes their city may be included in a neighboring township, or under some larger metropolitan city name. If the address is shown in a later year vehicle but not your client's vehicle, recommend that your client purchase an update.

    If the client's address is not in the current database, you can store the client's address as a map input. Refer to Viewing/Saving the current location  in the navigation manual

  • Is my city covered by the navigation system?

    For general questions about whether a city is covered, view the map coverage  link on the DVD order site. On the site, you enter a year and model, and then click on the Coverage  link. You then select a state or province, and the cities are listed. Of course, this does not guarantee that the client's road or address is in the system. Verifying on an actual production vehicle is always the best guarantee that your information is accurate.

  • The gas station on my corner is now a restaurant. Why is it still incorrect in the navigation system?

    For POI-related client questions, explain that businesses are constantly moving, and there can be a considerable lag in updating the millions of POIs in the system. The database is updated annually, and the best way to verify whether the POI is accurate is to verify the inquiry on a current production vehicle.

  • How do I update my Gracenote software?

    While this is not navigation system software, clients may ask questions about it. Refer to the audio section of the applicable owner's manual.

Answers to these and other questions regarding coverage can be found in these locations:

• In the Frequently Asked Questions section of the navigation manual.
• Go to acuranavi.com  , and use the pull-down menu to select the model and year of the vehicle, then click on FAQ.
• For more information about Gracenote, go online to www.navteq.com/gracenote/acura  .
