Remote Audio Controls Do Not Work Properly (03-015)

Publication date: 2006-01-20
Reference number: 03-015

REMOTE AUDIO CONTROLS DO NOT WORK PROPERLY

REMOTE AUDIO CONTROLS DO NOT WORK PROPERLY

TECHNICAL SERVICE BULLETIN

Reference Number(s): 03-015, Date of Issue:  January 20, 2006
ACURA: 1999-03 3.2TL; 2001-03 3.2CL; 2001-02 MDX
CATEGORY: Electrical
APPLIES TO: 1999-03 3.2TL - ALL; 2001-03 3.2CL - ALL; 2001-02 MDX - ALL
Superceded Bulletin(s): 03-015, Date of Issue:  December 9, 2005
NOTE: This repair for the 2003-04 MDX is being released as a separate bulletin.

SYMPTOM

When you turn the steering wheel, the remote audio controls do not work properly.

PROBABLE CAUSE

The steering shaft resistance varies because the ground path does not have full contact through the bearing.

CORRECTIVE ACTION

Dimple the copper shield on the steering column ball bearing in eight places.

PARTS INFORMATION

Torx bolts (2 required): P/N 90134-S7S-N81

WARRANTY CLAIM INFORMATION

In warranty:  The normal warranty applies.

WARRANTY CLAIM INFORMATION

Operation Number: 510020
Flat Rate Time: 1.5 hours
Failed Part: P/N 53200-S3V-A02
Defect Code: 06403
Symptom Code: 03280
Template ID: 03-015A
Skill Level: Repair Technician

Out of warranty:  Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Parts and Service Manager or your Zone Office. You must request consideration, and get a decision, before starting work.

REPAIR PROCEDURE A - MDX

NOTE: Before doing any repairs or services, review the SRS components in this area.
  1. Make sure you have the anti-theft codes for the radio and the navigation system (if equipped). Write down your client's radio station presets.
  2. Disconnect the battery negative cable. Wait at least 3 minutes before continuing.
  3. Remove the access panel from under the steering wheel.
  4. Unplug the cable reel 2P connector from the driver's airbag 2P connector.

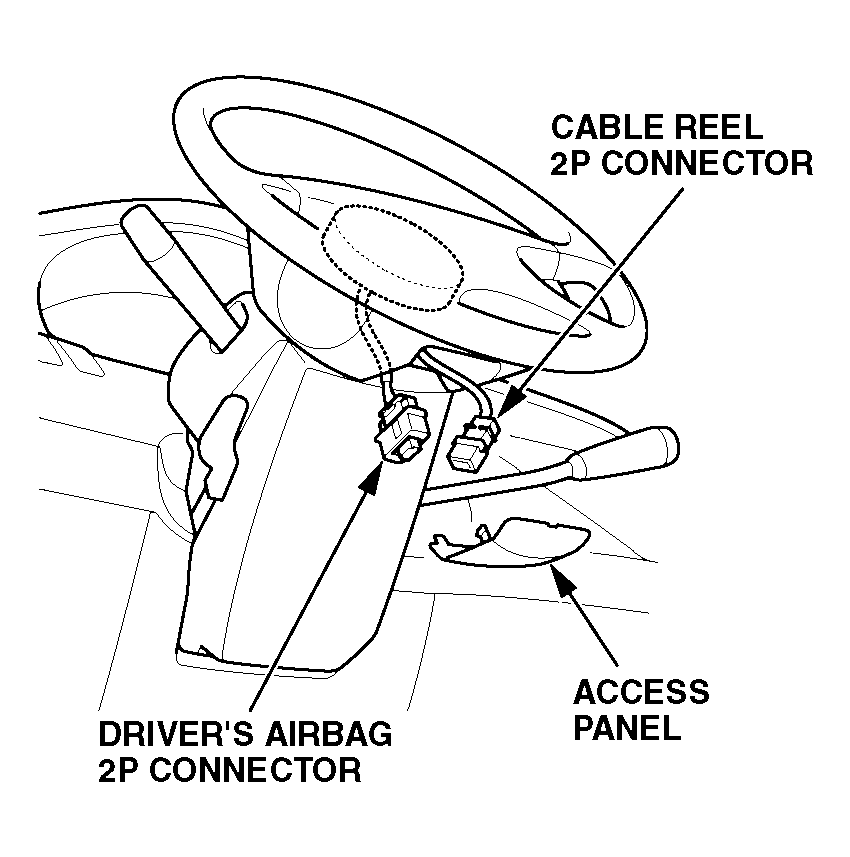

    Fig 1: Unplugging Cable Reel 2P Connector
    G04124784
    NOTE: When unplugged, the driver's airbag connector is automatically shorted.
  5. Remove the two steering wheel covers. Use a Torx T30 bit to remove the two Torx bolts, then throw the torx bolts away. Unplug the horn wire, and remove the driver's airbag.

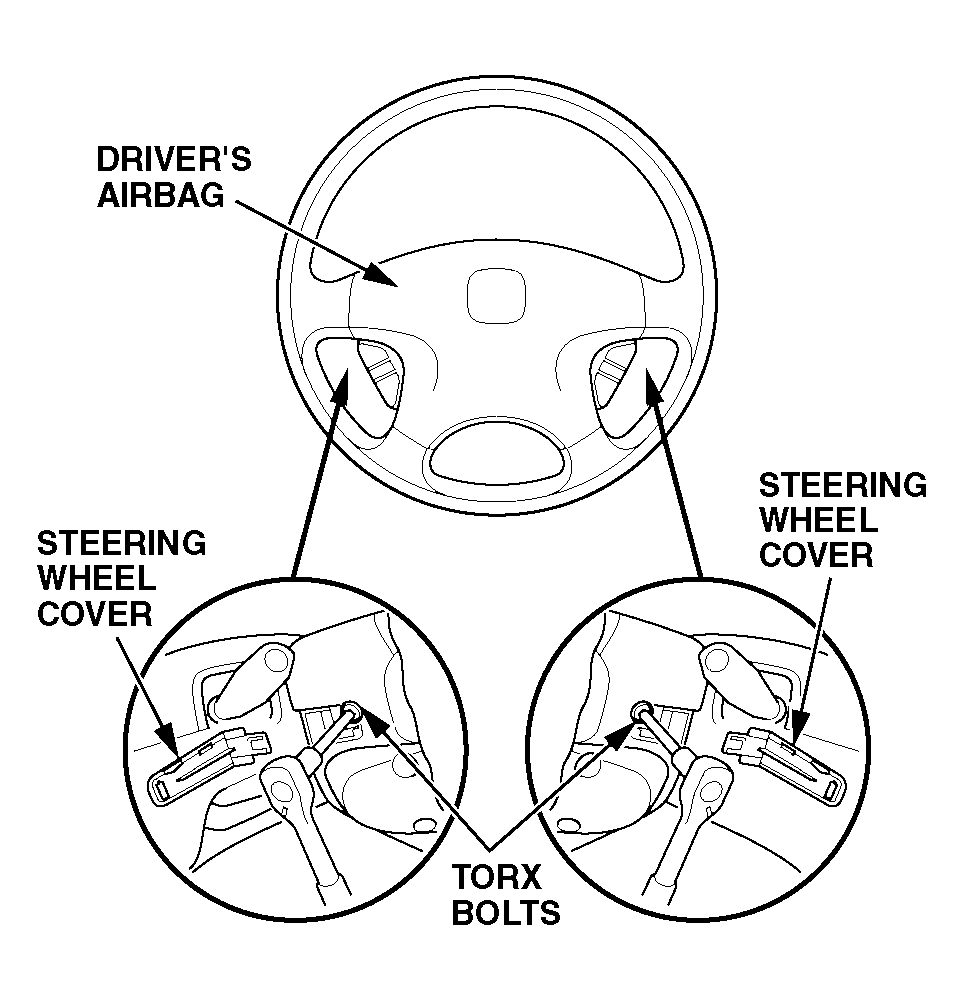

    Fig 2: Removing Steering Wheel Covers
    G04124785
  6. Unplug the connectors from the remote audio and cruise control switches.

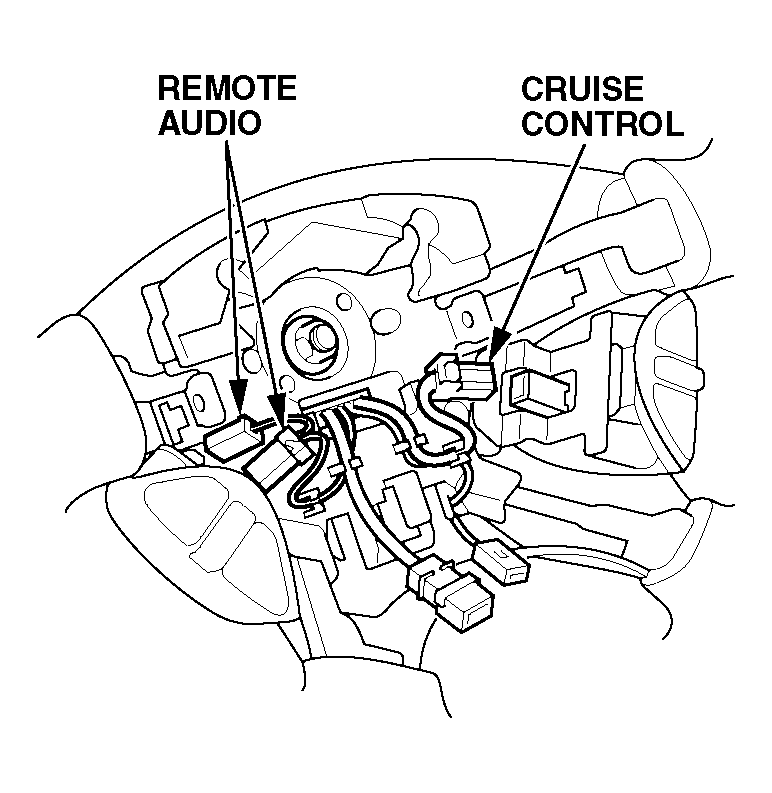

    Fig 3: Unplugging Connectors From Remote Audio And Cruise Control Switches
    G04124786
  7. Make sure the front wheels are aligned straight ahead.
  8. Remove the steering wheel nut. Make an alignment mark on the steering wheel shaft with a paint stripe.
  9. Using a commercially available steering wheel puller, release the steering wheel from the steering shaft. While pulling the steering wheel, note these items:
    • Do not tap on the steering wheel or the steering column shaft when removing the steering wheel.
    • If you thread the puller bolts into the wheel hub more than five threads, the bolts will hit the cable reel and damage it. To prevent this, install a pair of jam nuts five threads up on each puller bolt.

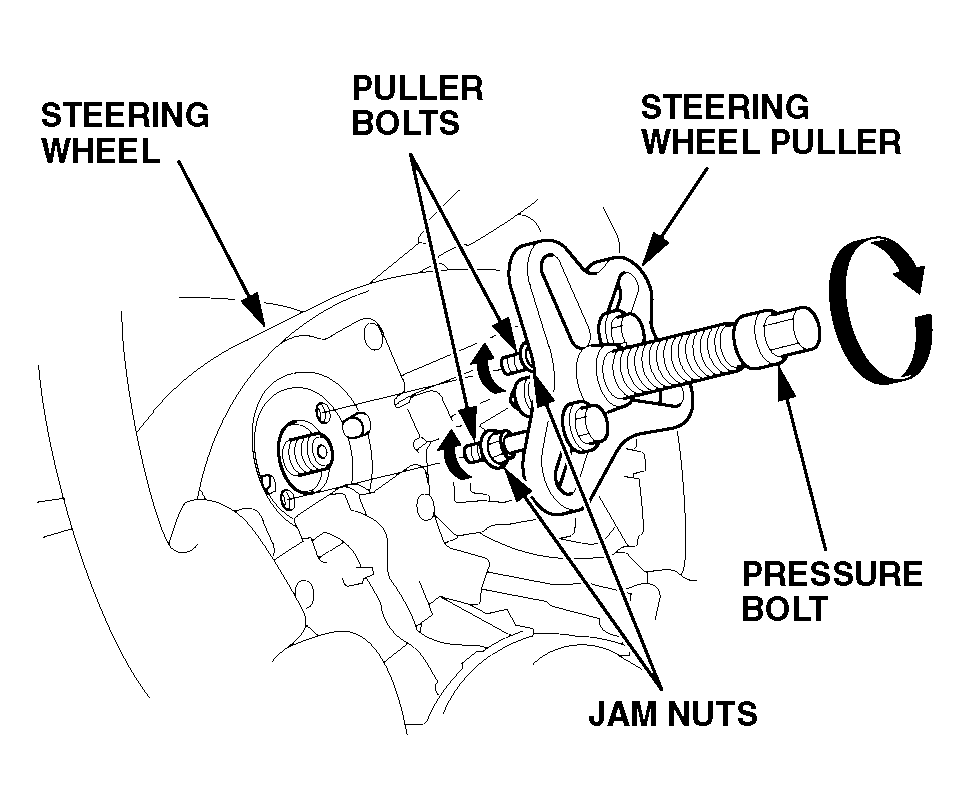

      Fig 4: Installing Jam Nuts
      G04124787
  10. Remove the steering wheel puller, and then remove the steering wheel from the steering column.
  11. Remove the dashboard lower cover.
  12. Remove the upper and lower steering column covers.
    Fig 5: Removing Upper And Lower Steering Column Covers
    G04124788
  13. Unplug the SRS main harness 2P connector, and then detach the dashboard wire harness 4P connector from the cable reel. Remove the screws from the cable reel, and then remove the cable reel from the column.

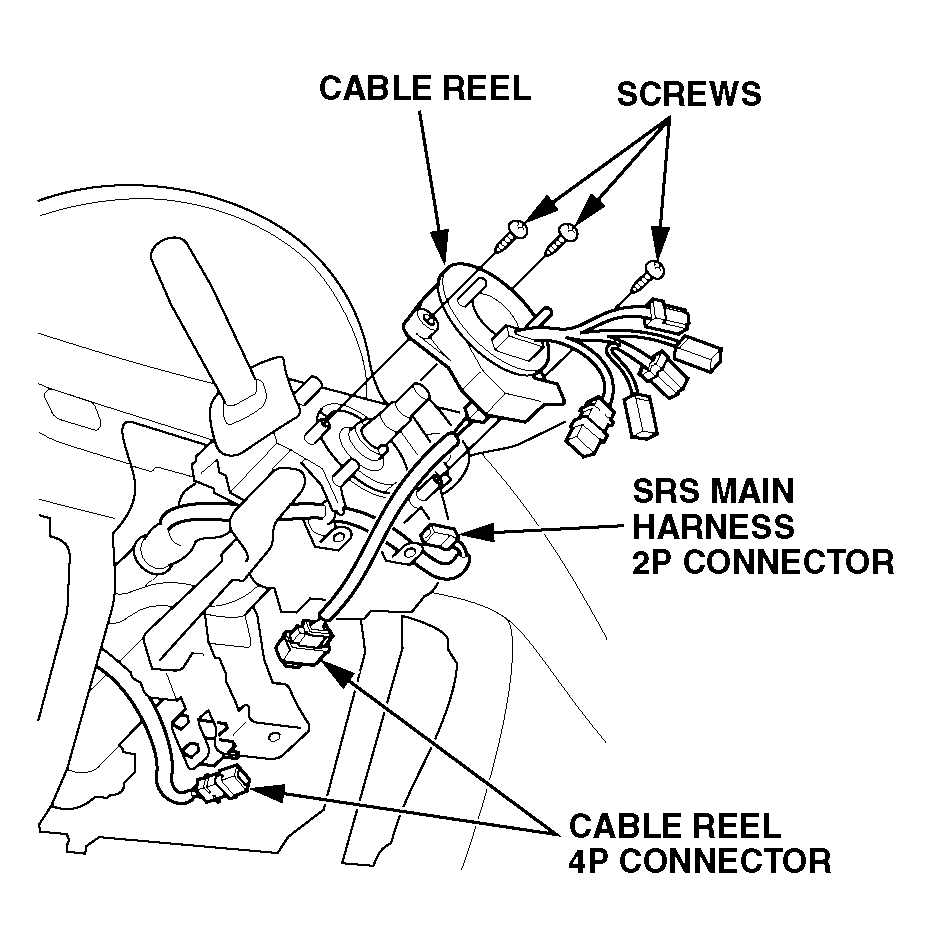

    Fig 6: Removing Cable Reel
    G04124789
  14. Unplug the headlights switch 14P connector and the wiper/washer 8P connectors. Remove the three screws from the combination switch assembly, and then remove the combination switch from the steering column.

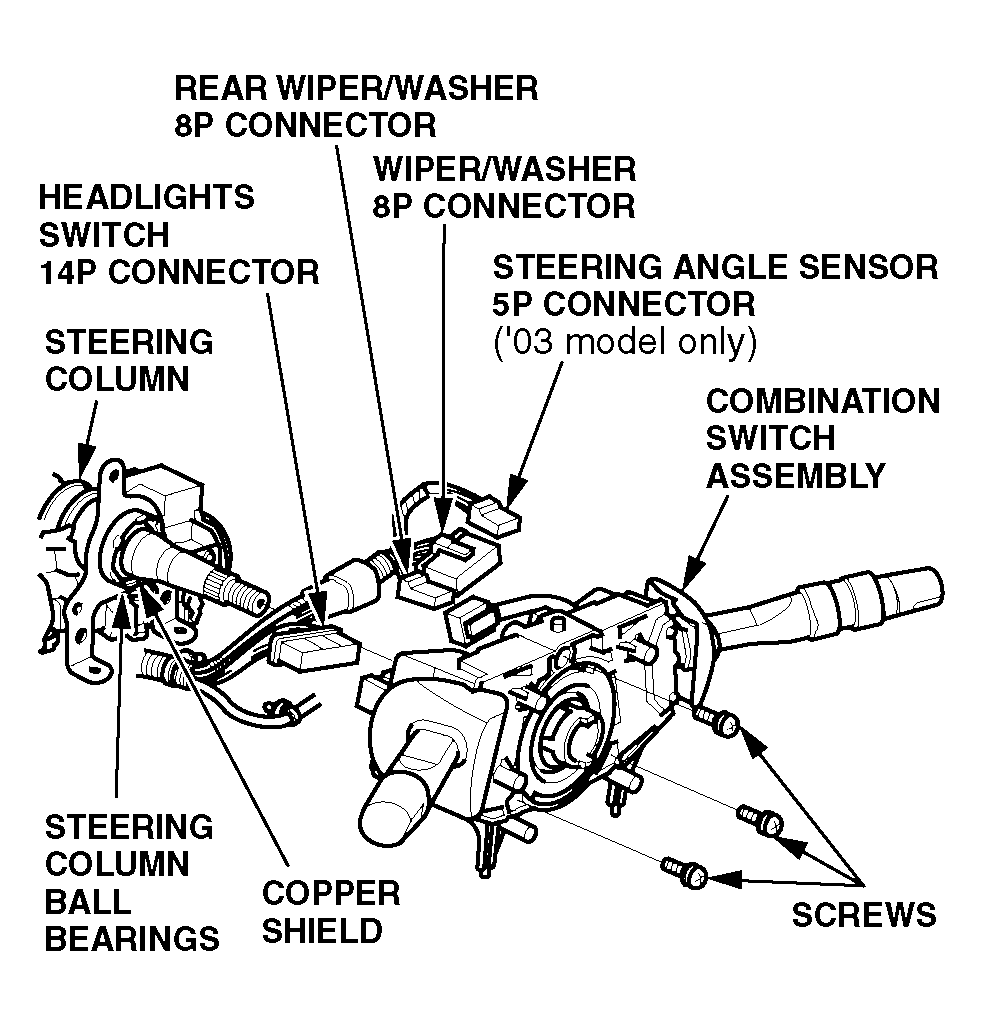

    Fig 7: Removing Combination Switch Assembly
    G04124790
  15. Use a small, flat-tipped screwdriver to lightly dimple the shield in eight places as shown.
    NOTE: Do not press too hard with the screwdriver when dimpling the shield. The dimples should be deep enough to catch your fingernail on. If the dimples are too deep, the steering effort will be too high, and the steering column will have to be replaced.
    Fig 8: Dimpling Shield
    G04124791
  16. Reinstall the combination switch assembly, and secure it with the three original screws. Reconnect the light switch 14P connector and both wiper/ washer 8P connectors.
  17. Position the cancel sleeve on the combination switch assembly so that the projections on the sleeve are aligned vertically.
    Fig 9: Positioning Cancel Sleeve On Combination Switch Assembly
    G04124792
  18. Carefully reinstall the cable reel with the original screws.
  19. Reconnect the SRS main harness 2P connector and the cable reel 2P connector, and then plug the dashboard wire harness 4P connector and cable reel 4P connector together.
  20. Reinstall the upper and lower steering column covers with the original screws.
  21. If needed, center the cable reel by first rotating the reel clockwise until it stops, and then rotating it counterclockwise (approximately two and a half turns) until the arrow mark on the reel label points straight up.
  22. Line up the paint marks, and reinstall the steering wheel. Torque the nut to 49 N.m (36 lb-ft).
  23. Plug in the connectors for the remote audio and cruise control switches.
  24. Reconnect the horn wire, and reinstall the driver's airbag using new Torx bolts. Torque the bolts to 9.8 N.m (7.2 lb-ft). Reinstall the steering wheel covers.
  25. Reinstall the lower dashboard cover.
  26. Reconnect the 2P cable reel connector to the driver's airbag 2P connector.
  27. Reinstall the upper access panel.
  28. Reconnect the battery negative cable.
  29. Do the idle learn procedure:
    • Make sure all electrical items are turned off, then start the engine.
    • Let the engine reach its normal operating temperature (the cooling fan cycles twice).
    • Let the engine idle (throttle fully closed and with all electrical items off) for 10 minutes.
  30. When you start the engine, check that the SRS system indicator comes on and then goes off after a few seconds.
  31. Check the operation of the horn, the turn signals, the remote audio buttons, and the cruise control switches.
  32. Enter the anti-theft codes for the radio and the navigation system (if equipped), and then enter your client's radio station presets.
  33. Set the clock.

REPAIR PROCEDURE B - 3.2CL/3.2TL

NOTE: Before doing any repairs or services, review the SRS components in this area and the precautions and procedures in the appropriate service manual.
  1. Make sure you have the anti-theft codes for the radio and the navigation system (if equipped). Write down your client's radio station presets.
  2. Disconnect the battery negative cable. Wait at least 3 minutes before continuing.
  3. Remove the access panel from under the steering wheel.
  4. 1999-01 3.2TL and 2001-02 3.2CL models: Unplug the cable reel 2P connector from the driver's airbag 2P connector.

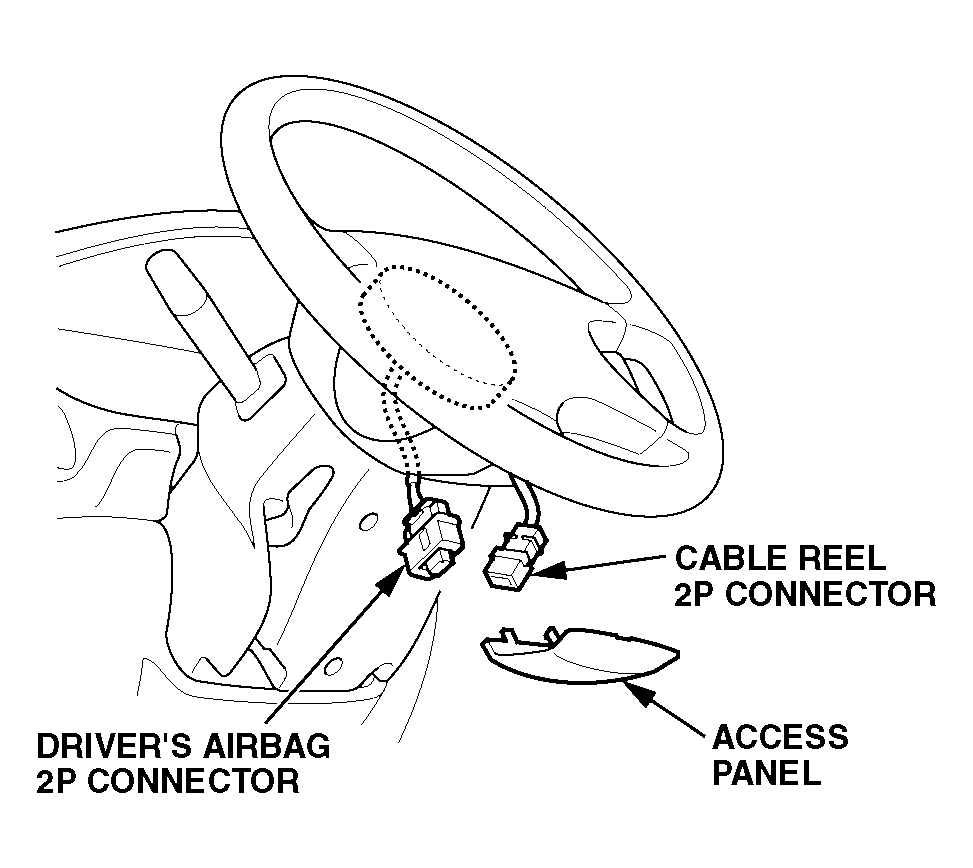

    Fig 10: Removing Access Panel
    G04124793

    2002-03 3.2TL and 2003 3.2CL: Unplug the cable reel 4P connector from the driver's airbag 4P connector.

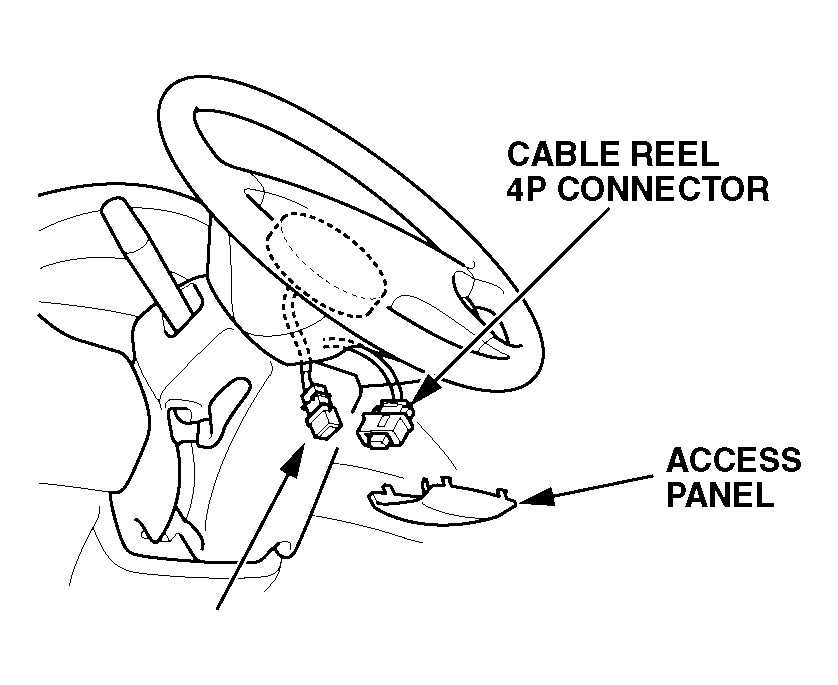

    Fig 11: Unplugging Cable Reel 4P Connector
    G04124794
    NOTE: When unplugged, the driver's airbag connector is automatically shorted.
  5. Remove the two steering wheel covers. Use a Torx T30 bit to remove the two Torx bolts, then throw the Torx bolts away. Unplug the horn wire, and remove the driver's airbag.

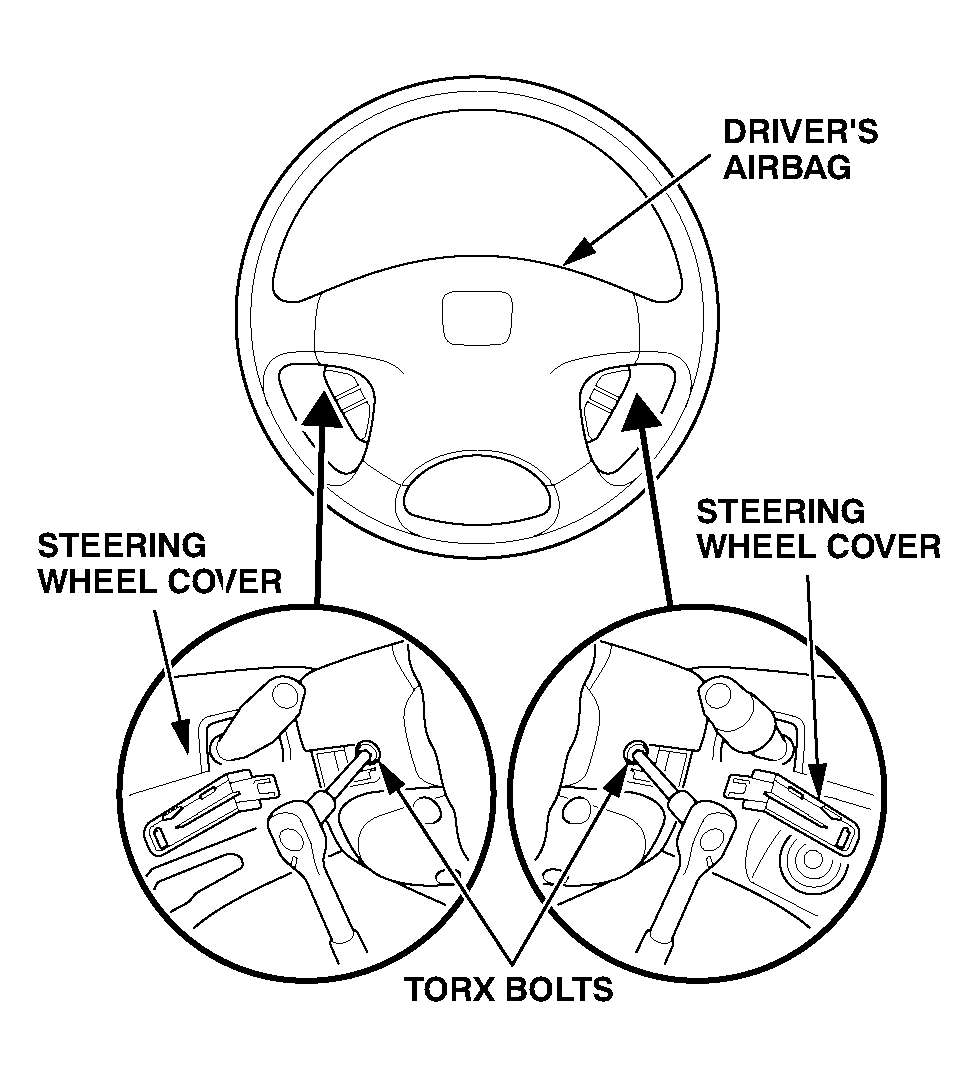

    Fig 12: Removing Steering Wheel Covers
    G04124795
  6. 1999-01 3.2TL and 2001-02 3.2CL models: Unplug the connectors from the remote audio and cruise control switches.

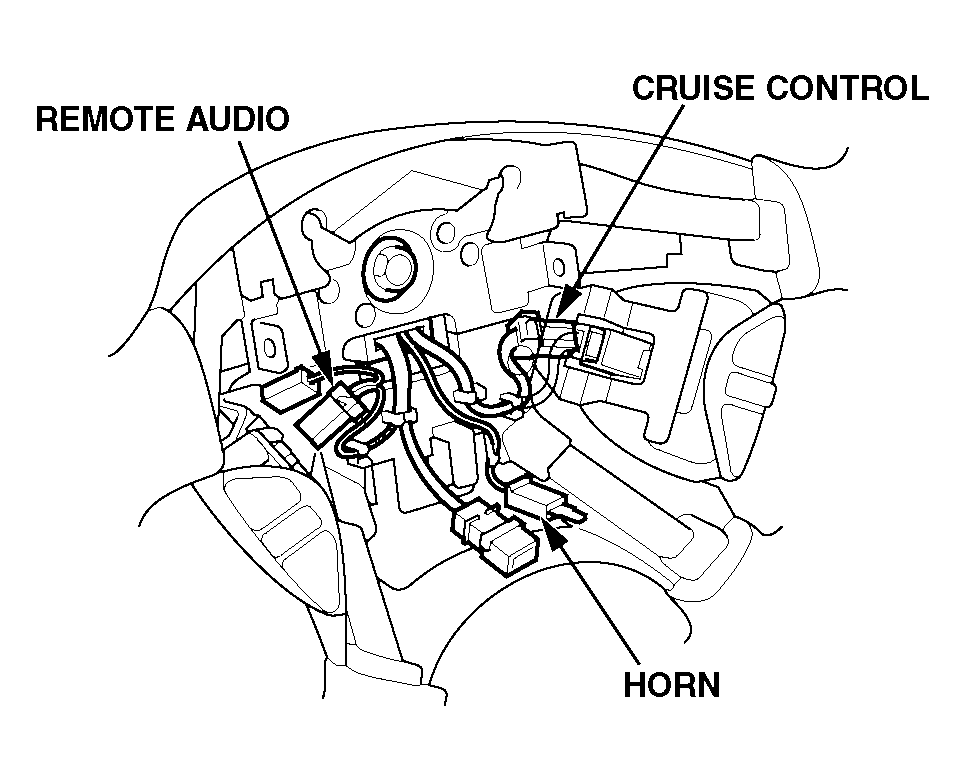

    Fig 13: Unplugging Connectors From Remote Audio And Cruise Control Switches
    G04124796

    2002-03 3.2TL and 2003 3.2CL models: Unplug the connectors from the remote audio and cruise control switches.

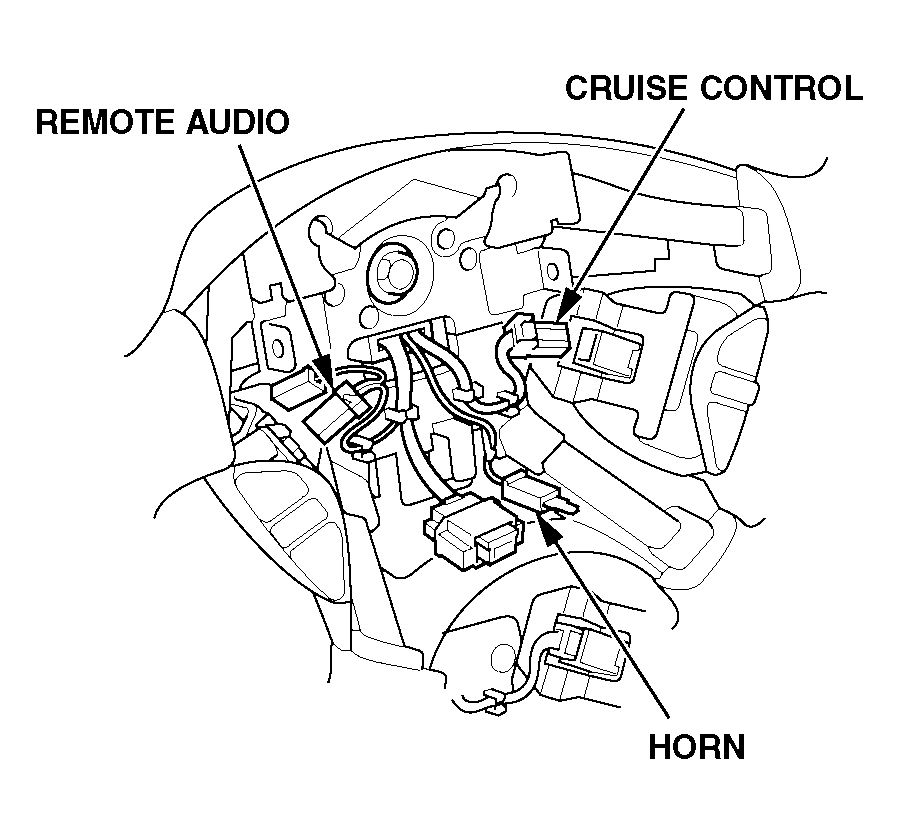

    Fig 14: Identifying Cruise Control Switches
    G04124797
  7. Make sure the front wheels are aligned straight ahead.
  8. Remove the steering wheel nut/bolt. Make an alignment mark on the steering wheel shaft with a paint stripe.
  9. Using a commercially available steering wheel puller, release the steering wheel from the steering shaft. While pulling the steering wheel, note these items:
    • Do not tap on the steering wheel or the steering column shaft when removing the steering wheel.
    • If you thread the puller bolts into the wheel hub more than five threads, the bolts will hit the cable reel and damage it. To prevent this, install a pair of jam nuts five threads up on each puller bolt.
      Fig 15: Releasing Steering Wheel From Steering Shaft
      G04124798
  10. Remove the steering wheel puller, and then remove the steering wheel from the steering column.
  11. Remove the dashboard lower cover.
  12. Remove the upper and lower steering column covers.

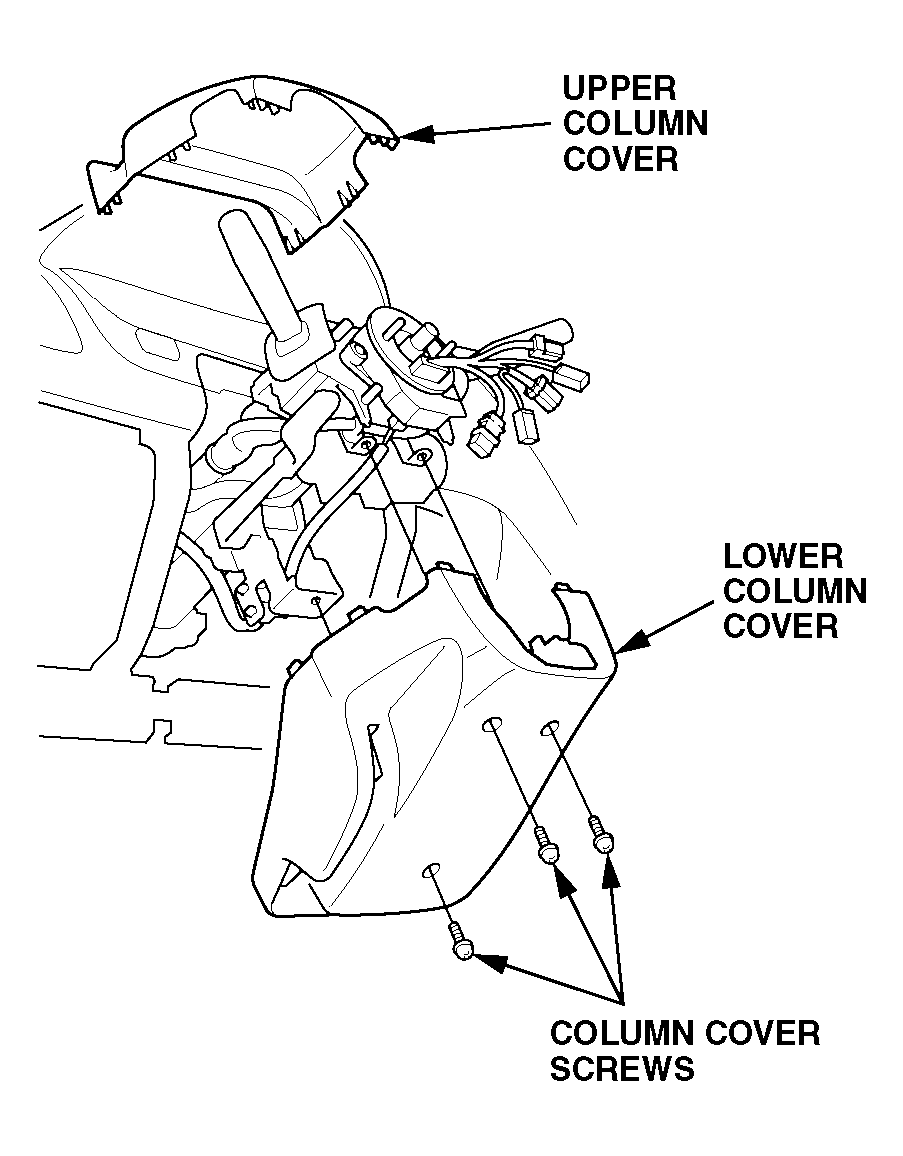

    Fig 16: Removing Upper And Lower Steering Column Covers
    G04124799
  13. 1999-01 3.2TL and 2001-02 3.2CL models: Unplug the SRS main harness 4P connector, and then detach the dashboard wire harness 2P connector from the cable reel. Remove the screws from the cable reel, and then remove the cable reel from the column.

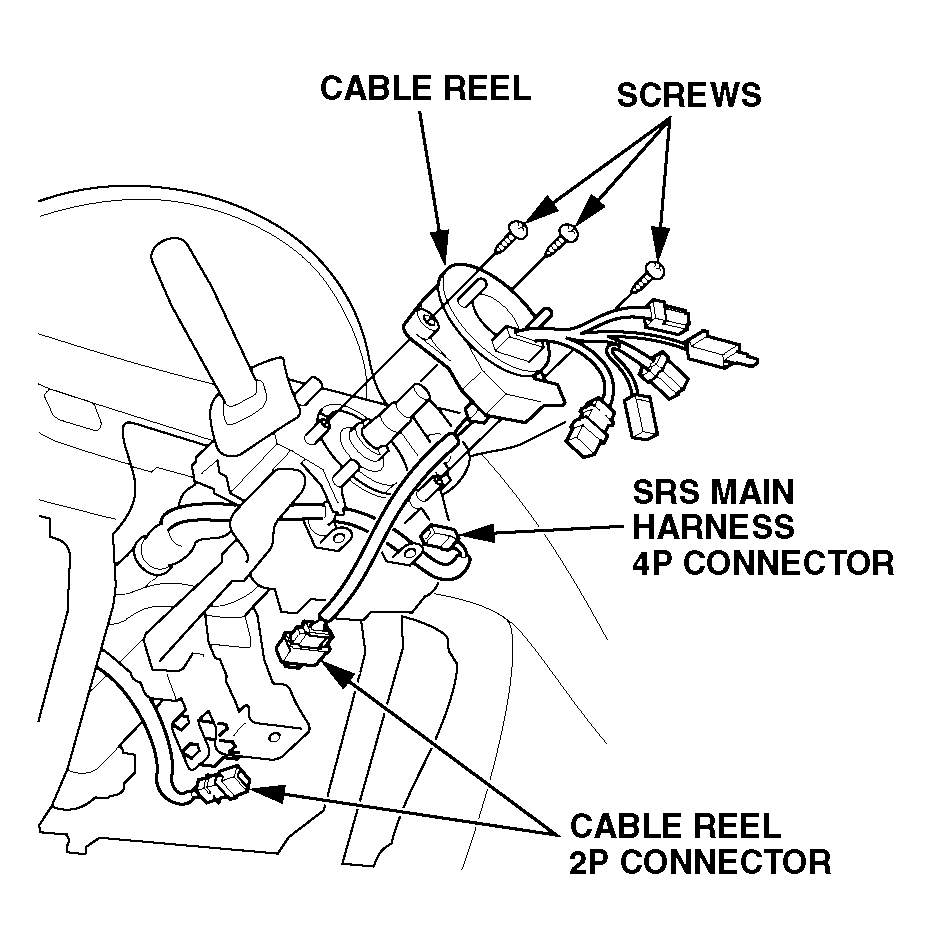

    Fig 17: Unplugging SRS Main Harness 4P Connector
    G04124800

    2002-03 3.2TL and 2003 3.2CL models: Unplug the SRS main harness 4P connector and the dashboard wire harness 4P connector from the cable reel 4P connectors. Release the tab, and then remove the cable reel from the column.

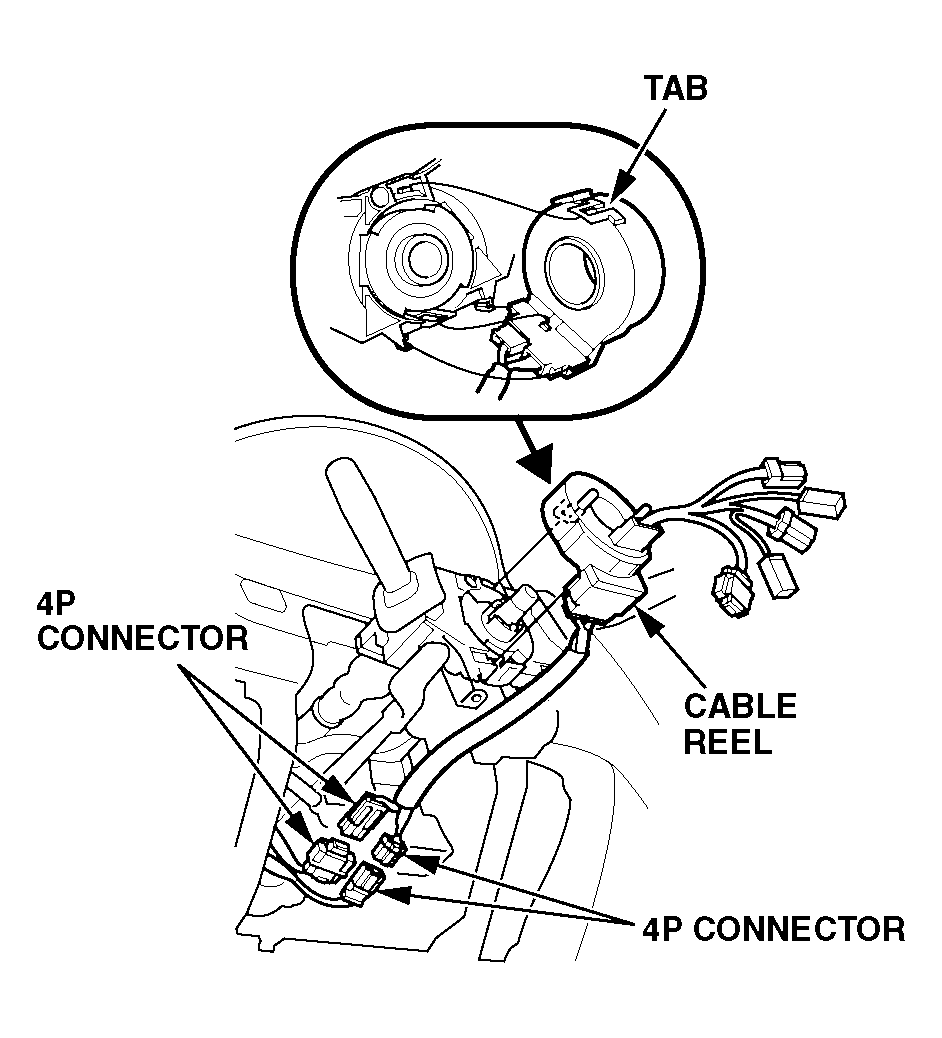

    Fig 18: Identifying Tab
    G04124801
  14. 1999-01 3.2TL and 2001-02 3.2CL models: Unplug the headlights switch 14P connector, the steering angle sensor 5P connector (on Type-S models), and both wiper/washer switch 8P connectors. Remove the three screws from the combination switch assembly, and then remove the combination switch from the steering column.

    2002-03 3.2TL and 2003 3.2CL models: Unplug the headlights switch 14P connector, the steering angle sensor 5P connector (on Type-S models), and the wiper/washer switch 8P connector. Remove the three screws from the combination switch assembly, and then remove the combination switch from the steering column.

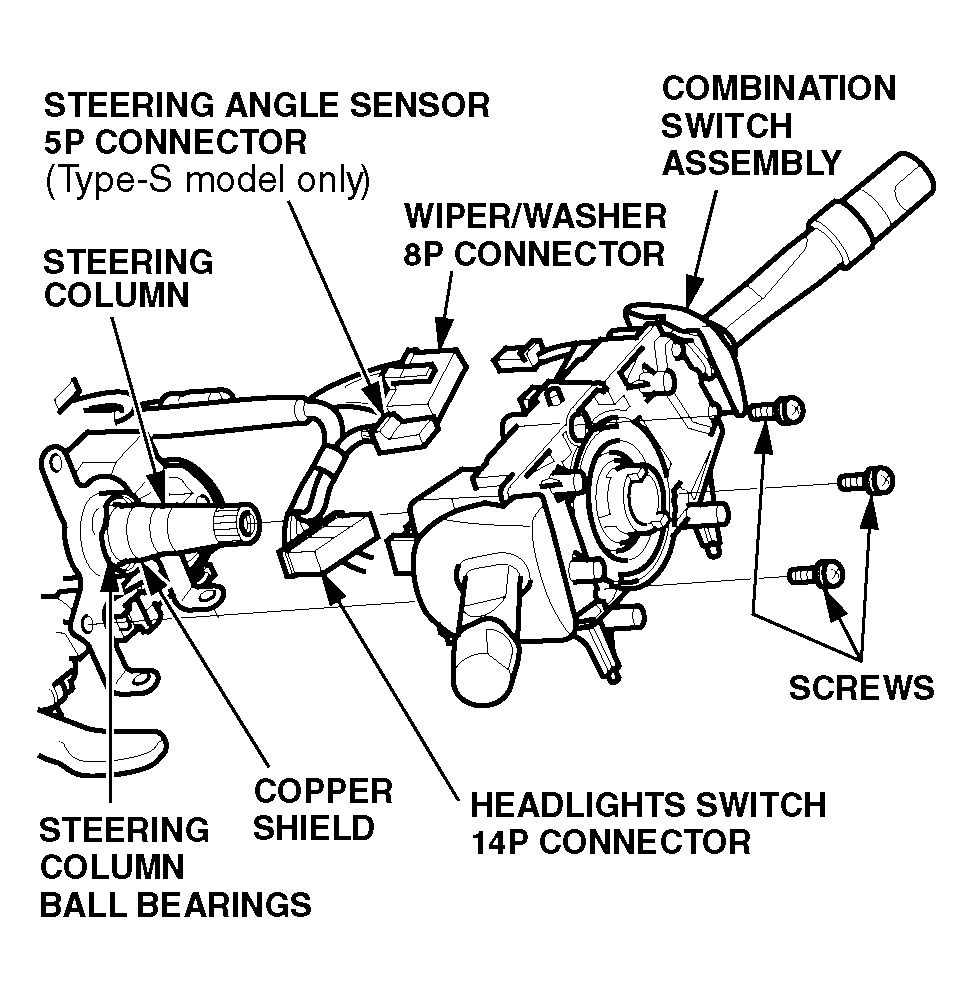

    Fig 19: Removing Combination Switch Assembly
    G04124802
  15. Use a small, flat-tipped screwdriver to lightly dimple the shield in eight places as shown.
    NOTE: Do not press too hard with the screwdriver when dimpling the shield. The dimples should be deep enough to catch your fingernail on. If the dimples are too deep, the steering effort will be too high, and the steering column will have to be replaced.

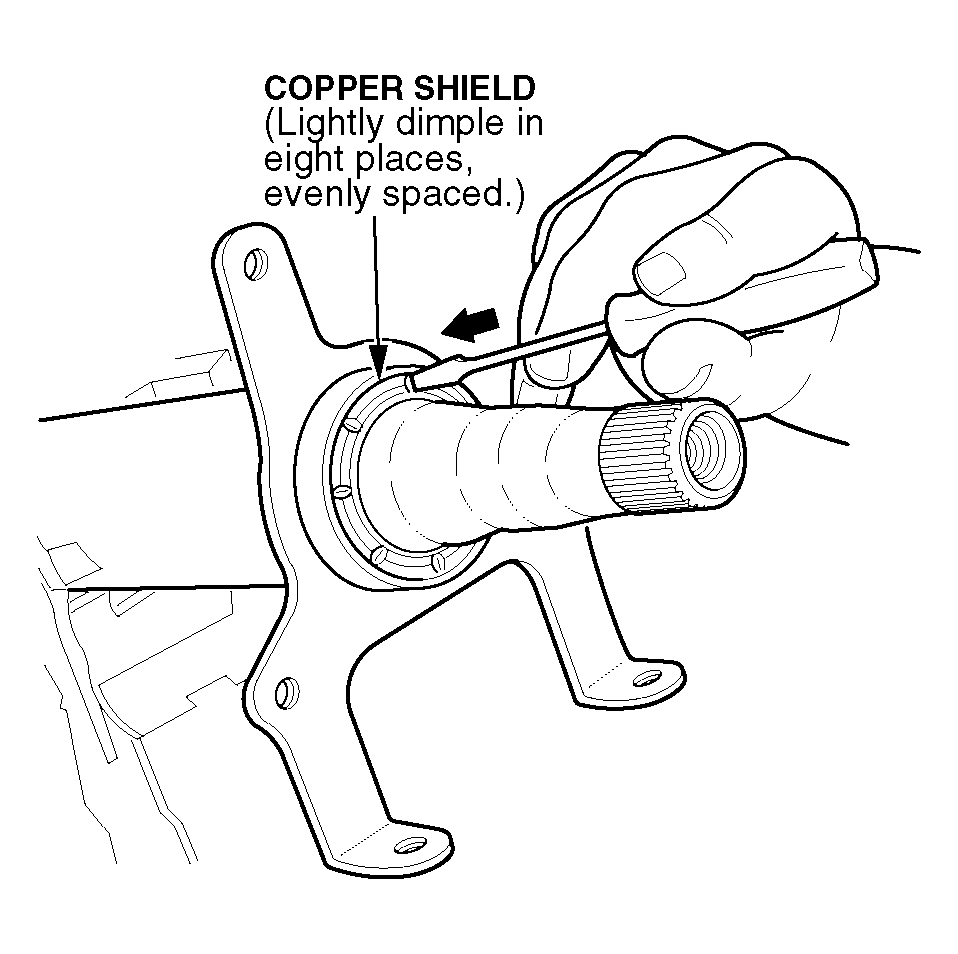

    Fig 20: Dimpling Shield
    G04124803
  16. 1999-01 3.2TL and 2001-02 3.2CL models: Reinstall the combination switch assembly, and secure it with the three original screws. Reconnect the light switch 14P connector, the steering angle sensor 5P connector (on Type-S models), and both wiper/washer switch 8P connectors.

    2002-03 3.2TL and 2003 3.2CL models: Reinstall the combination switch assembly, and secure it with the three original screws. Reconnect the light switch 14P connector, the steering angle sensor 5P connector (on Type-S models), and the wiper/ washer switch 8P connector.

  17. Position the cancel sleeve on the combination switch assembly so that the projections on the sleeve are aligned vertically.

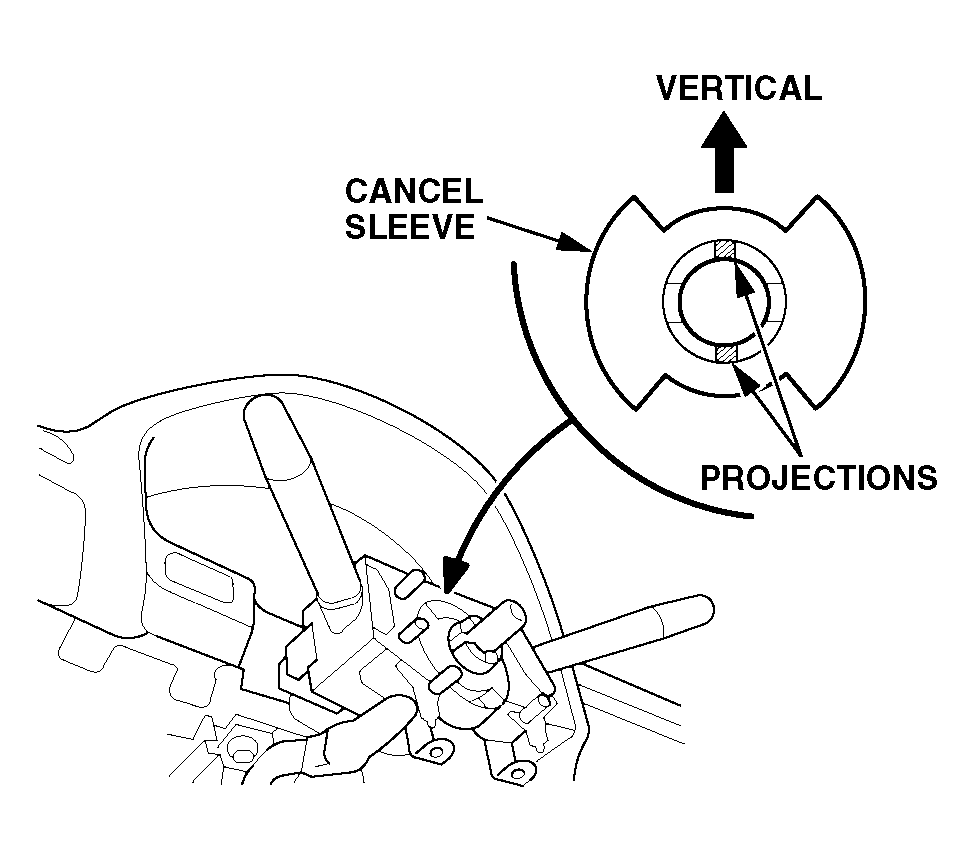

    Fig 21: Positioning Cancel Sleeve On Combination Switch Assembly
    G04124804
  18. Carefully reinstall the cable reel with the original screws.
  19. 1999-01 3.2TL and 2001-02 3.2CL models: Reconnect the SRS main harness 2P connector and the cable reel 2P connector, and then plug the dashboard wire harness 4P connector and cable reel 4P connector together.

    2002-03 3.2TL and 2003 3.2CL models: Reconnect the SRS main harness 4P and dashboard wire harness 4P connectors to the cable reel 4P connectors.

  20. Reinstall the upper and lower steering column covers with the original screws.
  21. If needed, center the cable reel by first rotating the reel clockwise until it stops and then rotating it counterclockwise (approximately two and a half turns) until the arrow mark on the reel label points straight up.
  22. Line up the paint marks, and reinstall the steering wheel. Torque the bolt to 38 N.m (28 lb-ft).
  23. Plug in the connectors for the remote audio and cruise control switches.
  24. Reconnect the horn wire, and reinstall the driver's airbag using new Torx bolts. Torque the bolts to 9.8 N.m (7.2 lb-ft). Reinstall the steering wheel covers.
  25. 1999-01 3.2TL and 2001-02 3.2CL models: Reconnect the 2P cable reel connector to the driver's airbag 2P connector.

    2002-03 3.2TL and 2003 3.2CL models: Reconnect the 4P cable reel connector to the driver's airbag 4P connector.

  26. Reinstall the access panel.
  27. Reinstall the lower dashboard cover.
  28. Reconnect the battery negative cable.
  29. Do the idle learn procedure:
    • Make sure all electrical items are turned off, then start the engine.
    • Let the engine reach its normal operating temperature (the cooling fan cycles twice).
    • Let the engine idle (throttle fully closed and with all electrical items off) for 10 minutes.
  30. When you start the engine, check that the SRS system indicator comes on and then goes off after a few seconds.
  31. Check the operation of the horn, the turn signals, the remote audio buttons, and the cruise control switches.
  32. 2002-03 3.2TL and 2003 3.2CL models: Initialize the driver's window auto-up feature:
    • Turn the ignition switch to ON (II).
    • Make sure the driver's window is fully closed.
    • Push down and hold the window switch. Make sure the window goes all the way down.
    • Pull back and hold the window switch. Make sure the window goes all the way up, then hold the switch for at least 2 more seconds.
  33. Enter the anti-theft codes for the radio and the navigation system (if equipped), and then enter your client's radio station presets.
  34. Set the clock.
