Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS/TCS Control Unit (Except Type S) | Behind right kick panel. See Figure. |
| ABS/TCS Modulator Unit | On right rear of engine compartment. |
| Cruise Control Unit | Behind left side of dash. See Figure. |
| Door Multiplex Control Unit | In driver's door. |
| Driver's Multiplex Control Unit | On driver's underdash fuse/relay box. See Figure. |
| DRL Control Unit (Canada) | Behind left side of dash. See Figure. |

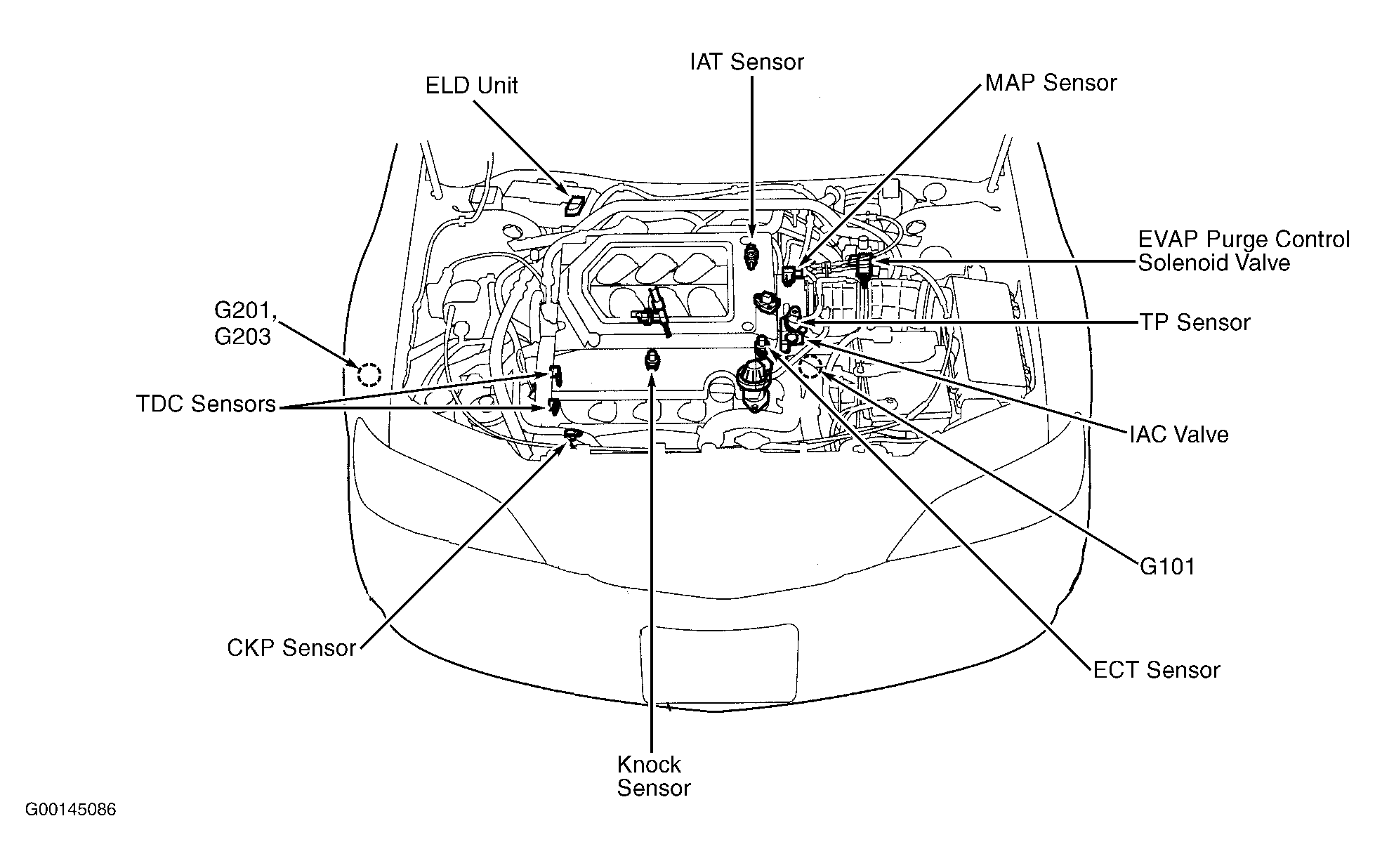

| ELD Unit | In underhood ABS fuse/relay box. See Figure. |
| Immobilizer Receiver Unit | On right side of steering column. |
| IMRC Unit | Behind right kick panel. |
| Navigation Unit | In trunk, below left side of package tray. |
| OPDS Unit | On side of front passenger's seat back. |
| Passenger's Multiplex Control Unit | On passenger's underdash fuse/relay box. See Figure. |
| PCM | Behind center of dash. See Figure. |
| Power Seat Control Unit | On bottom of driver's seat. |
| Power Window Control Unit | On driver's door. |

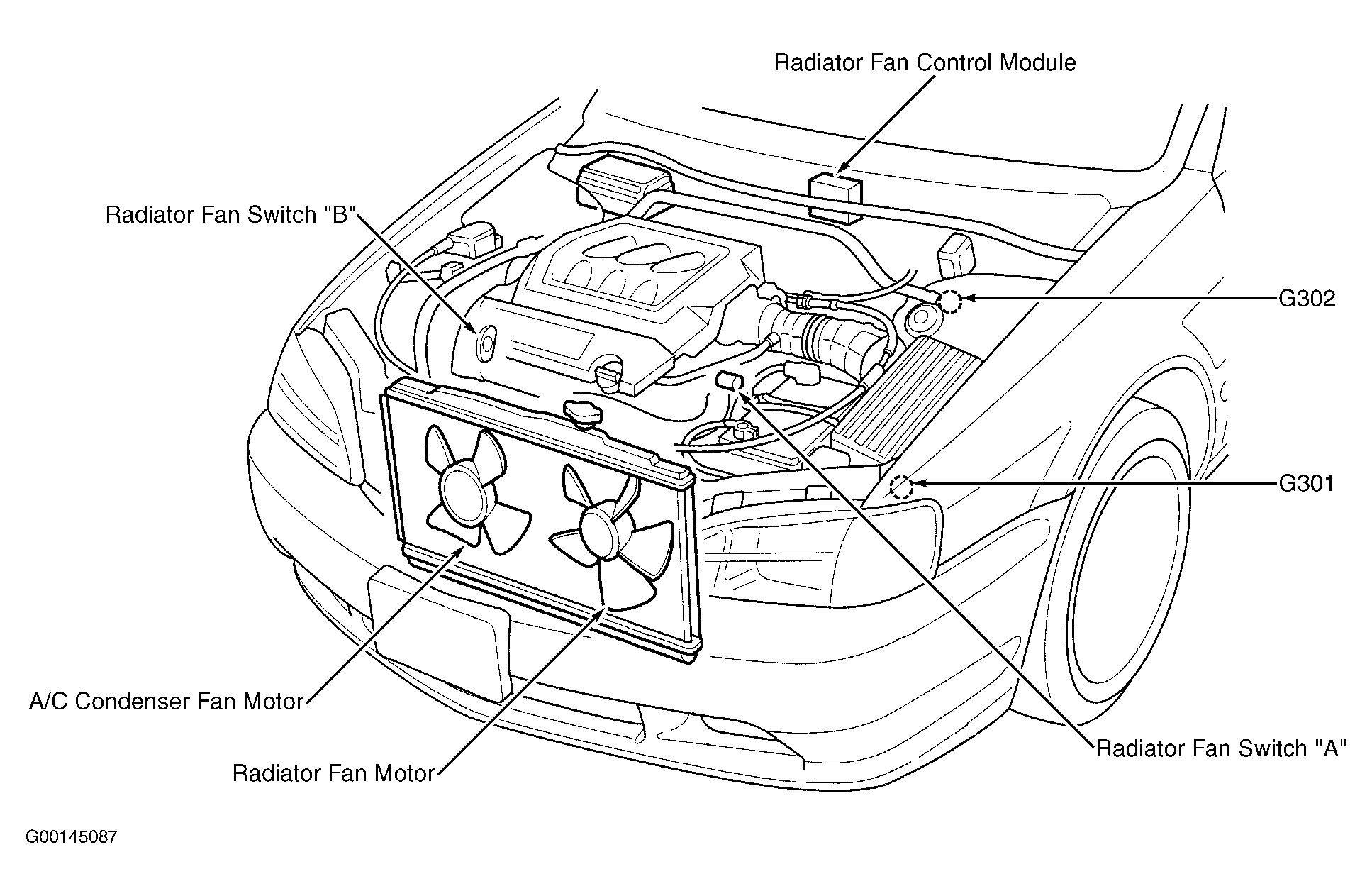

| Radiator Fan Control Module | Behind center of dash. See Figure. |
| SRS Unit | Under front of center console. See Figure. |
| VSA Control Unit | Behind right kick panel. |
| VSA Modulator Unit | On right side of engine compartment. |
