Steering Gearbox Overhaul: Notes

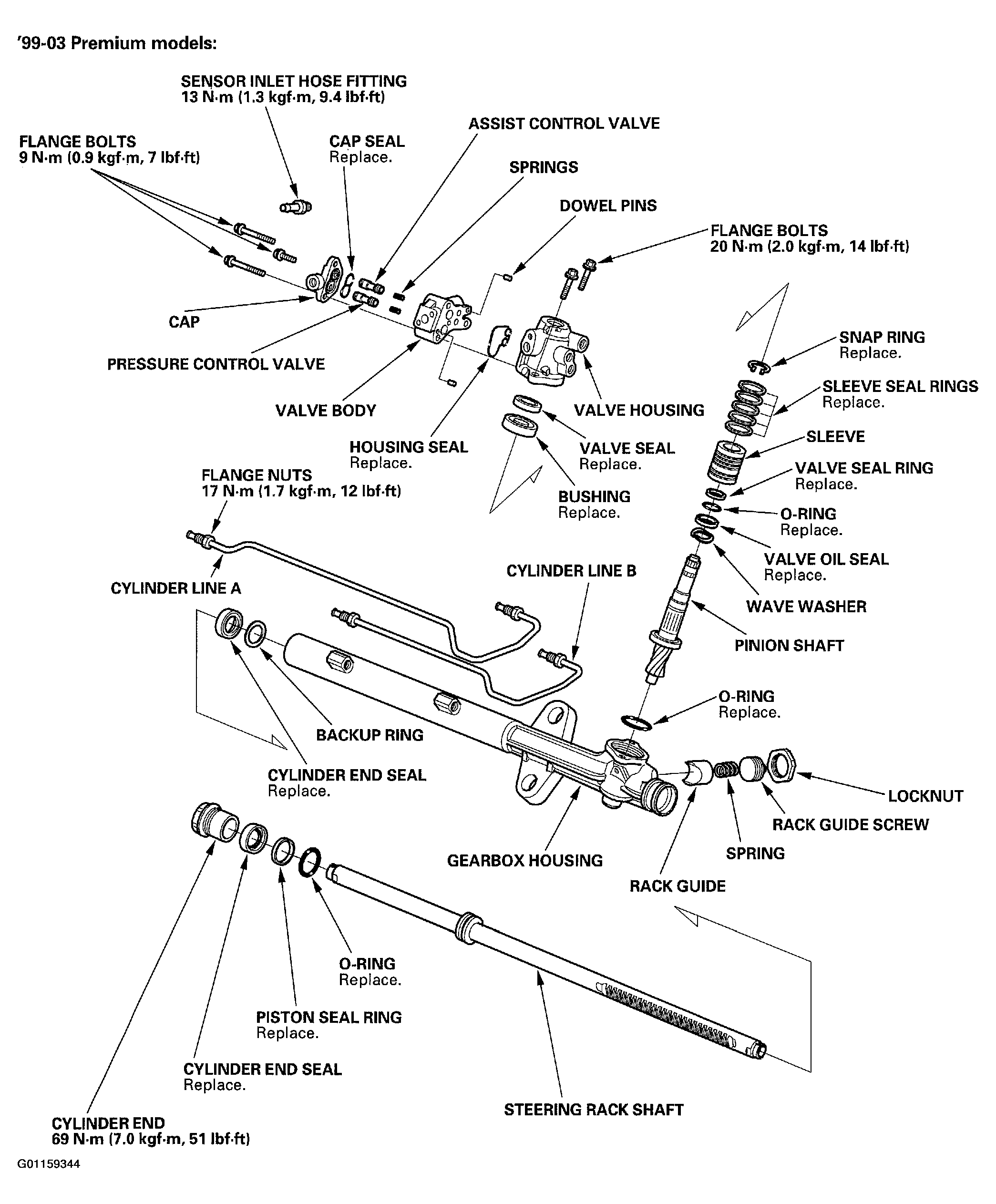

Fig 1: Exploded View Of Steering Gearbox (1999-2003 - Premium Models)
G01159344Courtesy of AMERICAN HONDA MOTOR CO., INC.
