Shift Lock Solenoid Test

  1. Remove the console panel. See Console Panel .
  2. Disconnect the shift lock solenoid 2P connector.

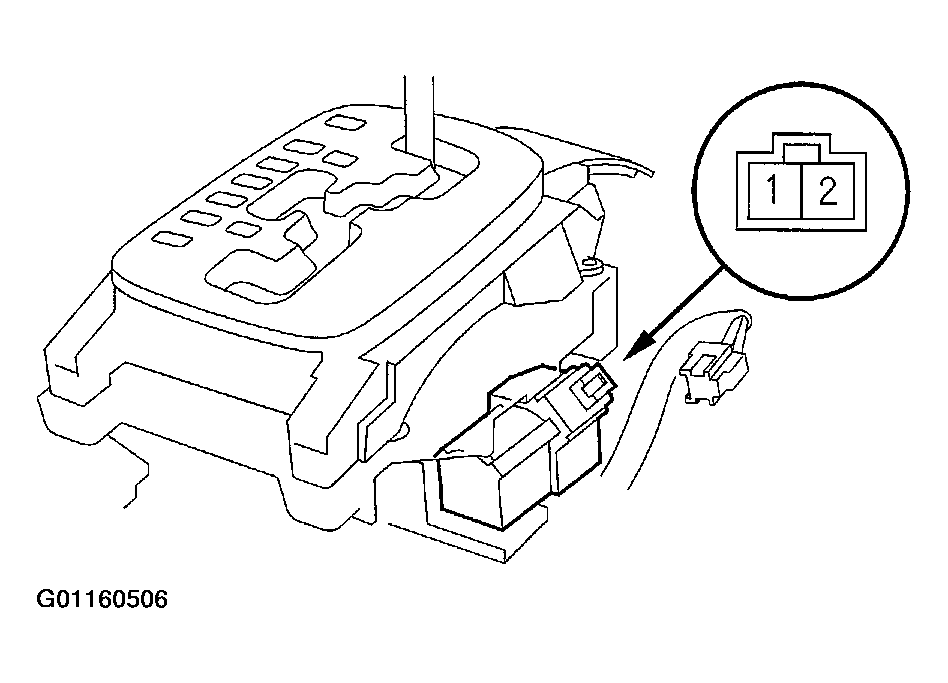

    Fig 1: Disconnecting Shift Lock Solenoid 2P Connector
    G01160506Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Connect the No. 1 terminal of the shift lock solenoid connector to the battery positive terminal, and connect the No. 2 terminal to the battery negative terminal.
  4. Check that the shift lever can be moved from the P  position. Release the battery terminals from the shift lock solenoid connector. Move the shift lever back to the P  position, and make sure it locks.
    NOTE: Do not connect power to the No. 2 terminal (reverse polarity) or you will damage the diode inside the solenoid.
  5. Check that the shift lock releases when the release lever is pushed, and check that it locks when the release lever is released.
  6. If the solenoid does not work, replace it.
