Cruise Control Main Switch Test/ Replacement

Remove the driver's dashboard lower cover (see DASHBOARD LOWER COVER REMOVAL/INSTALLATION ).
Release the clips of the main switch, and push the main switch (A) out of the panel, then disconnect the 8P connector (B) from the main switch.

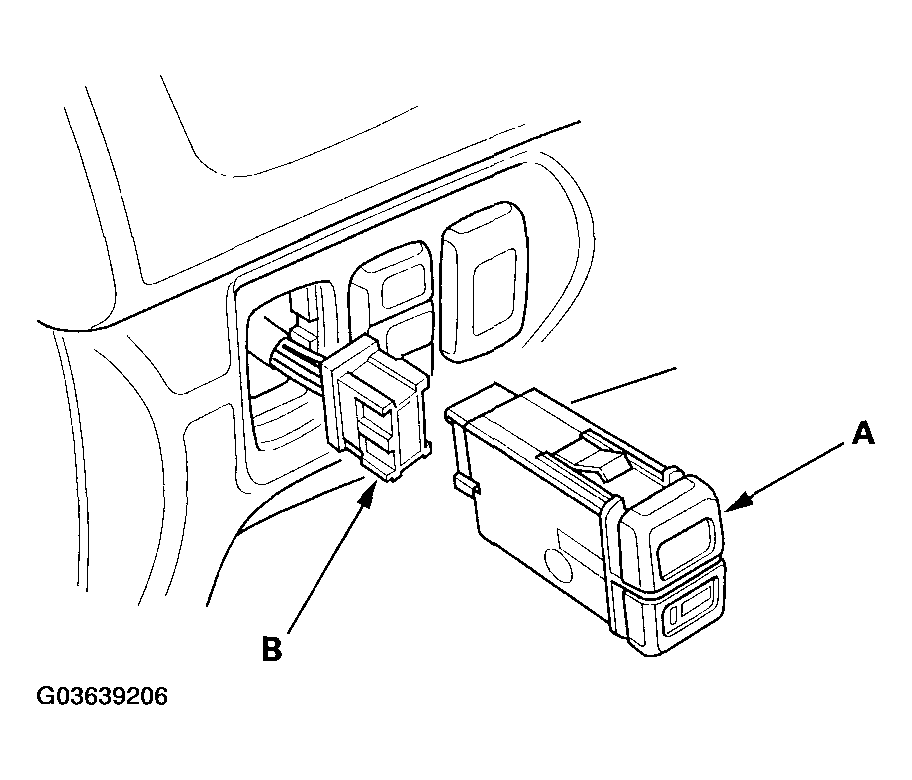

Fig 1: Pushing Main Switch Out Of Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to Fig 2 . If there is no continuity, replace illumination bulbs (A) or the switch.

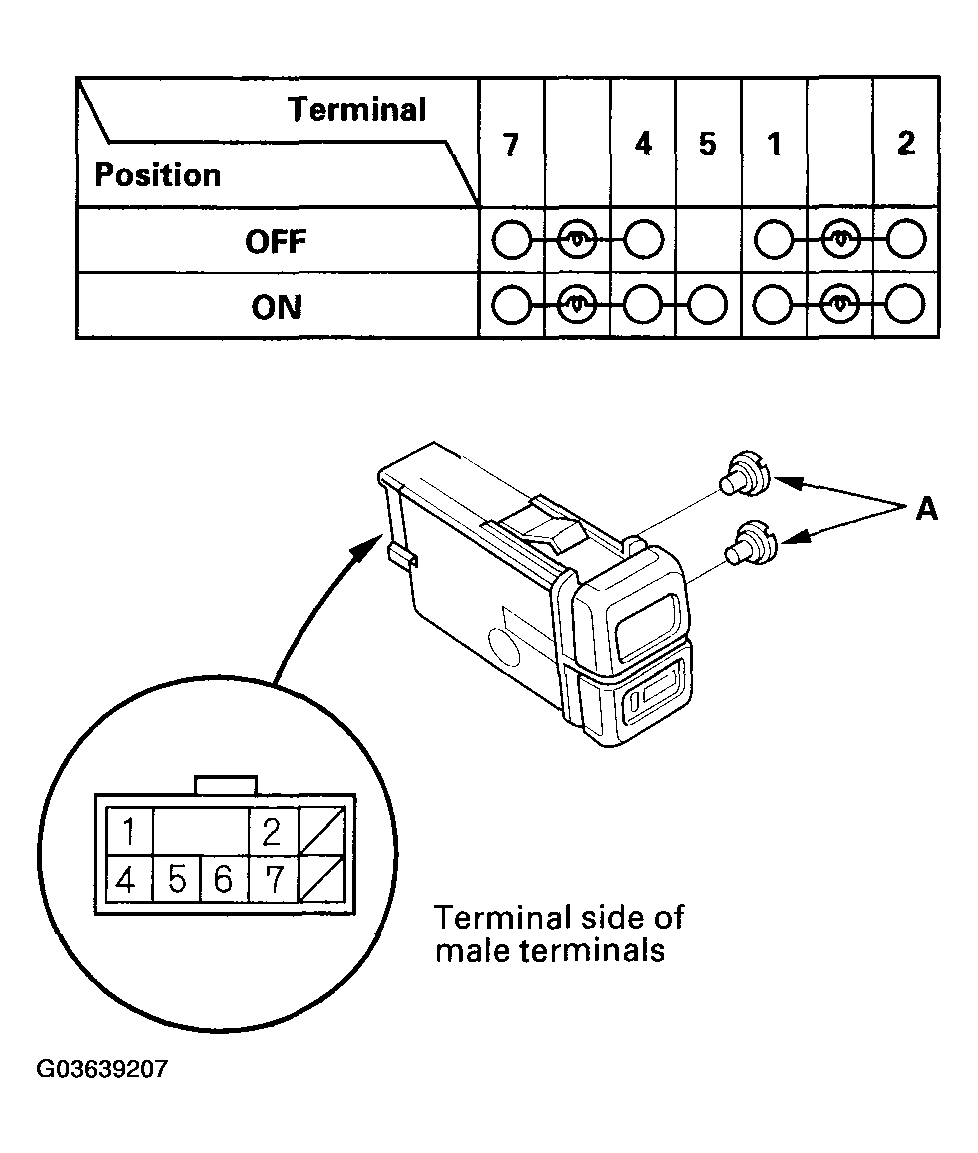

Fig 2: Checking For Continuity Between Terminals In Each Switch Position
Courtesy of AMERICAN HONDA MOTOR CO., INC.
