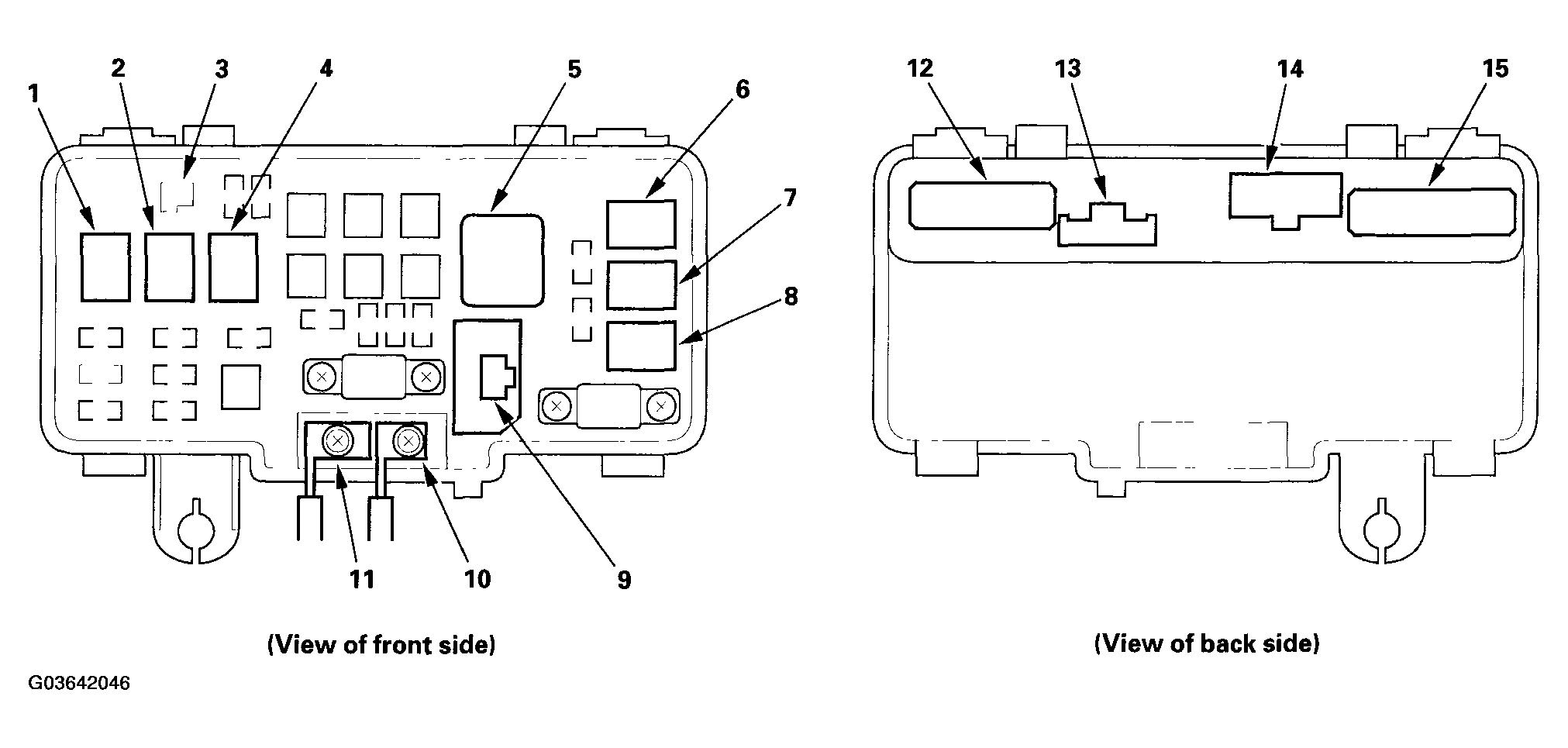

Under-hood Fuse/Relay Box
FUSE/RELAY DESCRIPTION
| Socket | Ref | Terminal | Connects to |
|---|---|---|---|
| A | 15 | 18 | Right engine compartment wire harness
|
| A/C compressor clutch relay | 8 | 4 | |
| A/C condenser fan relay | 6 | 4 | |
| B | 14 | 7 | Right engine compartment wire harness
|
| Blower motor relay | 5 | 4 | |
| C | 13 | 3 | Right engine compartment wire harness
|
| D | 12 | 16 | Right engine compartment wire harness
|
| Diode | 3 | - | Not used |
| ELD unit | 9 | 3 | Right engine compartment wire harness
|
| Horn relay | 4 | 4 | |
| Headlight relay 1 (right) | 1 | 4 | |
| Headlight relay 2 (left) | 2 | 4 | |
| Radiator fan relay | 7 | 4 | |
| T1 | 11 | Starter cable (see STARTER CABLE ) | |
| T101 | 10 | Alternator +B cable |
