Drive Belt Inspection

  1. Inspect the belt for cracks and damaged. If the belt is cracked or damaged, replace it.
  2. Check that the auto-tensioner indicator (A) is within the standard range (B) as shown in Fig 1. If it is out of the standard range, replace the drive belt (see DRIVE BELT REPLACEMENT  ).

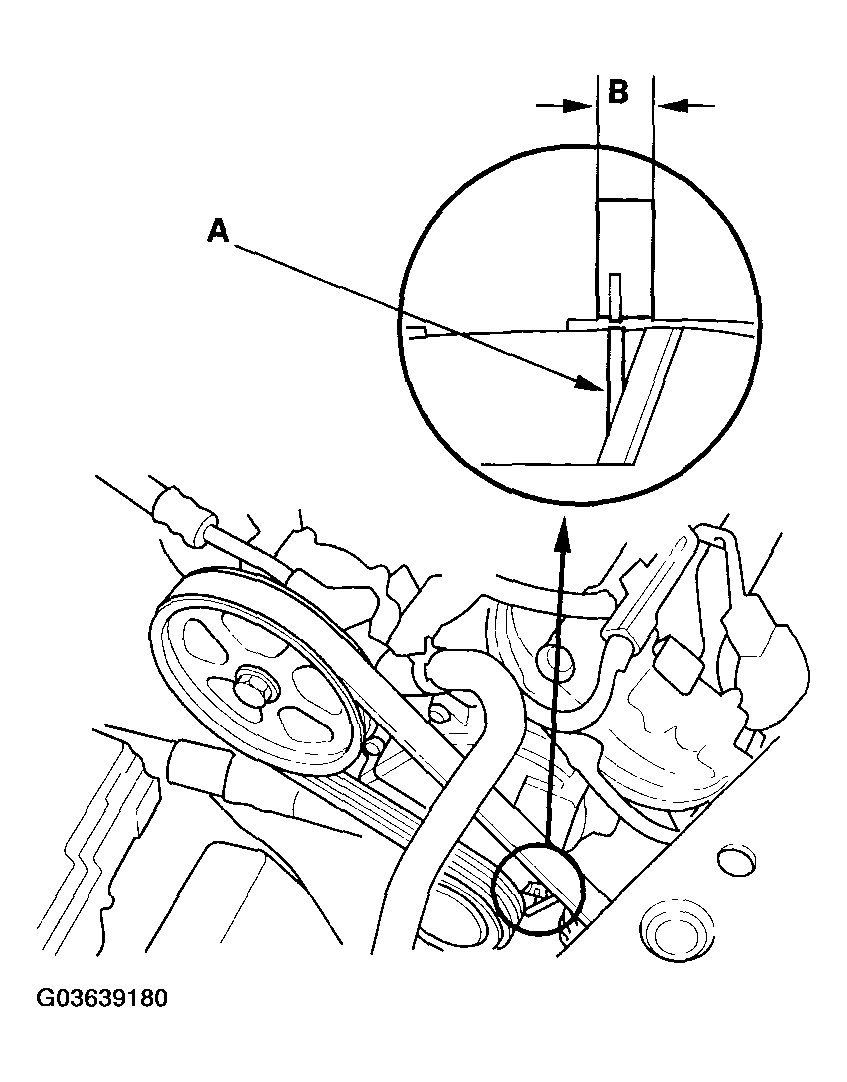

    Fig 1: Checking Auto-Tensioner Is Within Standard Range
    G03639180Courtesy of AMERICAN HONDA MOTOR CO., INC.
