Drive Belt Replacement

Special Tools Required

Belt tension release tool Snap-on YA9317 or equivalent, commercially available

1. Move the auto-tensioner (A) with the belt tension release tool to relieve tension from the drive belt (B), then remove the drive belt.

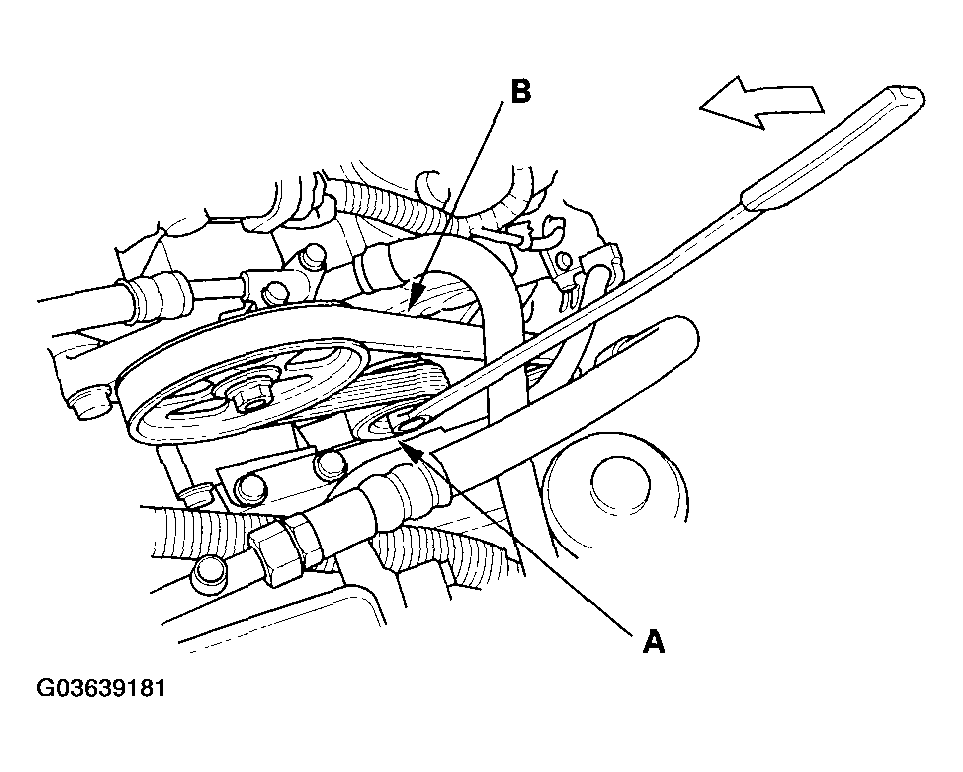

   Fig 1: Moving Auto-Tensioner With Belt Tension Release Tool To Relieve Tension From Drive Belt

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Install the new belt in the reverse order of removal.
   NOTE: For belt routing, see the Charging System Component Location Index (see COMPONENT LOCATION INDEX & DRIVE BELT ROUTING  ).
