Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Component Location

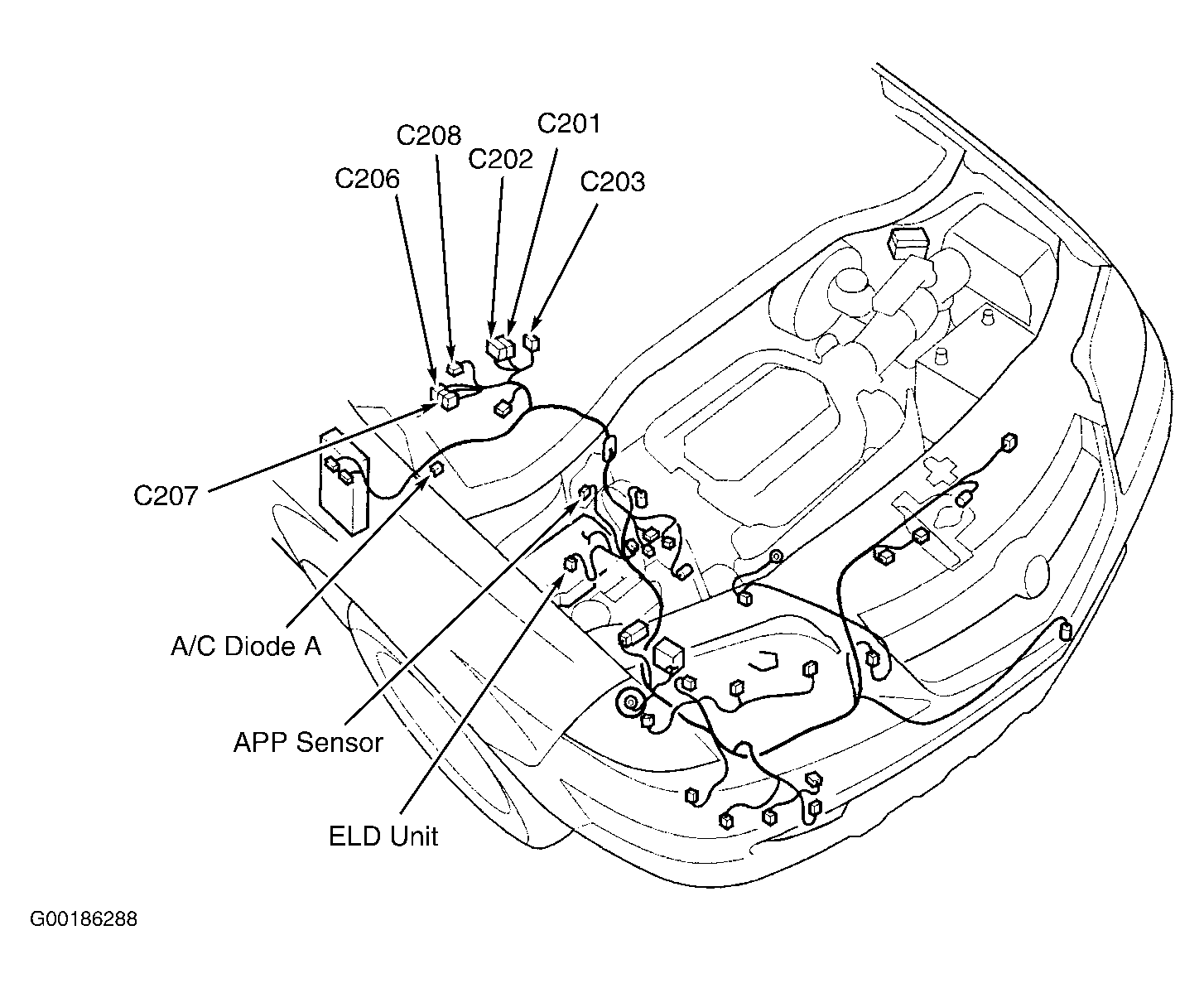

A/C Diode A Behind right side of dash. See Figure .
A/C Diode B Behind right side of dash, taped to harness.
A/C Diode C Behind right side of dash, taped to harness.
Automatic Lighting Diode Under left side of dash.
Driver's Underdash Fuse/Relay Box Behind left end of dash.
ELD Unit In underhood fuse/relay box.
Front Blower Power Transistor Under right side of dash.

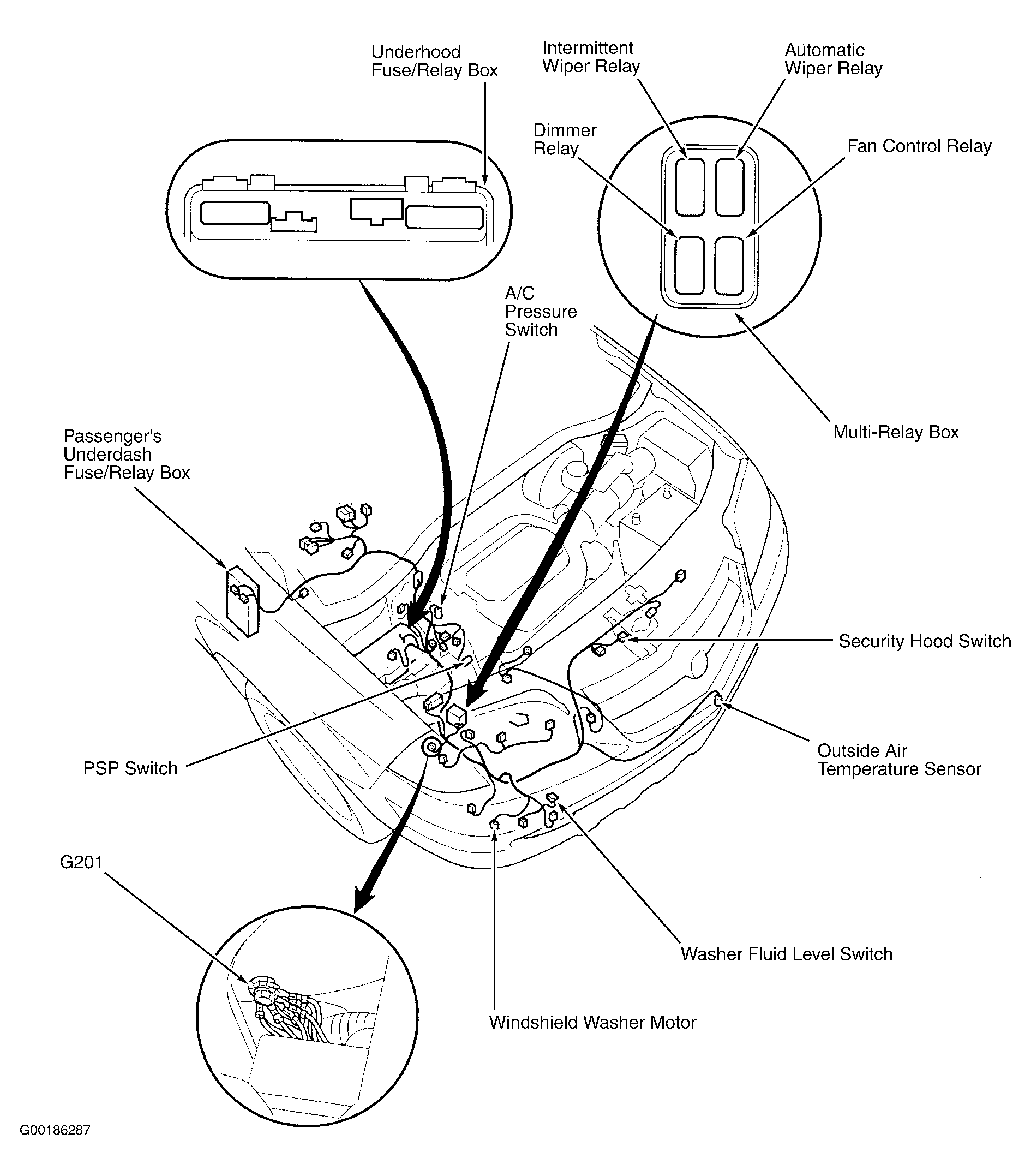

Multi-Relay Box At right front of engine compartment. See Figure .
Passenger's Underdash Fuse/Relay Box Behind right kick panel. See Figure .
Under-Hood Fuse/Relay Box At right side of engine compartment. See Figure .
Under-Hood Multi-Fuse Box On left side of engine compartment.
