Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

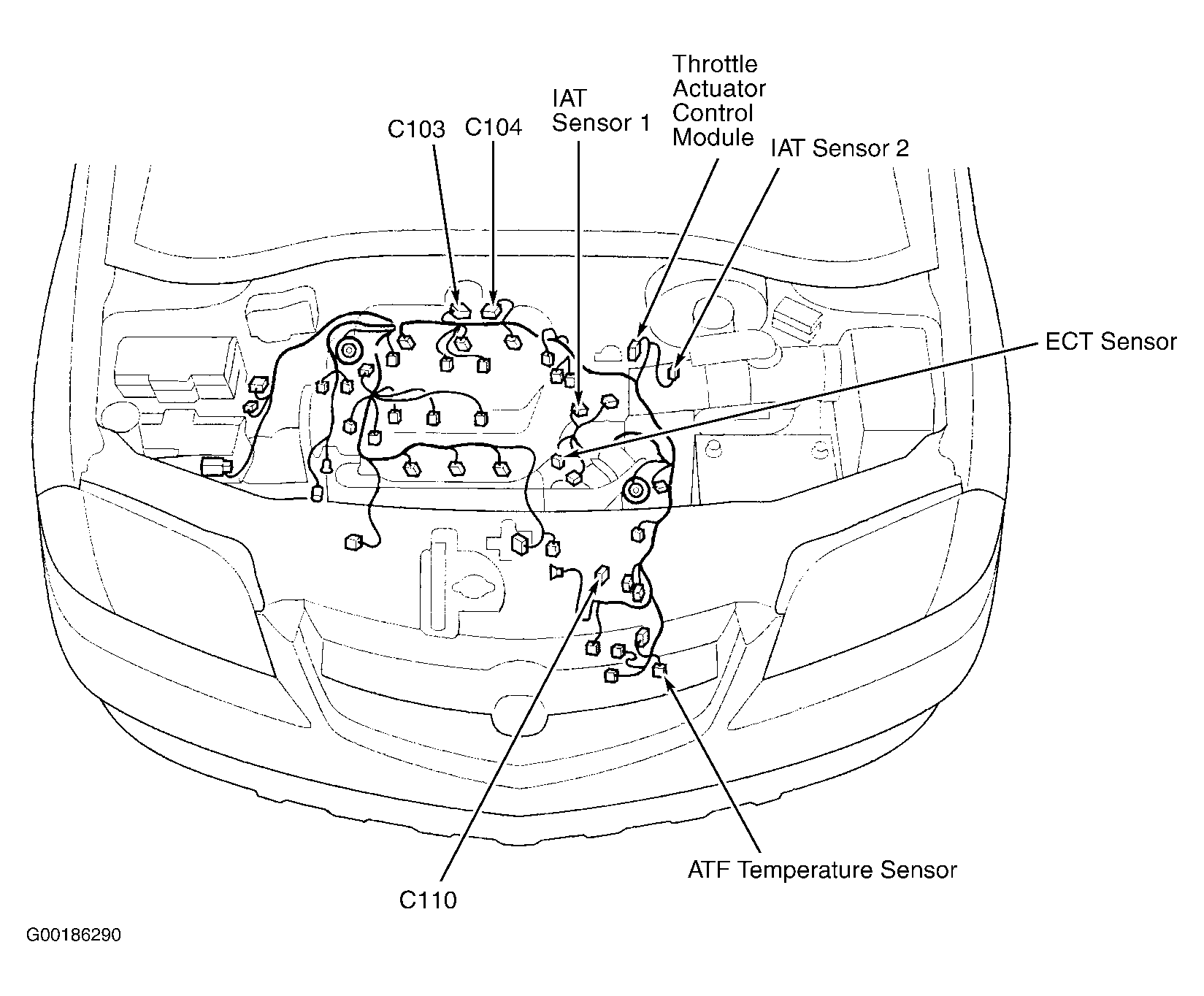

Fig 1: Engine Compartment

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Engine Compartment

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 3: Engine Compartment

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 4: Engine Compartment

Courtesy of AMERICAN HONDA MOTOR CO., INC.

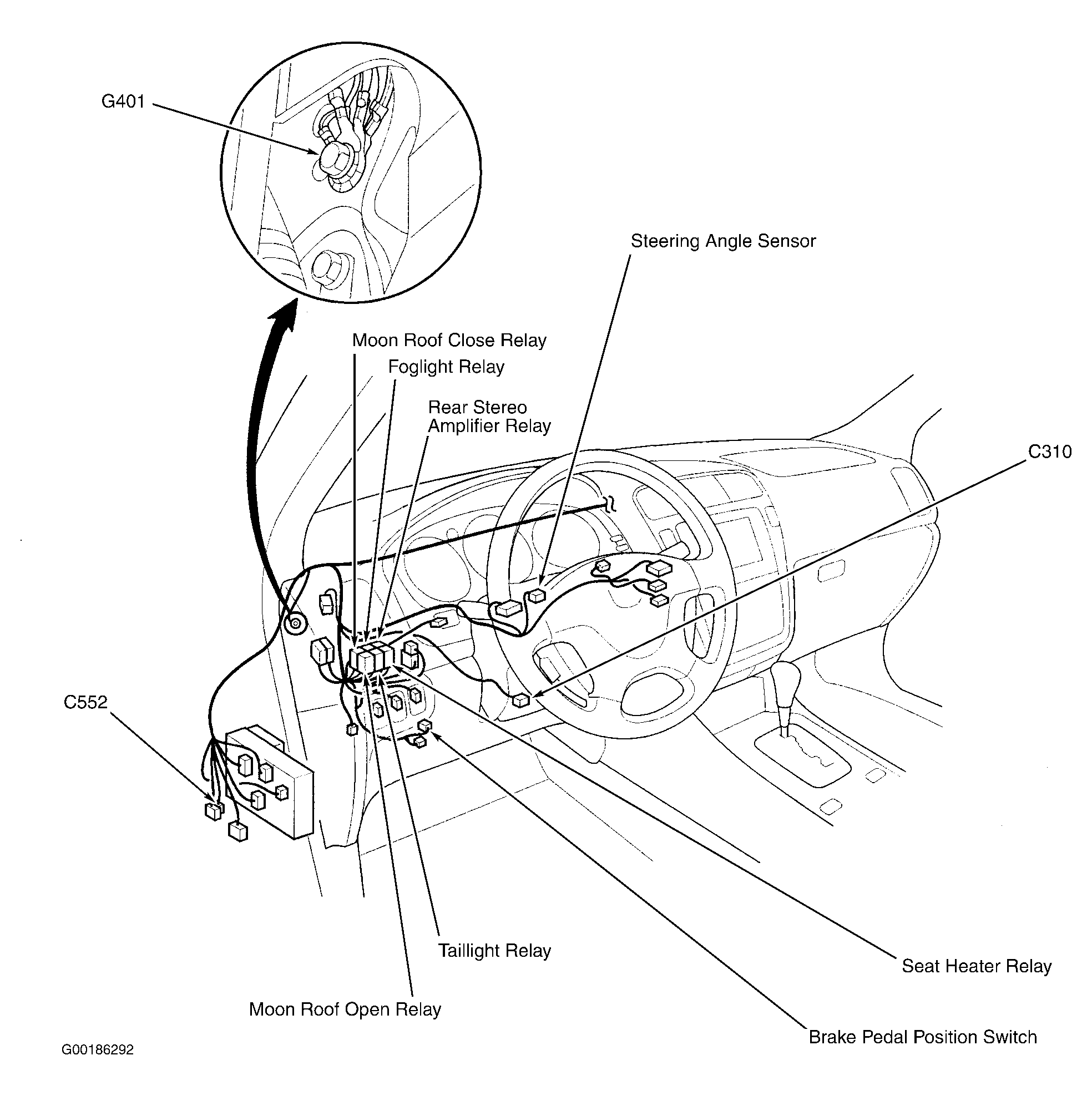

Fig 5: View Of Dash

Courtesy of AMERICAN HONDA MOTOR CO., INC.

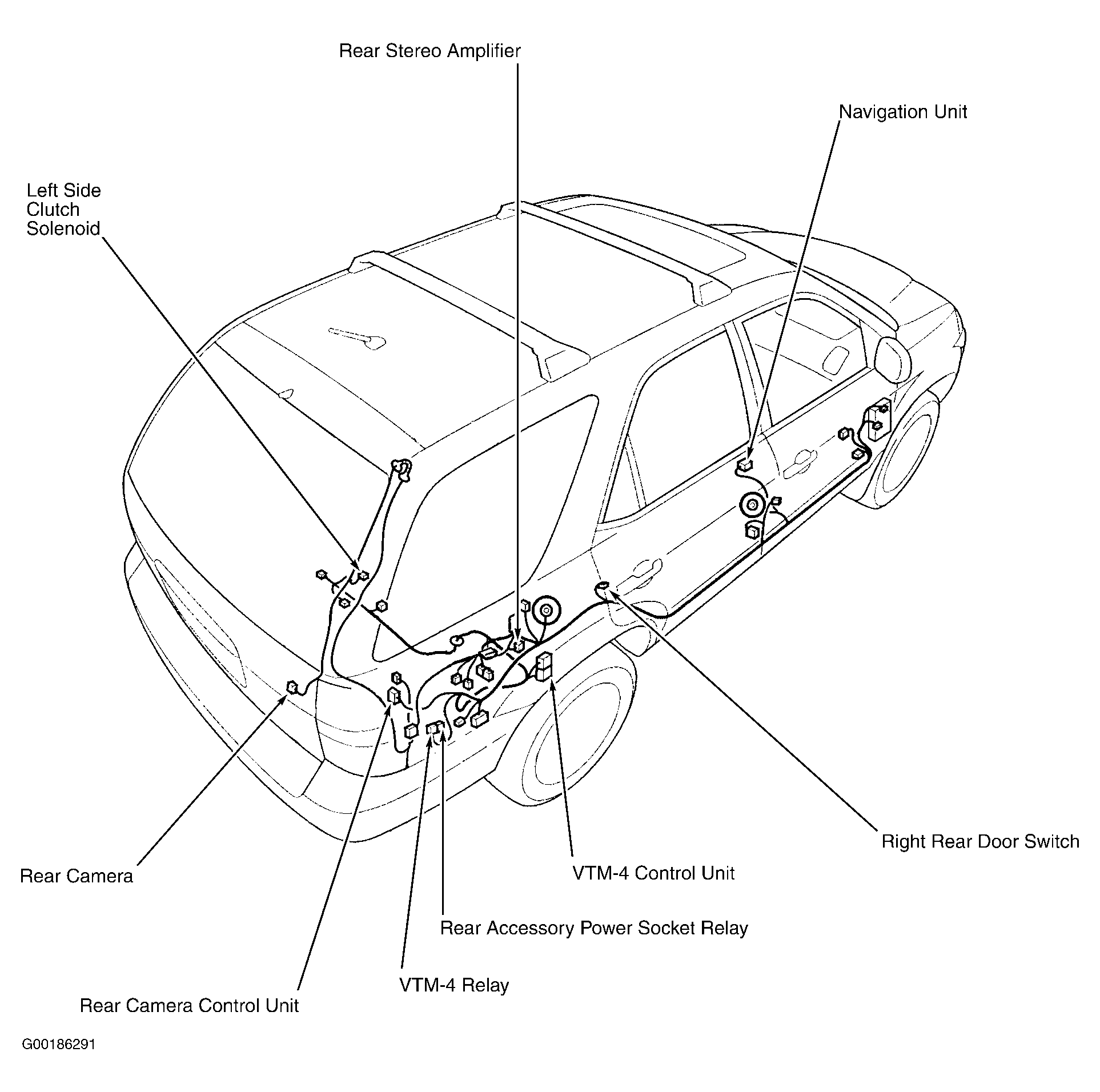

Fig 6: Right Side Of Vehicle

Courtesy of AMERICAN HONDA MOTOR CO., INC.
