Electrical Component Locator: Grounds
GROUNDS LOCATION
| Component | Component Location |
|---|---|
| G1 | At front of engine compartment, near battery. |
| G2 | At left front of engine compartment. |
| G101 | At left rear of engine. |

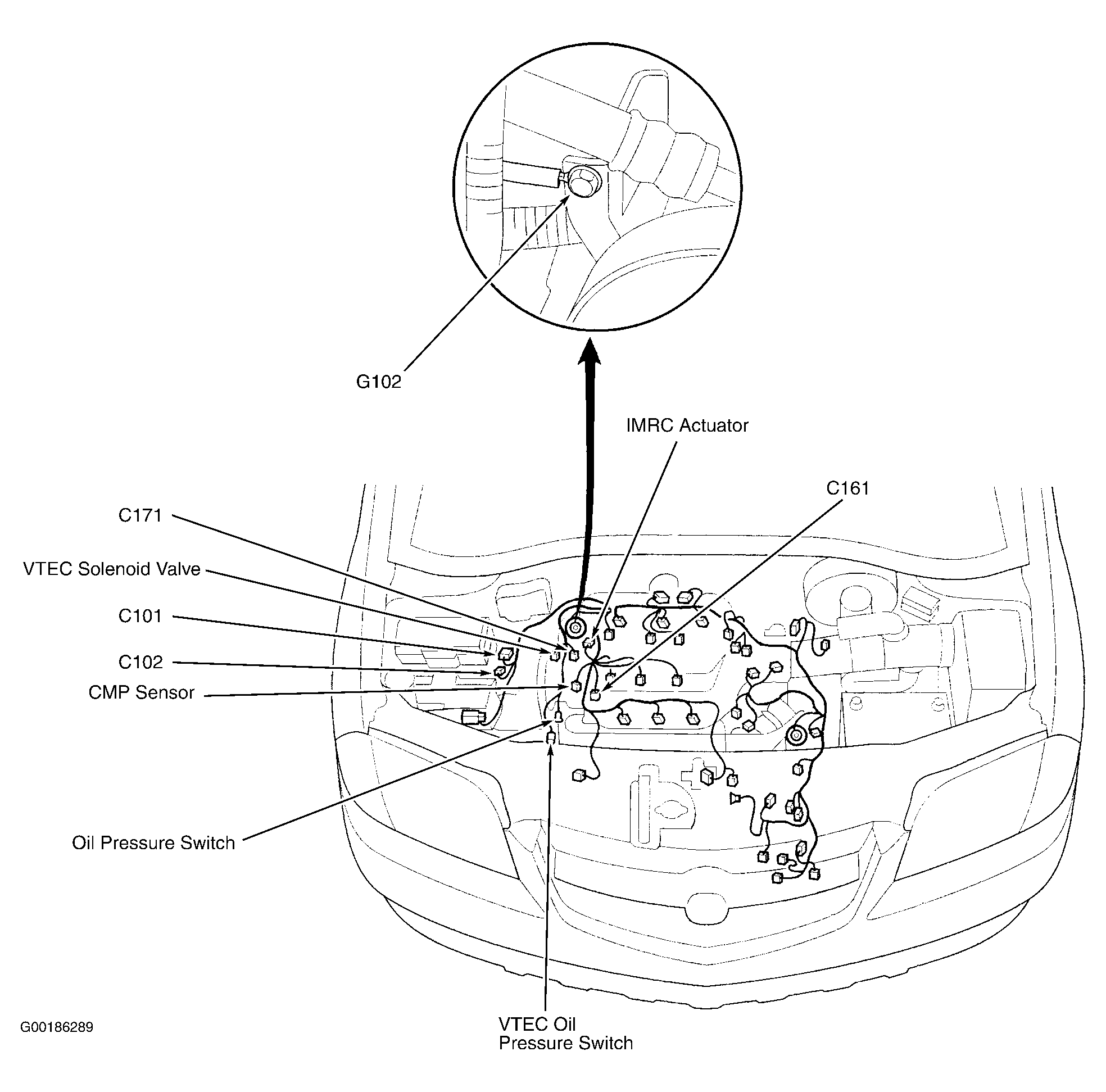

| G102 | At right front of engine, near power steering pump. See Figure . |
| G201 | Behind right headlight. See Figure . |
| G301 | At left rear of engine compartment. |
| G302 | Below driver's underdash fuse/relay box. |

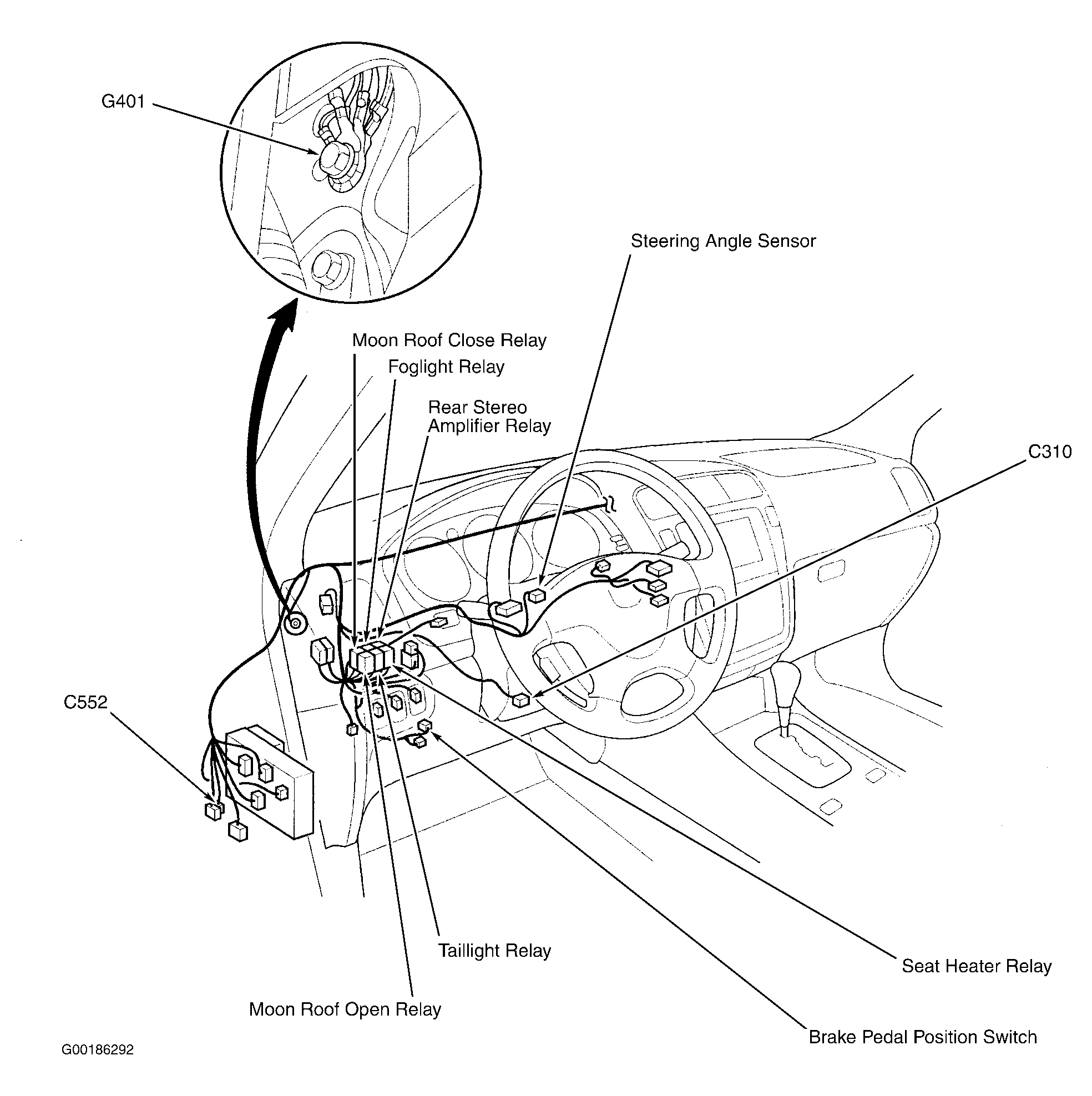

| G401 | Behind upper left end of dash. See Figure . |
| G501 | Behind left end of dash. |
| G502 | Behind right center of dash. |
| G503 | Behind right end of dash. |
| G601 | Below left front seat. |
| G602 | Above left rear fender. |
| G631 | Below center console, behind shifter. |
| G651 | Below right front seat. |
| G652 | Above right rear fender. |
| G801 | Under center of dash. |
