Starter Performance Test

Disconnect the wire from the M terminal.
Make a connection as shown in Fig 1 using as heavy a wire as possible (preferably equivalent to the wire used for the vehicle). To avoid damaging the starter, never leave the battery connected for more than 10 seconds.

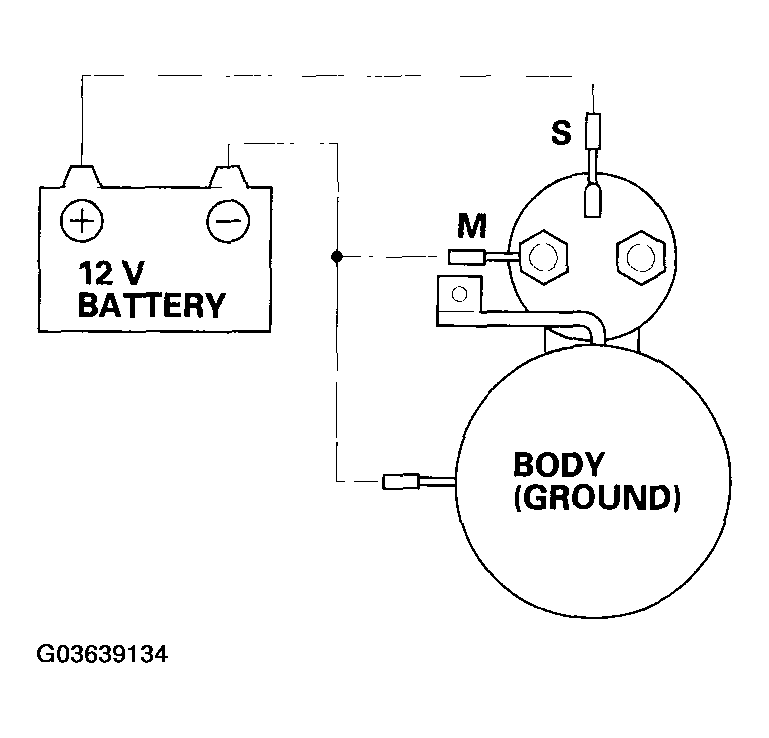

Fig 1: Making Connection Using Heavy Wire Possible
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Connect the battery as shown. Make sure you disconnect the starter motor wire from the solenoid. If the starter pinion moves out, it is working properly.
Disconnect the negative battery terminal from the M terminal. If the pinion does not retract, the hold-in coil of the solenoid is working properly.

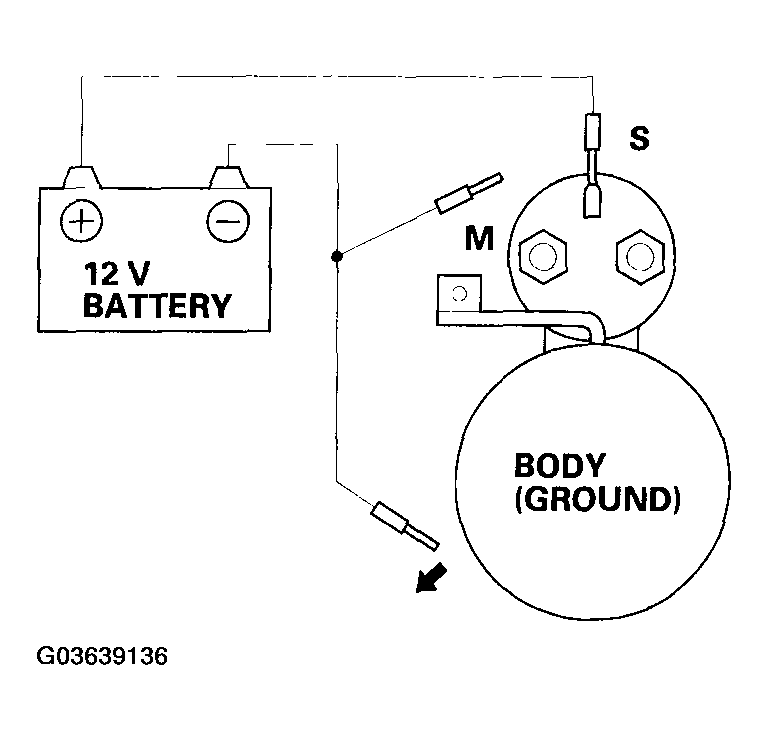

Fig 2: Disconnecting Negative Battery Terminal From M Terminal
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the negative battery terminal from the starter body. If the pinion retracts immediately, it is working properly.

Fig 3: Disconnecting Negative Battery Terminal From Starter Body
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Clamp the starter firmly in a vise.
Reconnect the wire to the M terminal.
Connect the starter to the battery as shown in Fig 4 , and check that the motor starts and keeps rotating.

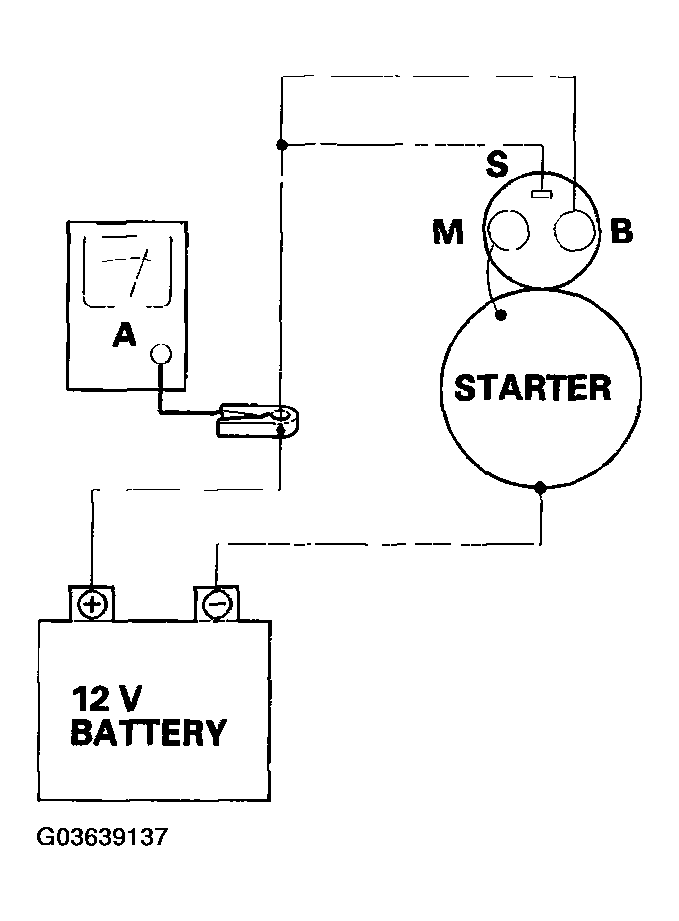

Fig 4: Connecting Starter To Battery
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the electric current and motor speed meet the specifications when the battery voltage is at 11 V, the starter is working properly.
Specifications
- Electric Current: 80 A or less
- Motor Speed: 1,180 rpm or more
