Ignition Coil Removal/Installation

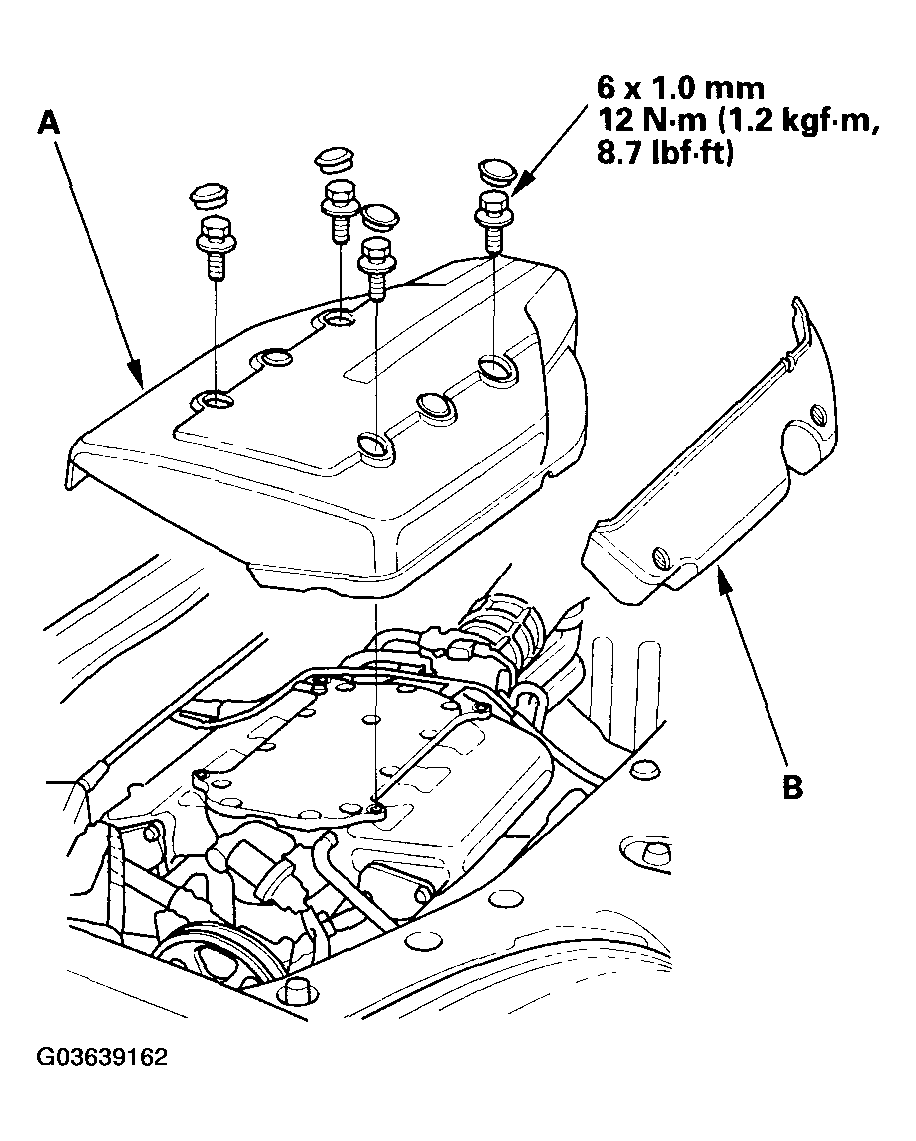

Remove the intake manifold cover (A) and ignition coil cover (B).

Fig 1: Removing Intake Manifold Cover And Ignition Coil Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the ignition coil connector (A), then remove the ignition coils (B).

Fig 2: Disconnecting Ignition Coil Connector
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the ignition coils in the reverse order of removal.
