Fuel Line Inspection

Check the fuel system lines, hoses, and fuel filter for damage, leaks, and deterioration. Replace any damaged parts.

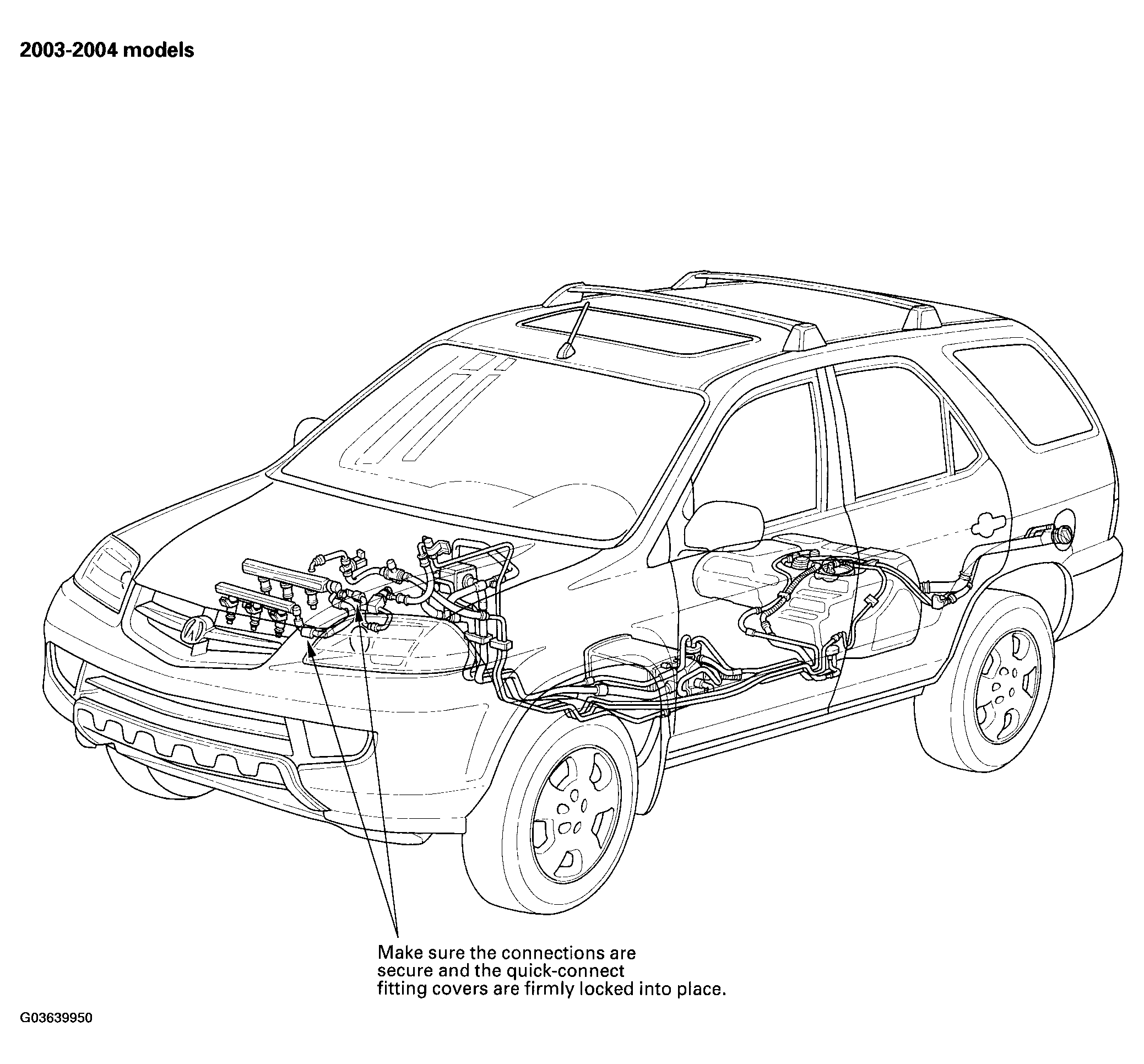

Fig 1: Inspecting Fuel Line (2003-04 Models)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

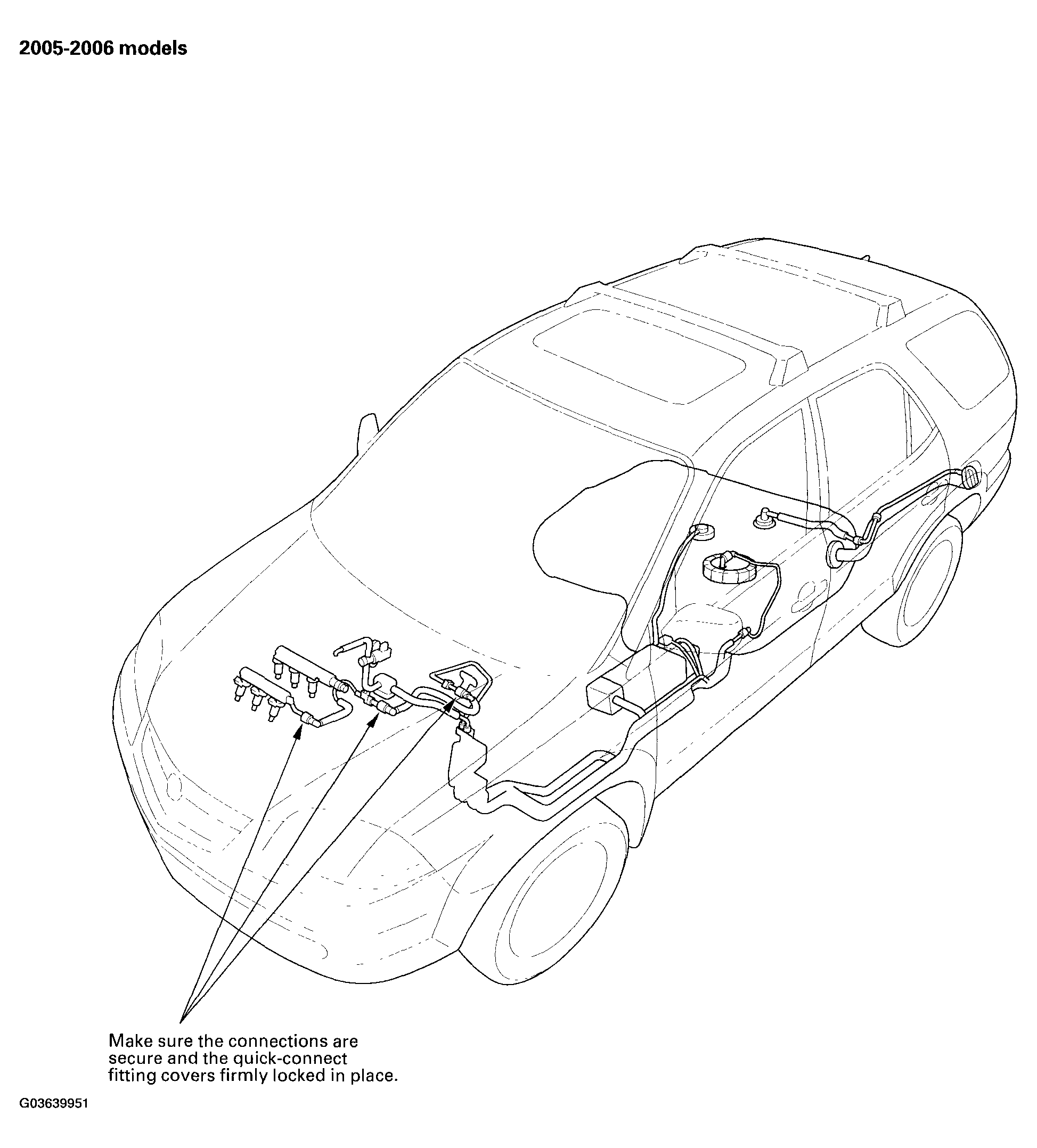

Fig 2: Inspecting Fuel Line (2005-06 Models)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Check all clamps and retighten if necessary.

TRIANGLE(S): Do not disconnect the hose from the line at these joints.

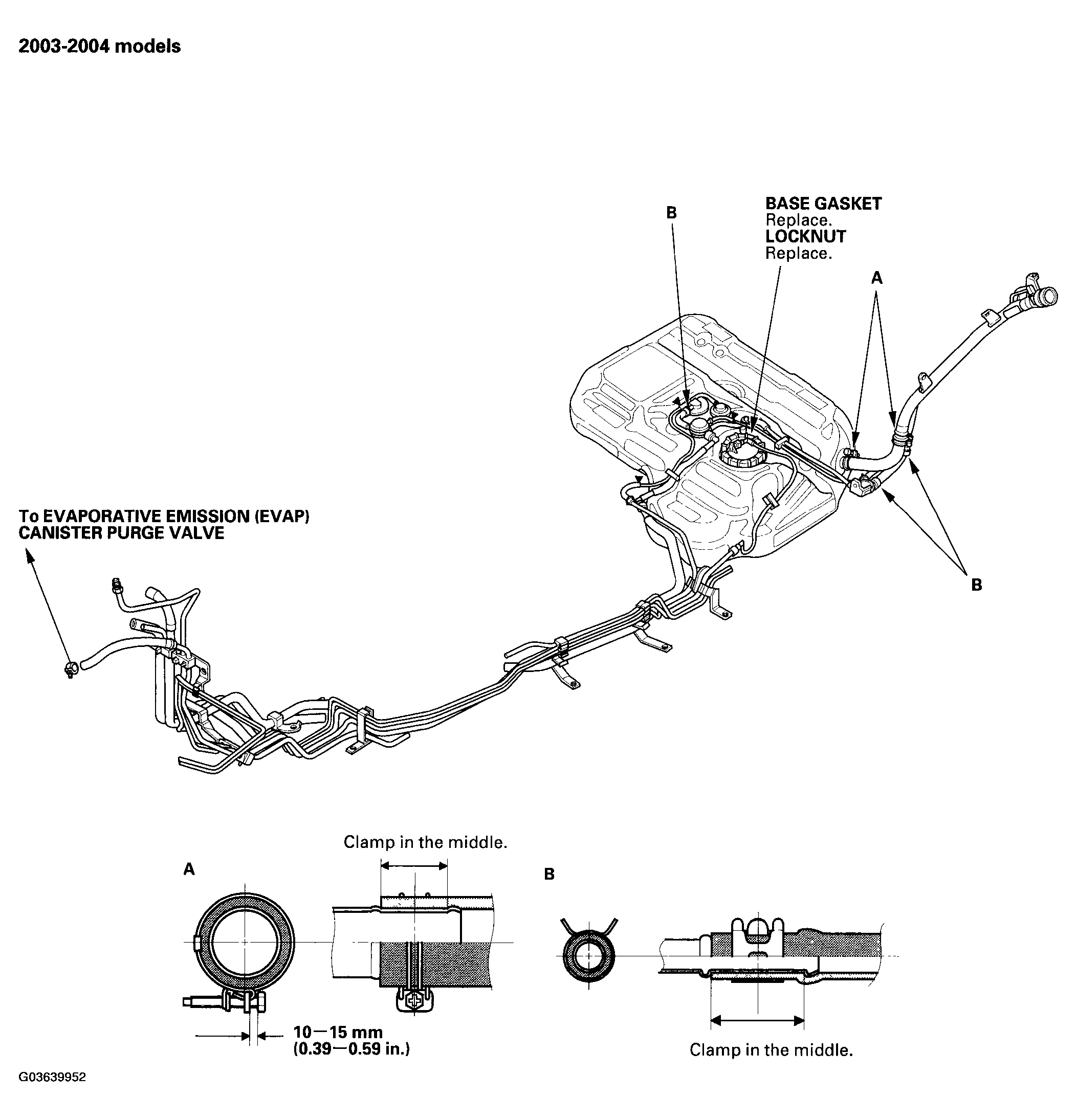

Fig 3: Checking Clamps (2003-04 Models)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

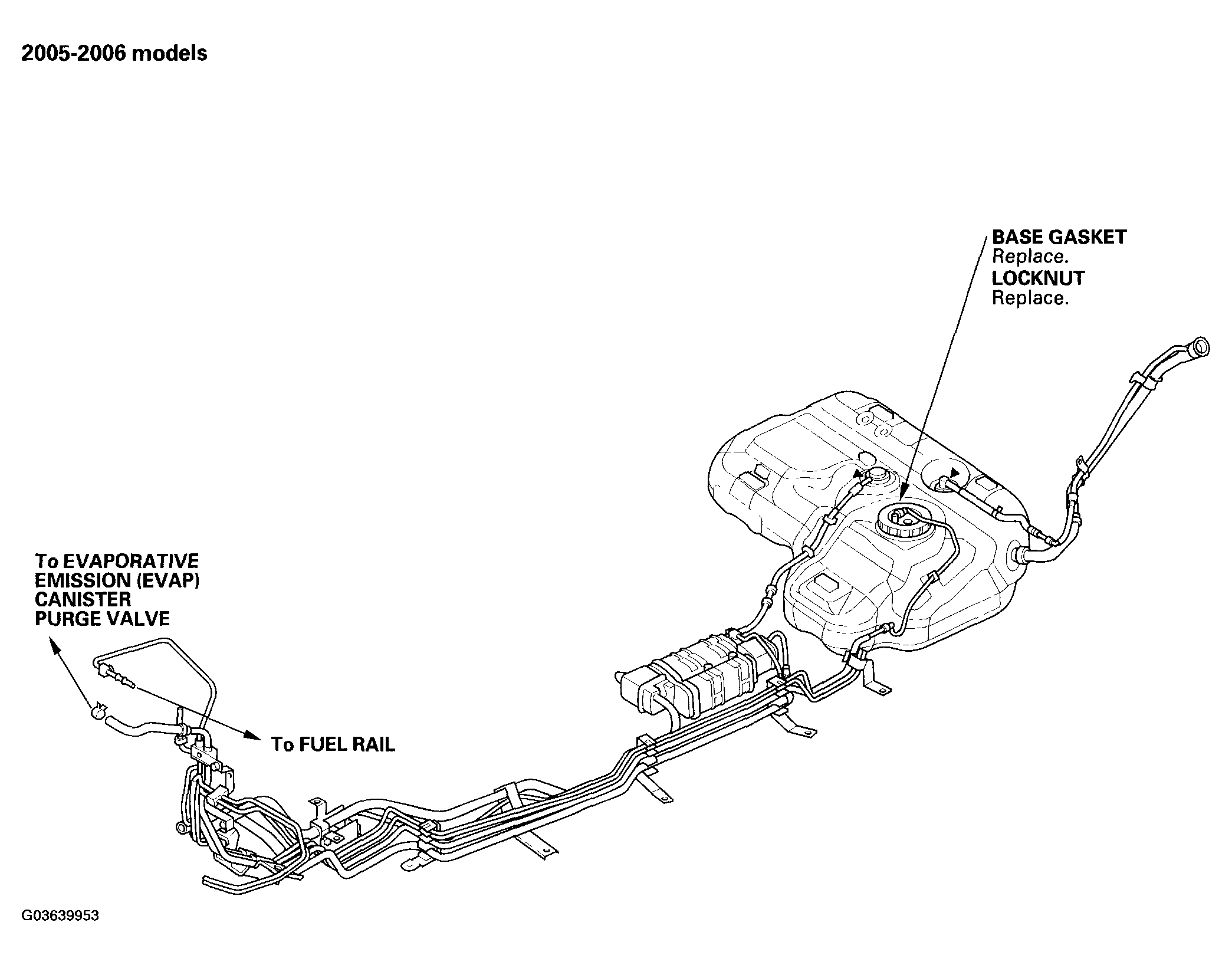

Fig 4: Checking Clamps (2005-06 Models)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
