ECT Sensor Replacement

  1. Drain the engine coolant (see COOLANT REPLACEMENT ).
  2. Remove the intake manifold (see REMOVAL ).
  3. Disconnect the ECT sensor 2P connector (A).

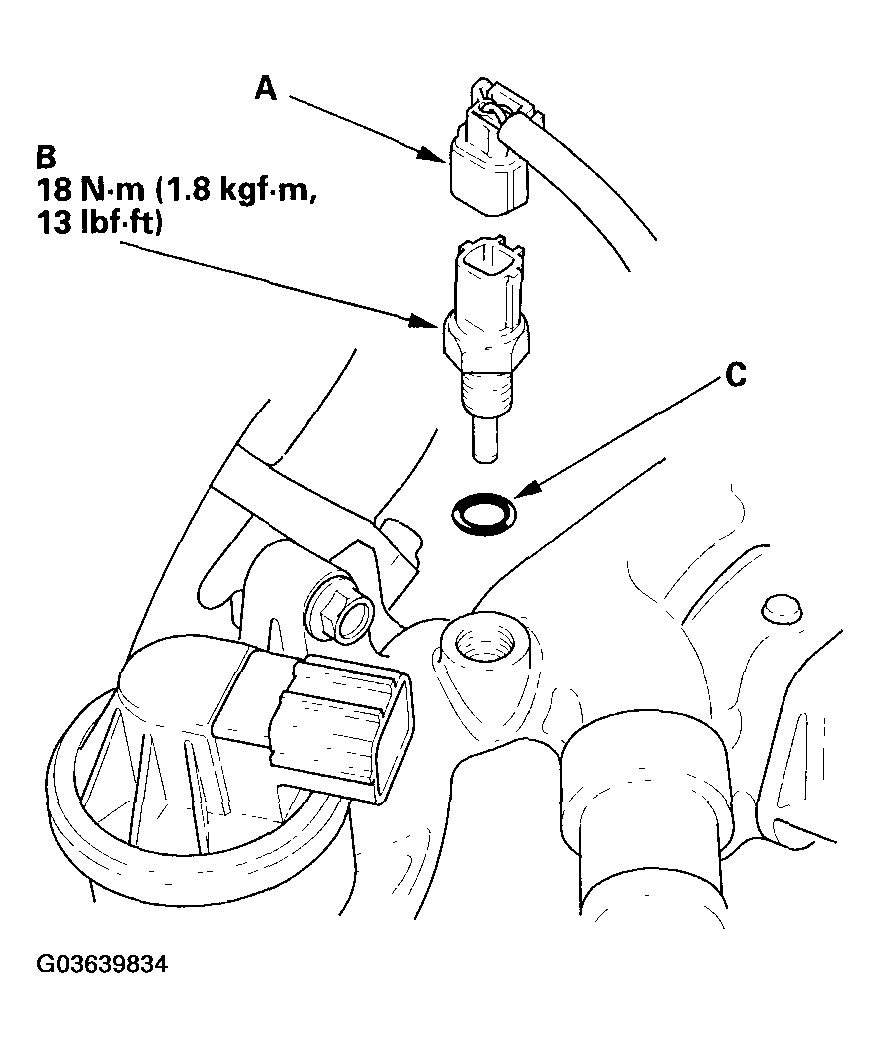

    Fig 1: Disconnecting ECT Sensor 2P Connector
    G03639834Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the ECT sensor (B).
  5. Install the sensor in the reverse order of removal with a new O-ring (C), then refill the radiator with engine coolant (see COOLANT REPLACEMENT ), and bleed air from the cooling system with the heater valve open.
