Rocker Arm Oil Control Solenoid (VTEC Solenoid Valve) Replacement

  1. Disconnect the rocker arm oil control solenoid (VTEC solenoid valve) 1P connector (A).

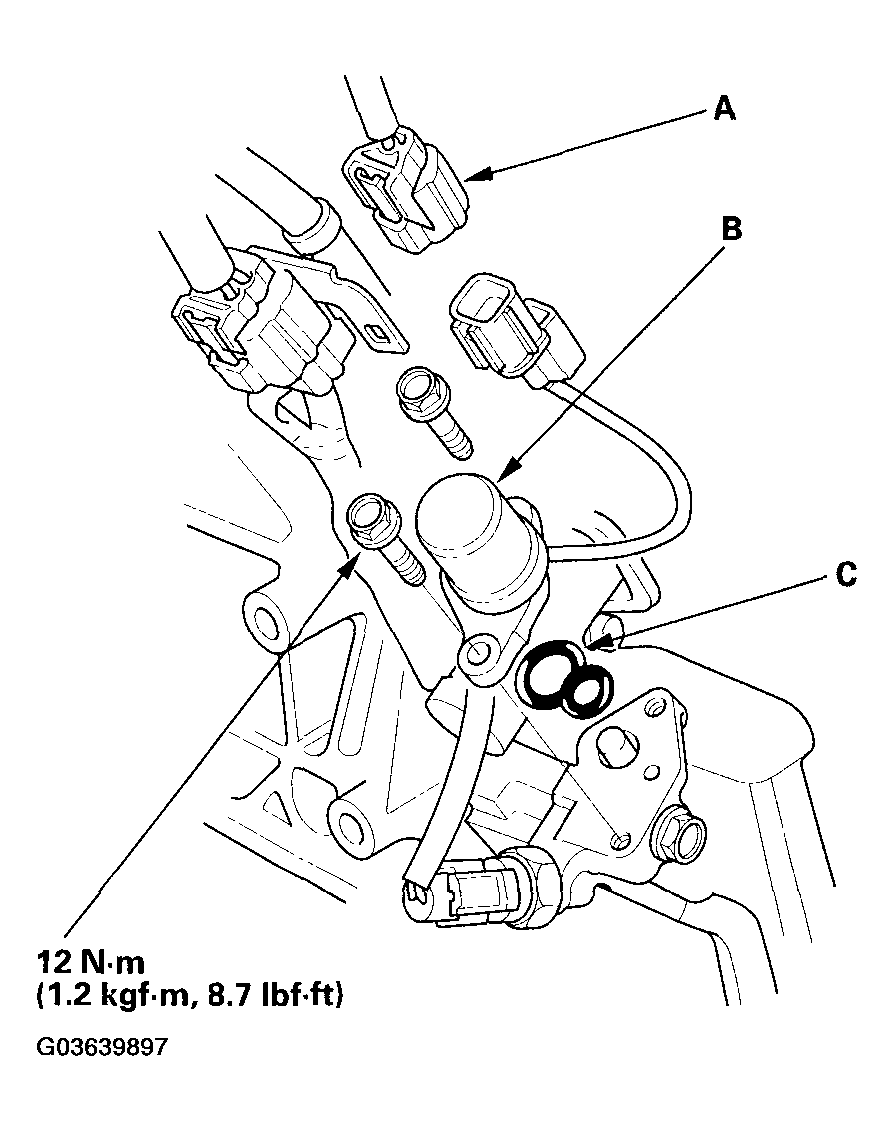

    Fig 1: Disconnecting Rocker Arm Oil Control Solenoid (VTEC Solenoid Valve) 1P Connector
    G03639897Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the rocker arm oil control solenoid (VTEC solenoid valve) (B).
  3. Install the parts in the reverse order of removal with a new O-ring (C).
