2003-2004 Models

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before performing repairs or service.

1. Remove the gauge assembly (see GAUGE ASSEMBLY REPLACEMENT ).
2. Disassemble the gauge assembly.
3. Replace the bulbs (A) in the gauge assembly (B).

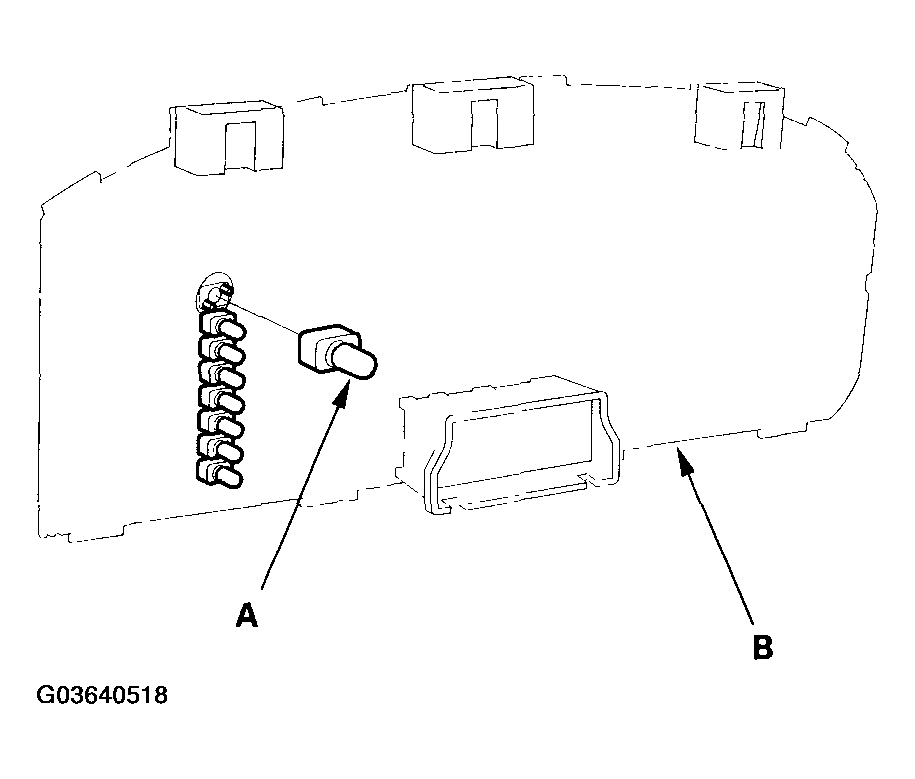

   Fig 1: Removing Bulbs From Gauge Assembly

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
