2003-2004 Models

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ), and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before performing repairs or service.

1. Remove the gauge assembly from the dashboard, then disconnect gauge assembly connectors A (30P) and C (14P).
2. Inspect the connectors and connector terminals to be sure they are making good contact.
3. If the terminals are bent, loose, or corroded, repair or replace them as necessary, and recheck the system.
4. Turn the ignition switch ON (II).
5. Check for voltage between gauge assembly connector terminals and body ground in each shift lever position:
   • Between A7 (BLK/BLU) and ground in the P position.
   • Between A8 (WHT) and ground in the R position.
   • Between A9 (RED/BLK) and ground in the N position.
   • Between A27 (YEL) and ground in the D4 position.
   • Between A11 (PNK) and ground in the D3 position.
   • Between A10 (BLU) and ground in the 2 position.
   • Between A12 (BRN) and ground in the 1 position.

   There should be 0 V at each terminal to ground in each position, and there should be battery voltage in any other position.

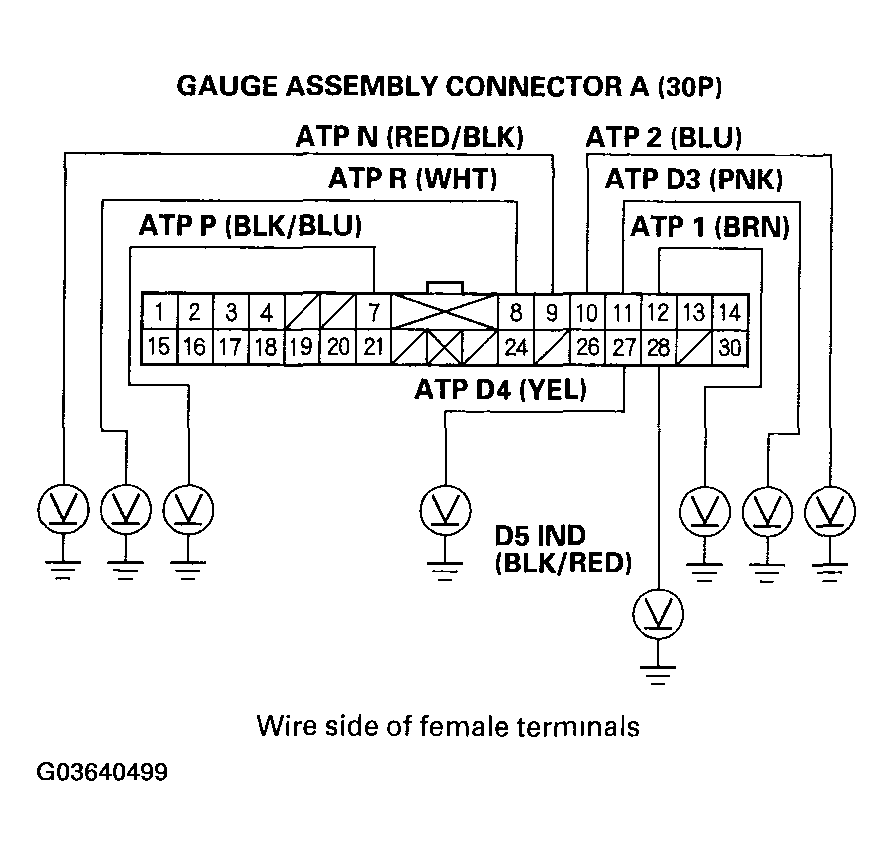

   Fig 1: Checking For Voltage Between Gauge Assembly Connector Terminals And Body Ground

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Move the shift lever into the D5 position, and check for voltage between gauge assembly connector terminal A28 (BLK/RED) and body ground. There should be about 5 V in the D5 position. There should be 0 V in any other shift lever position.
7. If the test result are different, check for an open in the wire(s), a faulty transmission range switch, or a faulty PCM.
8. Check for voltage between terminal C7 (YEL) and body ground with the ignition switch turned ON (II). There should be battery voltage. If there is 0 V, check for a blown No. 9 (10 A) fuse in the driver's under dash fuse/relay box or an open in the wire.

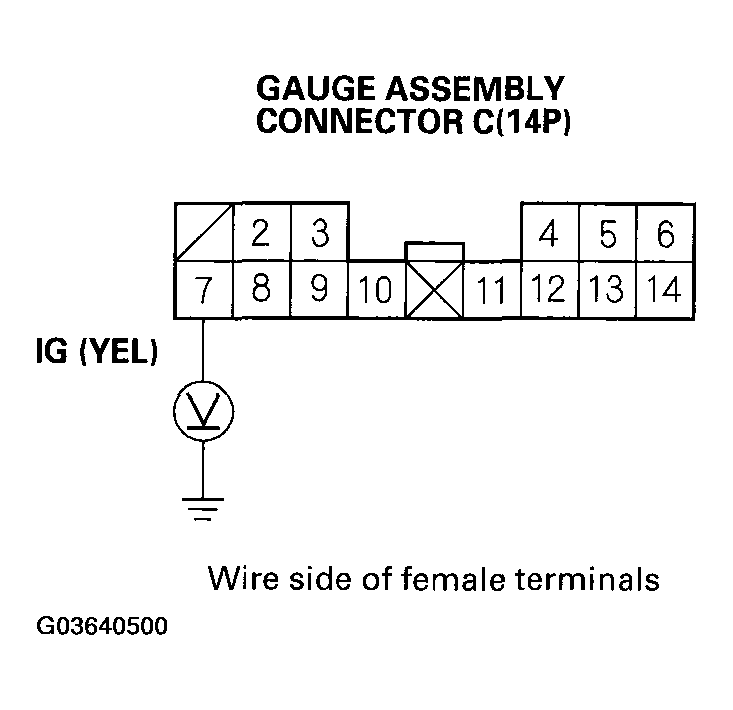

   Fig 2: Checking For Voltage Between Terminal C7 (YEL) And Body Ground

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
9. Turn the ignition switch OFF, and check for continuity between terminal C9 (BLK) and body ground.

   There should be continuity to ground under all conditions. If there is no continuity, check for an open in the wire, or poor ground (G501).

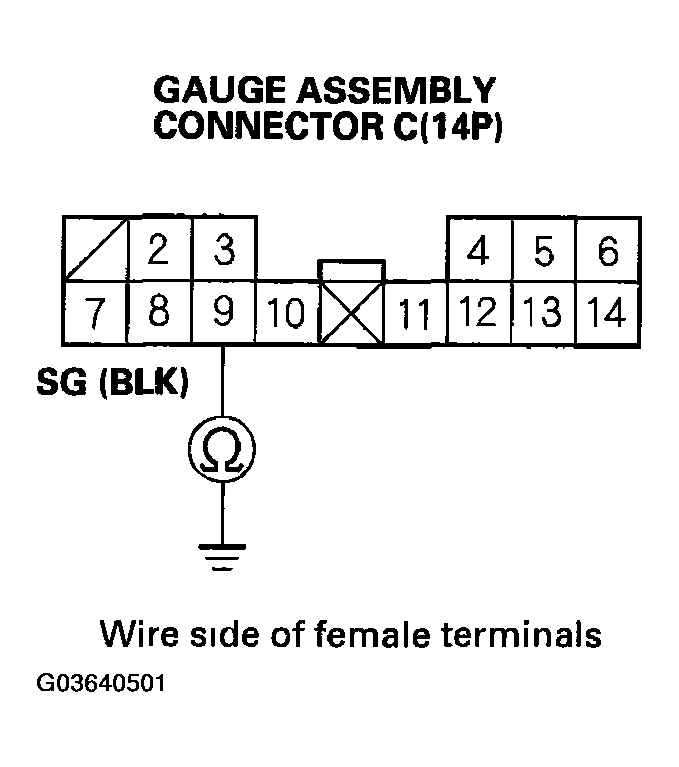

   Fig 3: Checking For Continuity Between Terminal C9 (BLK) And Body Ground

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
10. Connect gauge assembly connectors A (30P) and C (14P).
11. Turn the ignition switch ON (II), and check for voltage within about 2 seconds between terminals A24 (RED/GRN) and body ground, and between A28 (BLK/RED) and ground.

    There should be battery voltage within about 2 seconds after the ignition switch is turned ON (II).

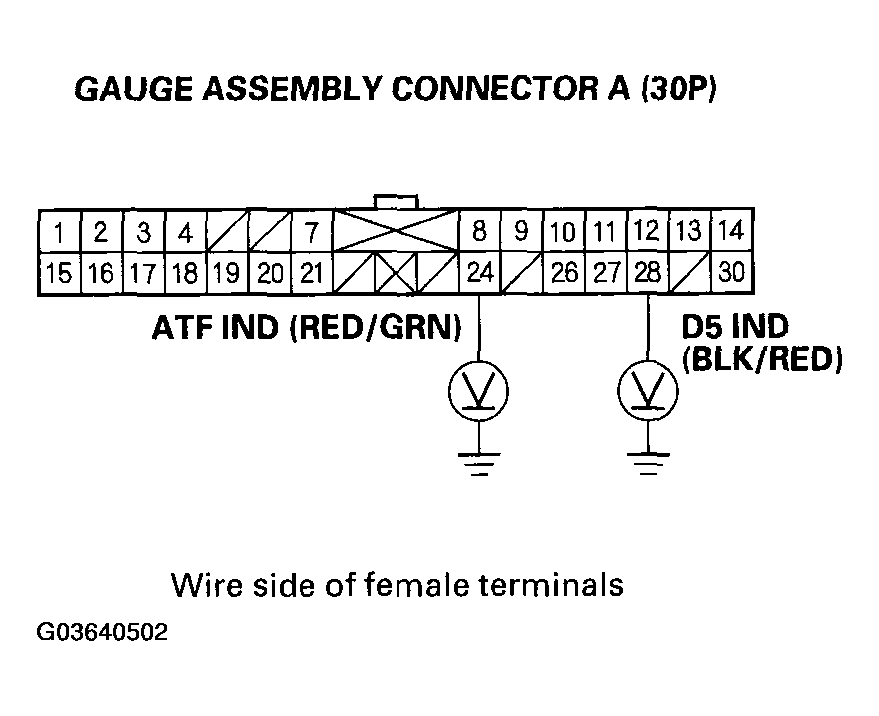

    Fig 4: Checking For Voltage Within About 2 Seconds Between Terminals A24 (RED/GRN) And Body Ground And Between A28 (BLK/RED) And Ground

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
12. If all input tests prove OK, but the indicator is faulty, replace the printed circuit board in the gauge assembly.
