Transmission Range Switch Test

  1. Disconnect transmission range switch connector.

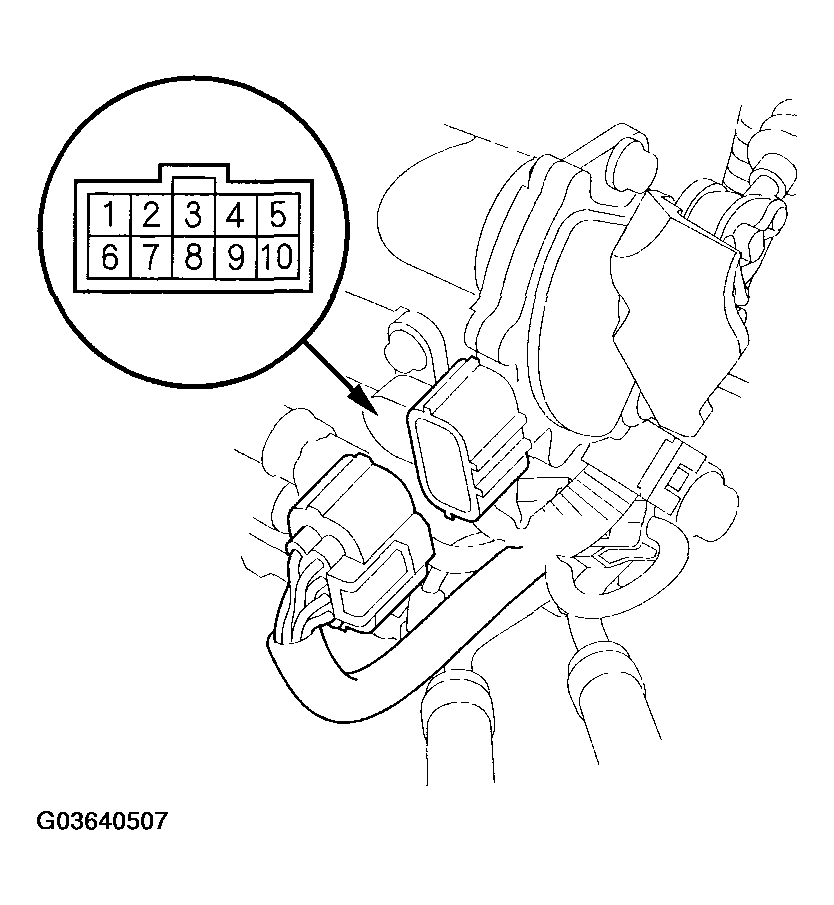

    Fig 1: Disconnecting Transmission Range Switch Connector
    G03640507Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Check for continuity between terminals at the switch connector. There should be continuity between the terminals in the table for each switch position.

    Transmission Range Switch Harness Connector

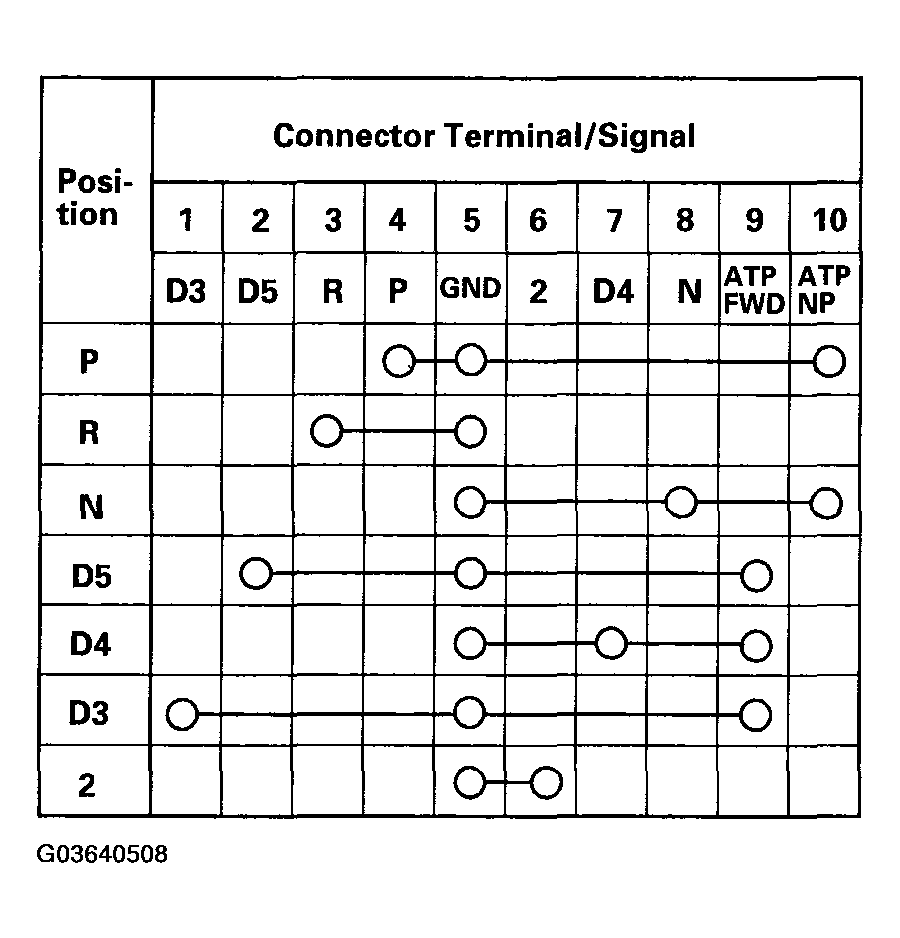

    Fig 2: Transmission Range Switch Harness Connector Terminals Signals
    G03640508Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. If there is no continuity between any terminals, check that the transmission range switch installation. If the installation is OK, replace the switch (see TRANSMISSION RANGE SWITCH REPLACEMENT  ).
