Park Pin Switch Test/Replacement
- Remove the console panel and center console (see CENTER CONSOLE REMOVAL/INSTALLATION
).

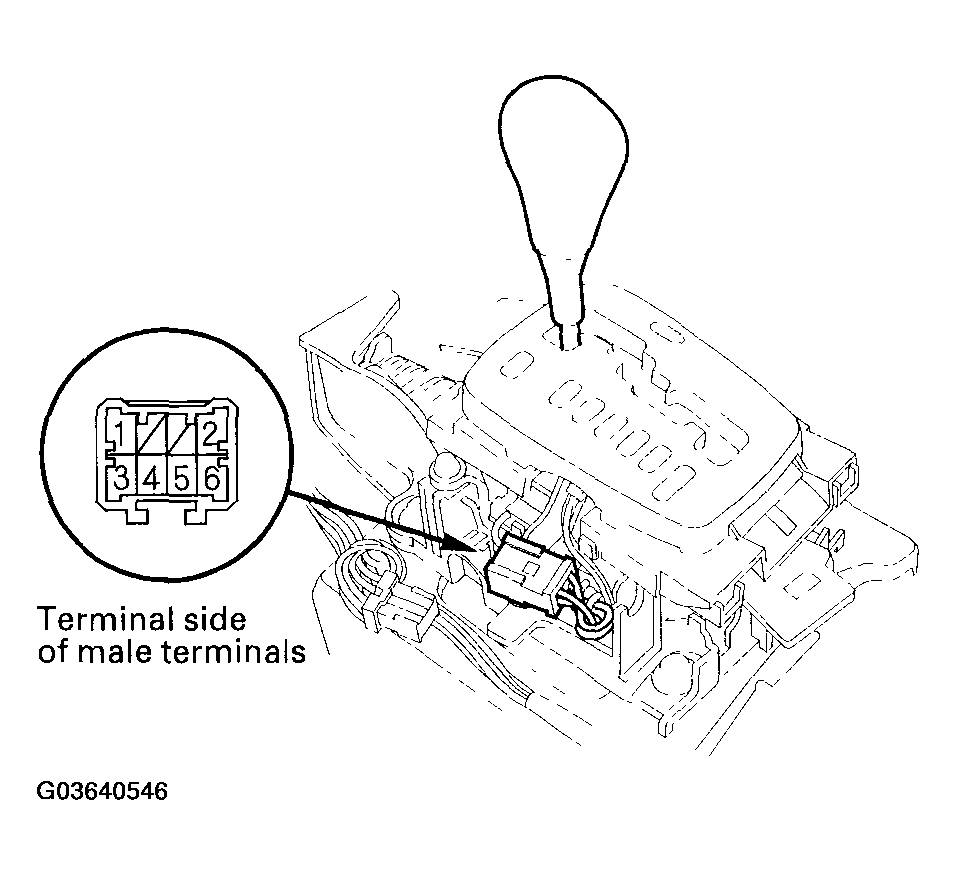

- Disconnect the switch assembly connector (6P).
- Shift the shift lever into the P position, then check for continuity between the No. 2 and No. 4 terminals. There should be continuity.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Shift the shift lever out of the P position, and check for continuity between the terminals in step 3. There should be no continuity.
- If the park pin switch is faulty, remove the shift lever assembly (see SHIFT LEVER REMOVAL
), and replace the detent bracket (see SHIFT LEVER DISASSEMBLY/REASSEMBLY
). (The park pin switch is not available separately.)
