ATF Temperature Sensor Replacement

  1. Remove the splash shield.
  2. Disconnect the ATF temperature sensor connector (A), then remove the connector from the connector bracket (B).

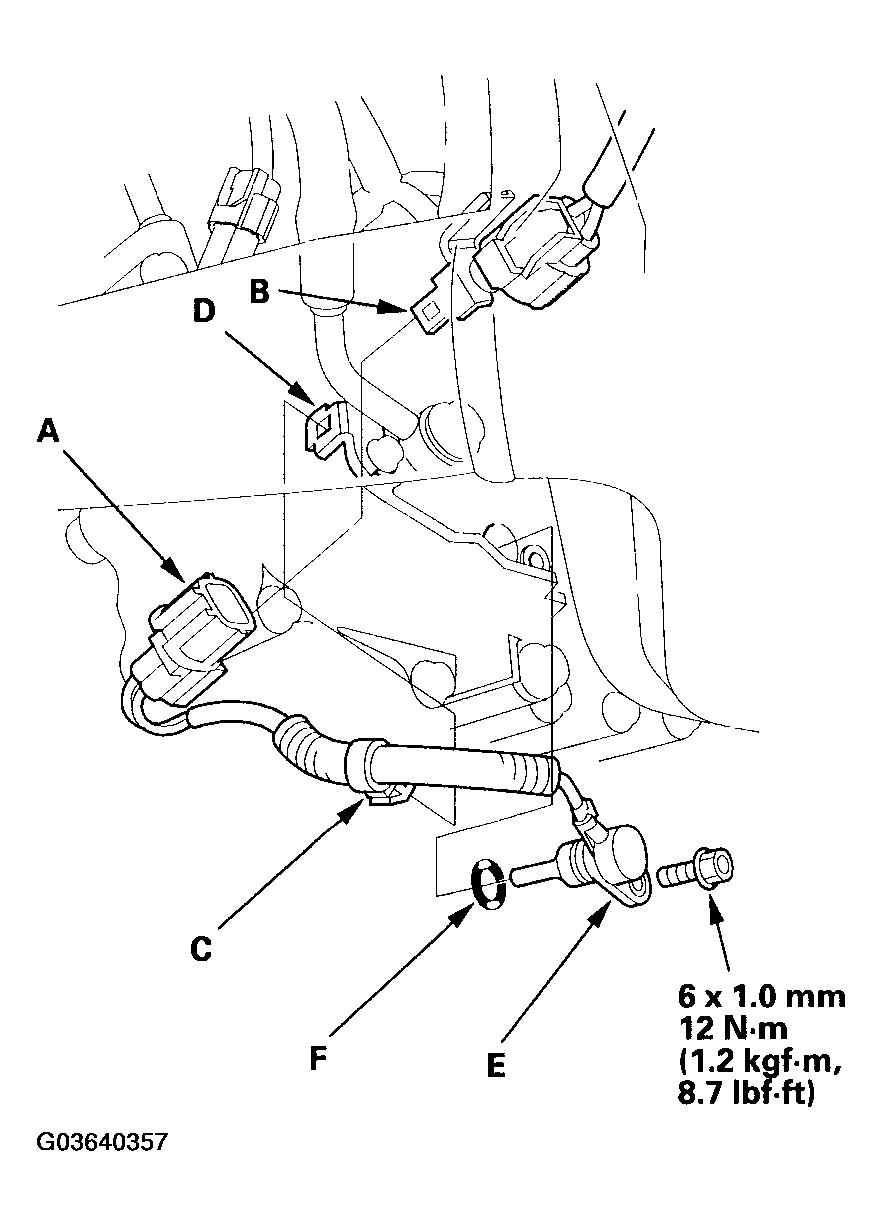

    Fig 1: Disconnecting ATF Temperature Sensor Connector (A)
    G03640357Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the harness clamp (C) from its bracket (D).
  4. Remove the ATF temperature sensor, and replace with new one.
  5. Install the new ATF temperature sensor (E) and a new O-ring (F).
  6. Install the ATF temperature sensor connector to the connector bracket, then connect the connector.
  7. Install the harness clamp on its bracket.
  8. Install the splash shield.
