DTC Troubleshooting Index

NOTE: Record all freeze data and review General Troubleshooting Information (see GENERAL TROUBLESHOOTING INFORMATION  ) before you troubleshoot.

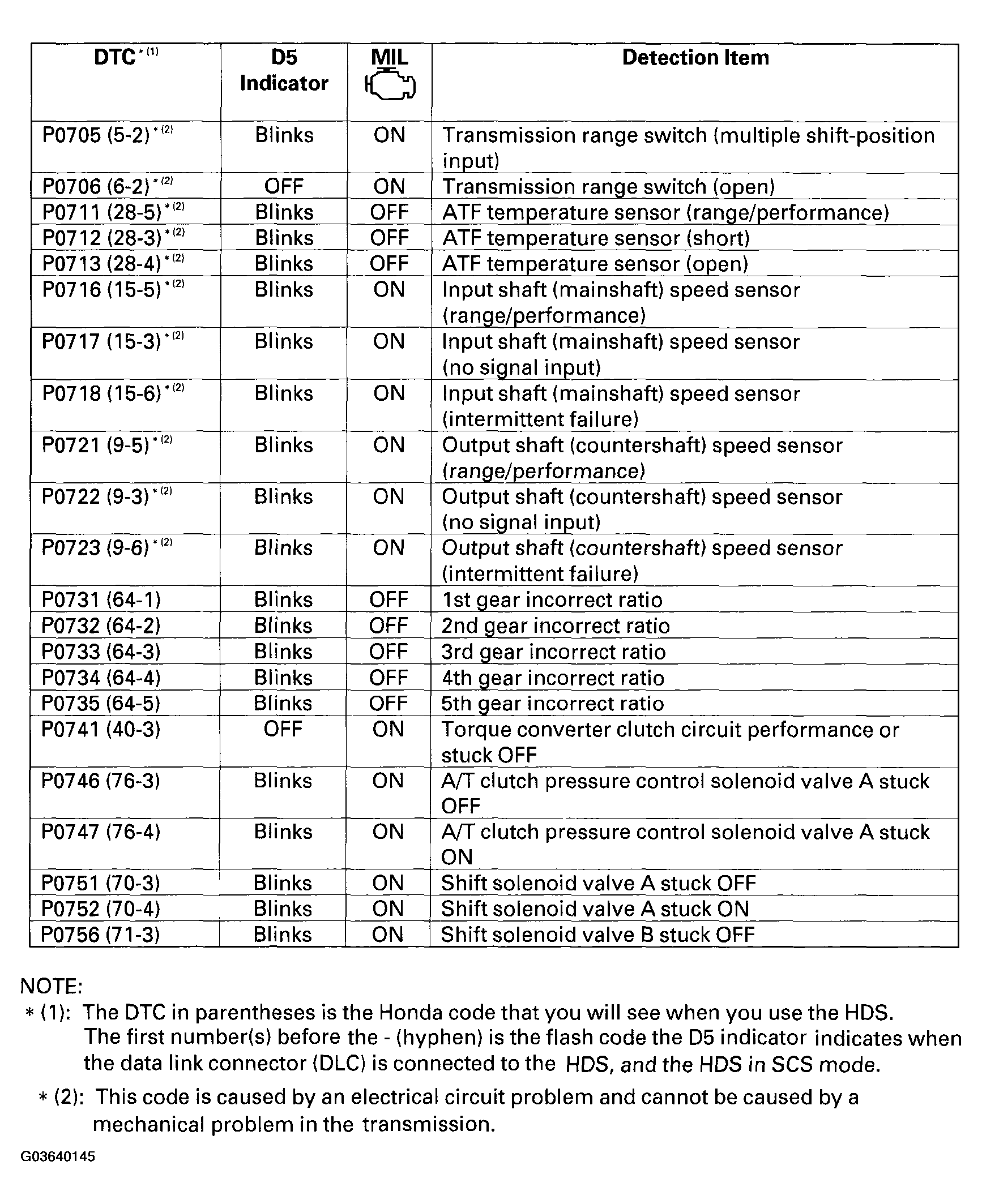

Fig 1: DTC Troubleshooting Index (1 Of 2)
G03640145Courtesy of AMERICAN HONDA MOTOR CO., INC.
NOTE: Record all freeze data and review General Troubleshooting Information (see GENERAL TROUBLESHOOTING INFORMATION  ) before you troubleshoot.

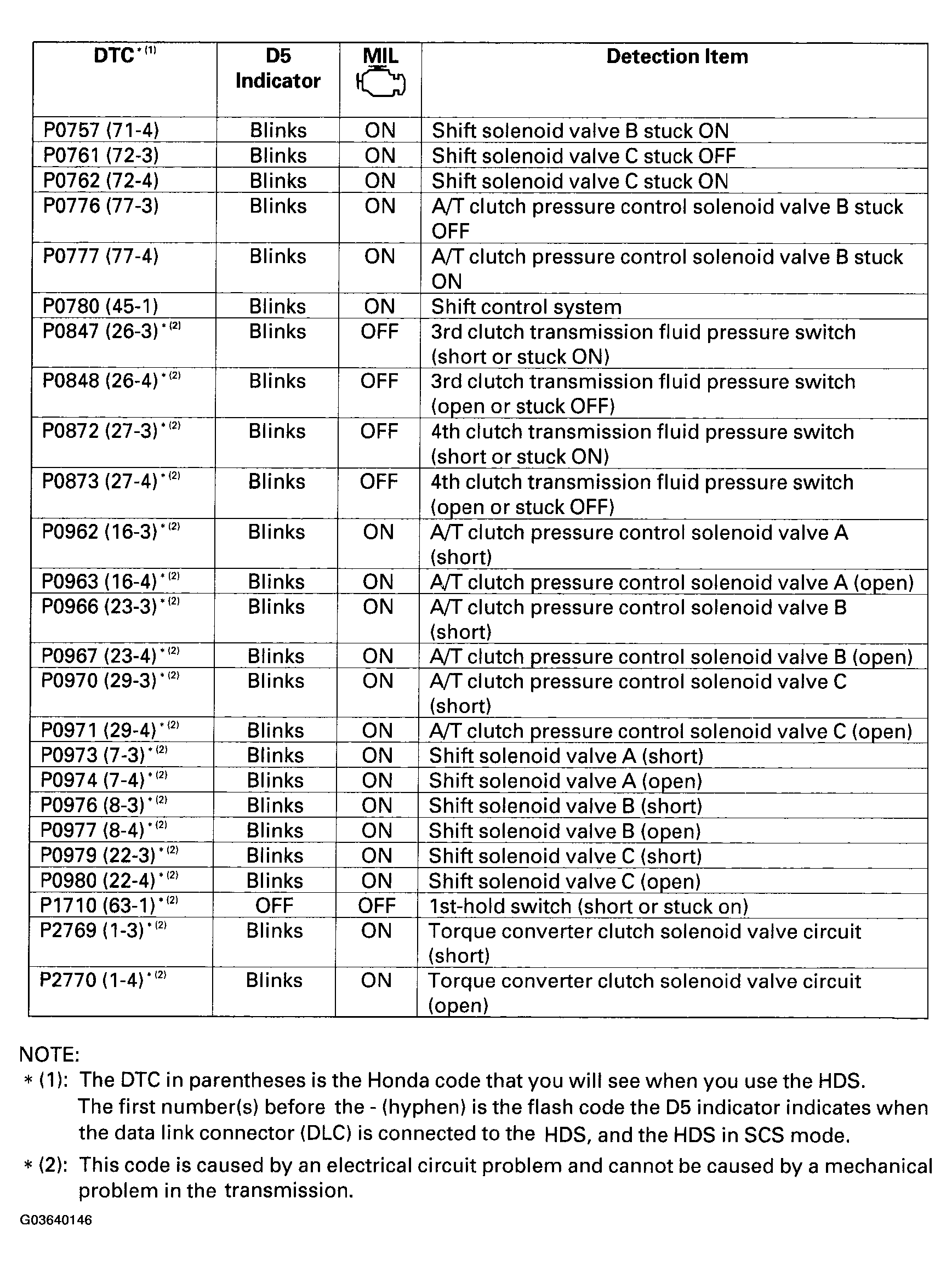

Fig 2: DTC Troubleshooting Index (2 Of 2)
G03640146Courtesy of AMERICAN HONDA MOTOR CO., INC.
