Electronic Controls Locations

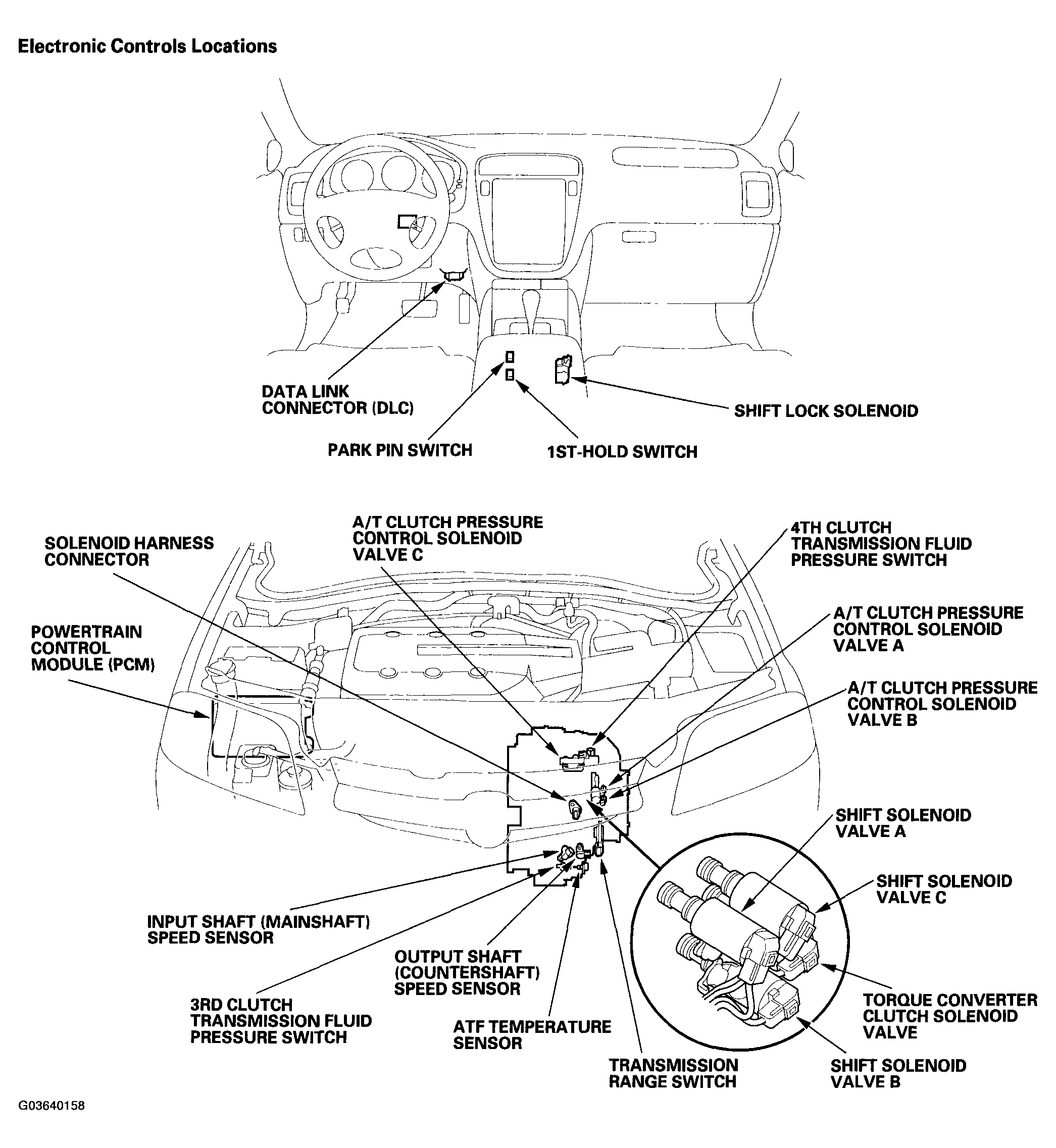

Fig 1: Identifying Electronic Controls Locations
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
