PCM A/T Control System Inputs and Outputs

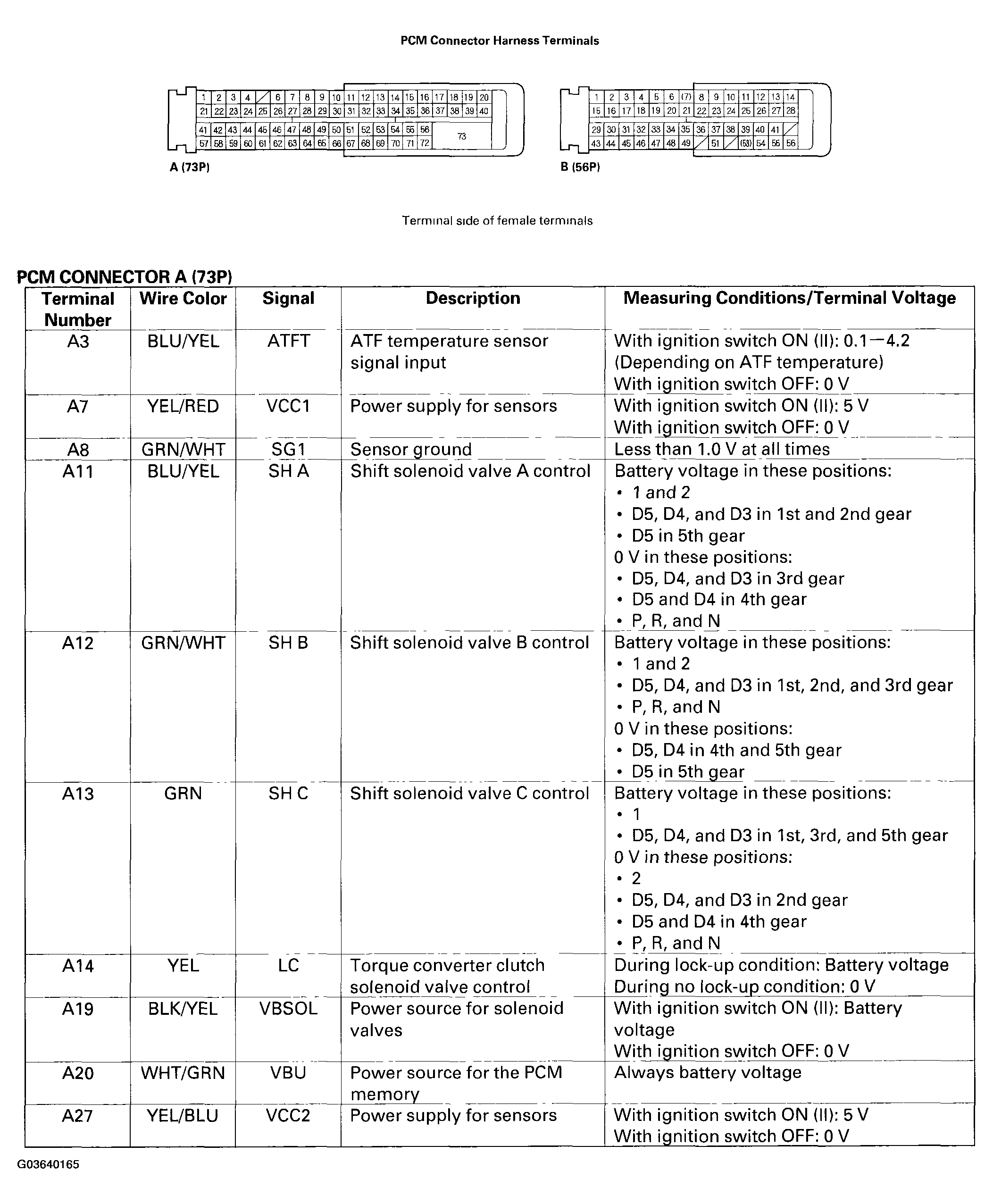

Fig 1: Identifying PCM Connector Harness Terminals (1 Of 2)
G03640165Courtesy of AMERICAN HONDA MOTOR CO., INC.

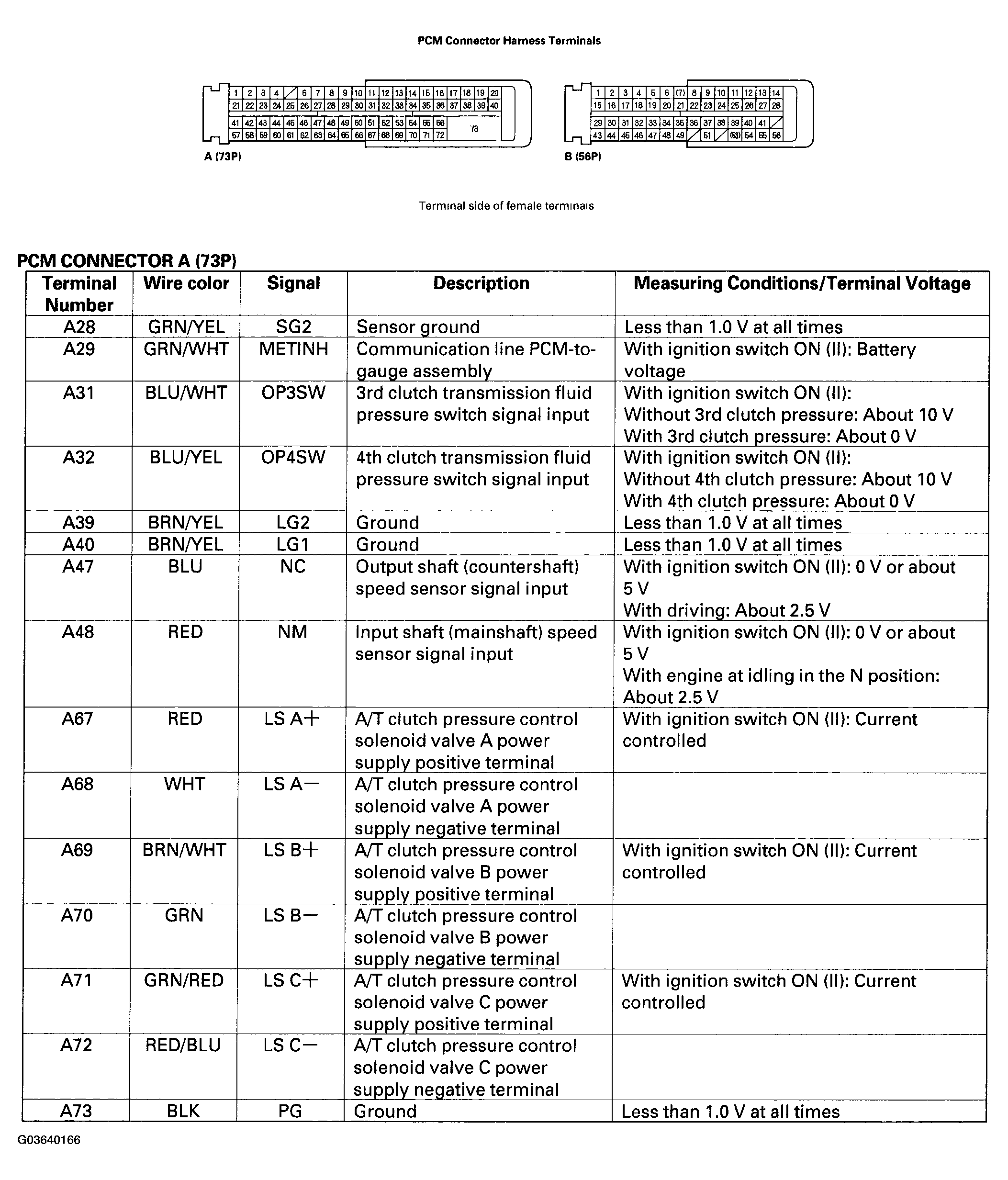

Fig 2: Identifying PCM Connector Harness Terminals (2 Of 2)
G03640166Courtesy of AMERICAN HONDA MOTOR CO., INC.
