N Position

The PCM controls the shift solenoid valves. The conditions of the shift solenoid valves and positions of the shift valve are as follows:

• The shift solenoid valve A is turned OFF, and the shift valve A moves to the left side.
• The shift solenoid valve B is turned ON, and the shift valve B stays on the right side.
• The shift solenoid valve C is turned OFF, and the shift valve C stays on the left side.

Line pressure (1) passes through the manual valve and becomes line pressure (25). Line pressure (25) stops at shift valve D. Line pressure (1) also flows to the modulator valve and becomes modulator pressure (6). Modulator pressure (6) flows to the shift solenoid valves, the A/T clutch pressure control solenoid valves A and B, and the A/T clutch pressure control solenoid valve C. Under this condition, hydraulic pressure is not applied to the clutches.

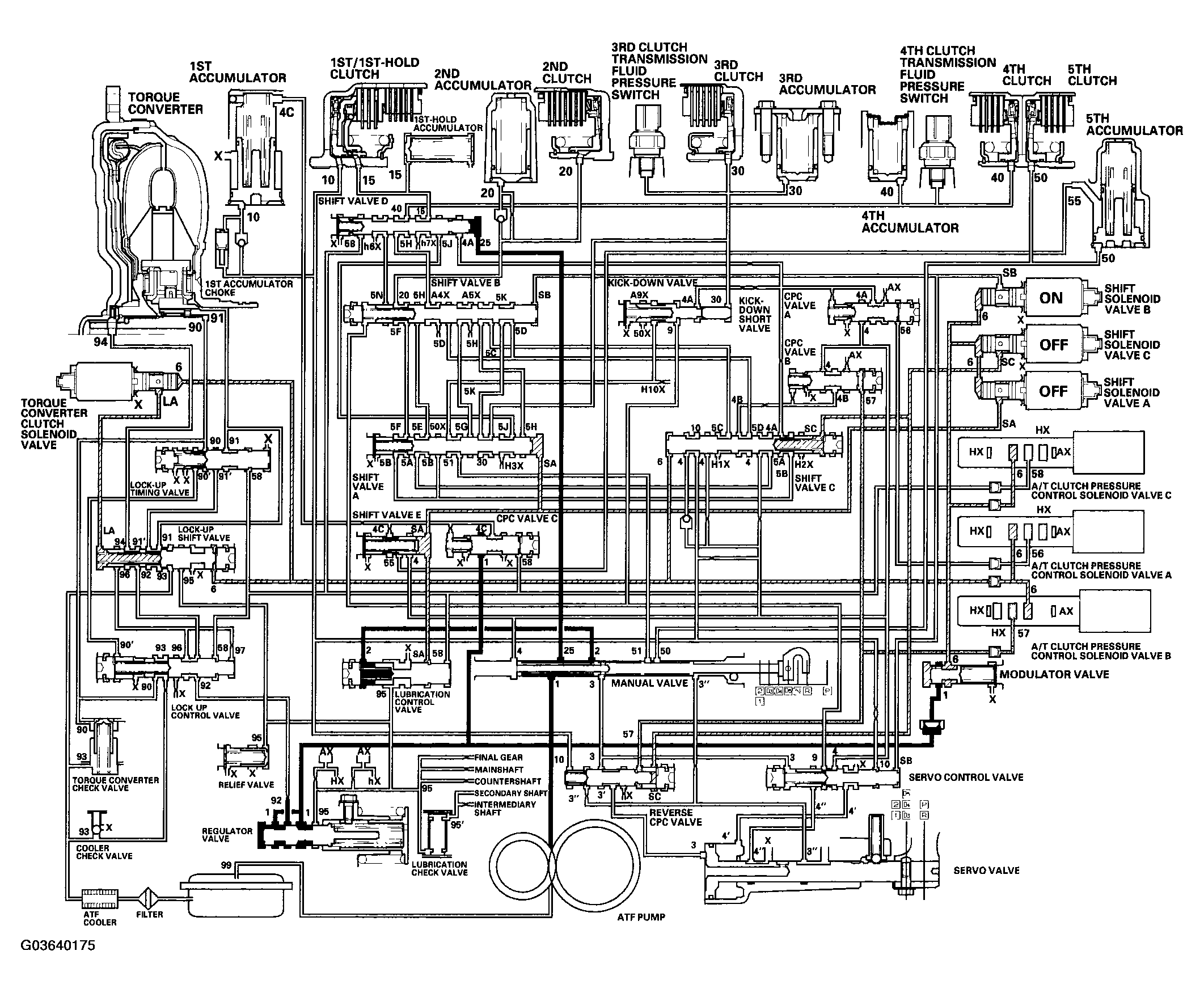

Fig 1: Identifying Hydraulic Flow Diagram - N Position

Courtesy of AMERICAN HONDA MOTOR CO., INC.
