N Position

Engine power transmitted from the mainshaft drives the mainshaft 3rd gear, the intermediary shaft 3rd gear, but hydraulic pressure is not applied to the clutches. Power is not transmitted to the countershaft. In this position, the position of the reverse selector differs according to whether the shift lever shifted from the D5 or R position:

• When shifted from the D5 position, the reverse selector engages with the countershaft 5th gear and the reverse selector hub, and the 5th gear engages with the countershaft.
• When shifted from the R position, the reverse selector engages with the countershaft reverse gear and the reverse selector hub, and the reverse gear engages with the countershaft.
  NOTE: The illustration shows the 2005-2006 models; 2003-2004 models are similar.

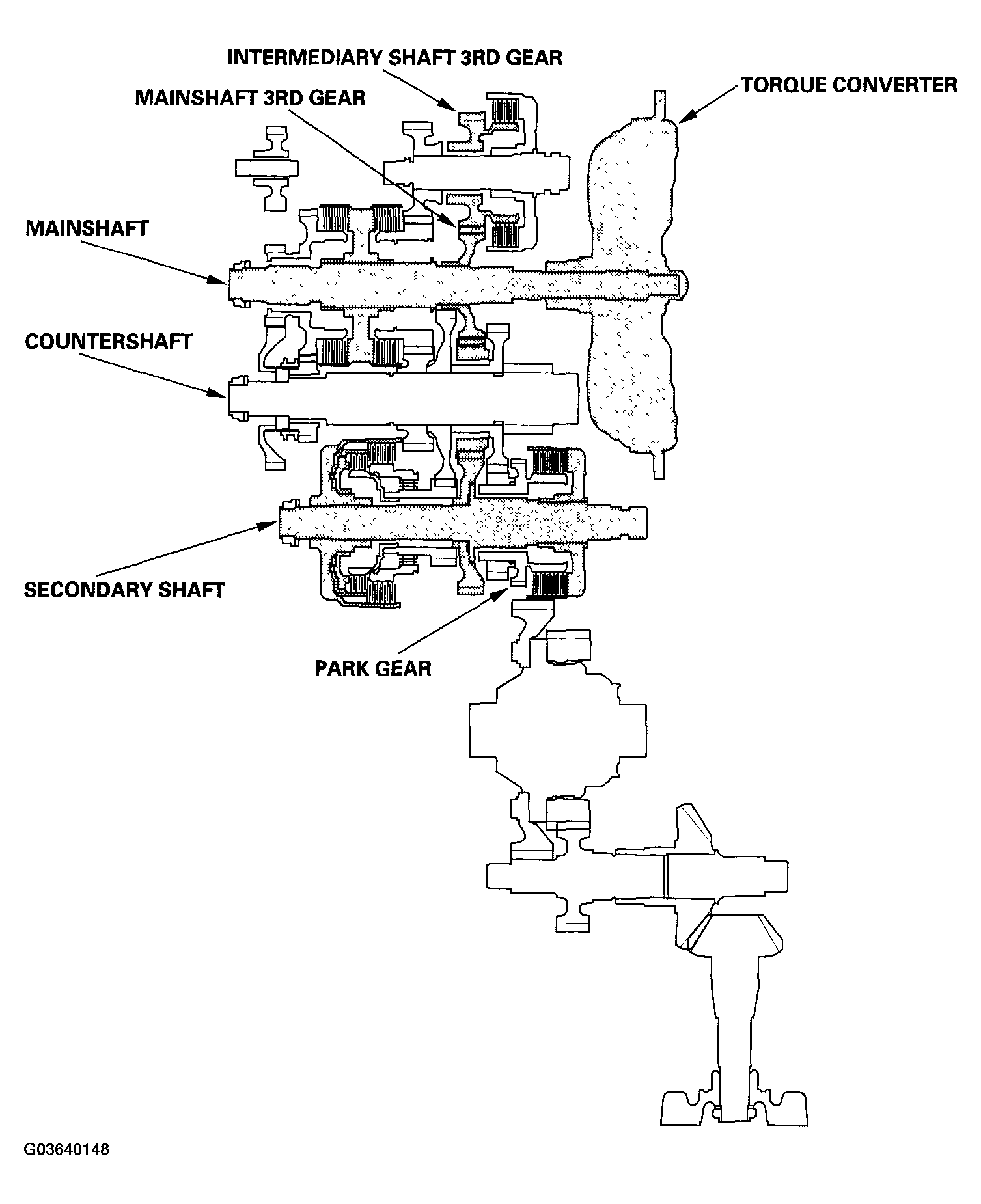

  Fig 1: Transmission Cutaway View - Power Flow (N Position)

  Courtesy of AMERICAN HONDA MOTOR CO., INC.
