Transfer Assembly Removal

Raise the vehicle, and make sure it is securely supported.
Remove the drain plug (A), and drain the automatic transmission fluid (ATF).

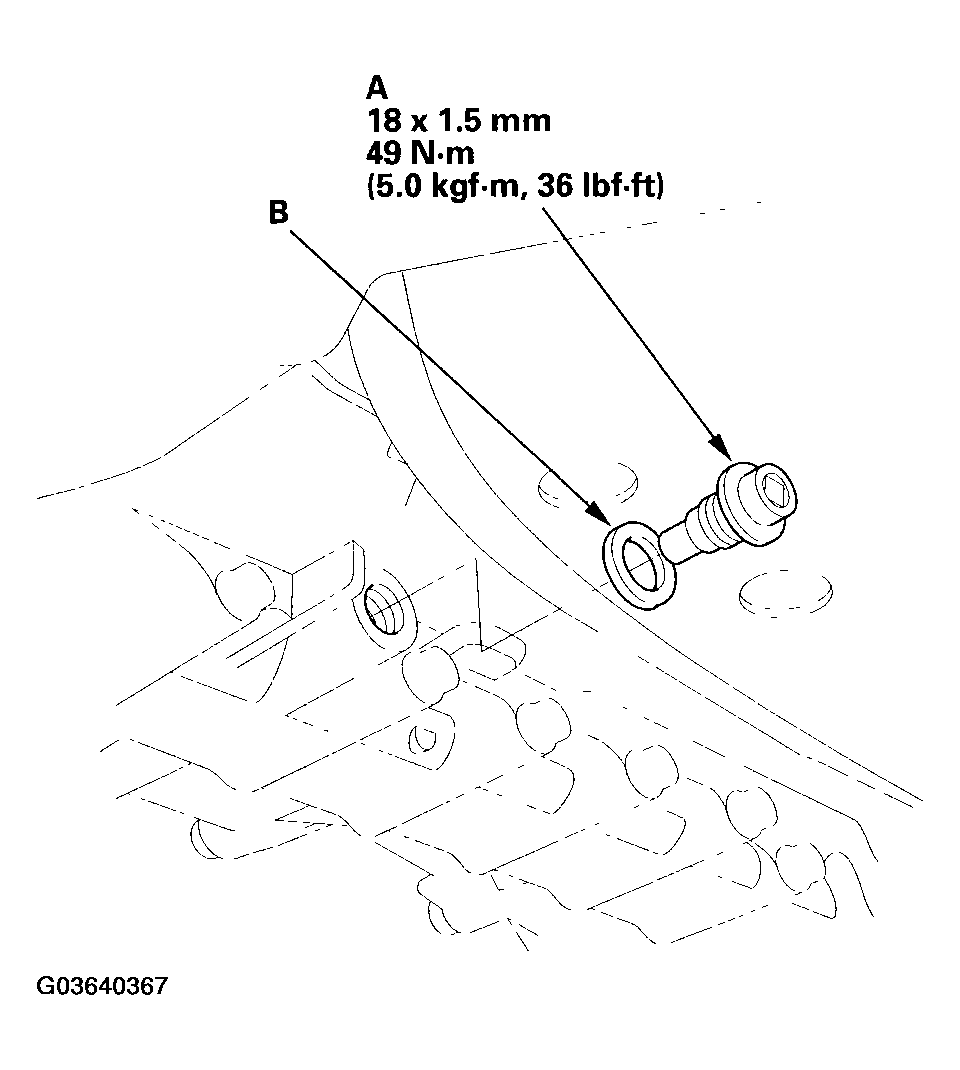

Fig 1: Removing Drain Plug
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Reinstall the drain plug with a new sealing washer (B).
Remove the front subframe stiffener.

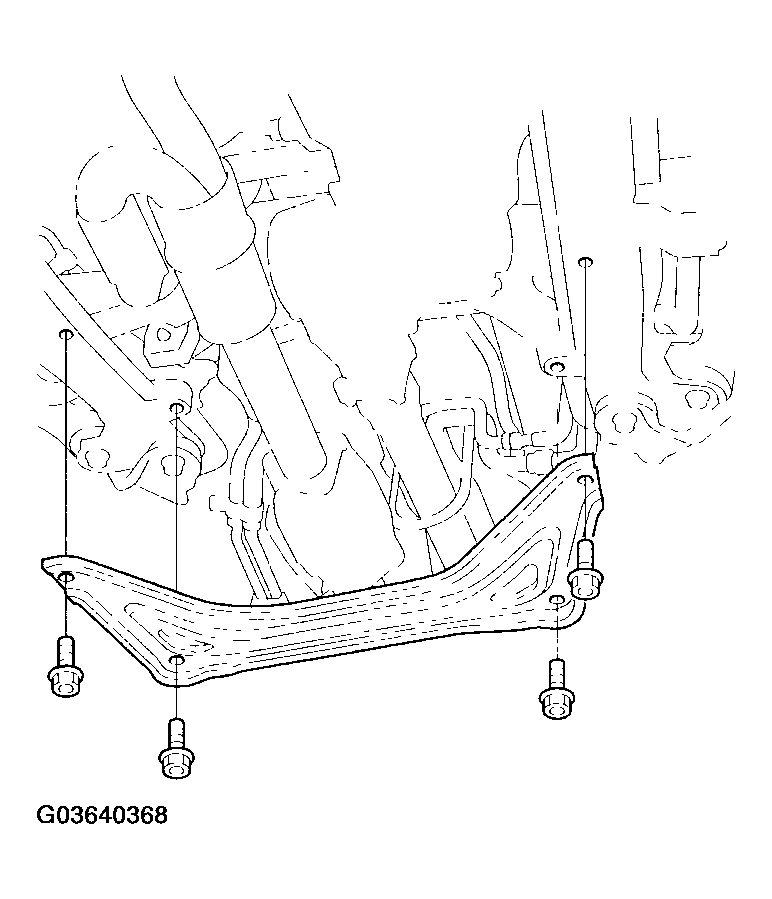

Fig 2: Removing Front Subframe Stiffener
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove exhaust pipe A.

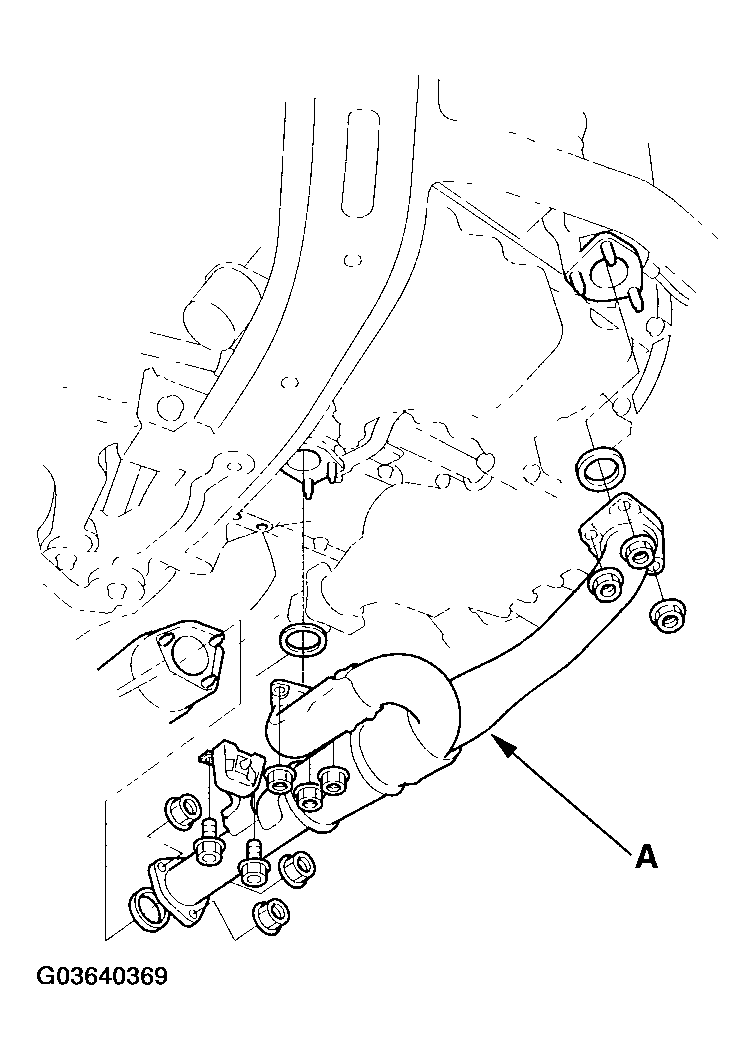

Fig 3: Removing Exhaust Pipe A
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the bolt securing the transfer breather tube bracket (A), and disconnect the breather tube (B) from the breather pipe (C) on the transfer assembly.

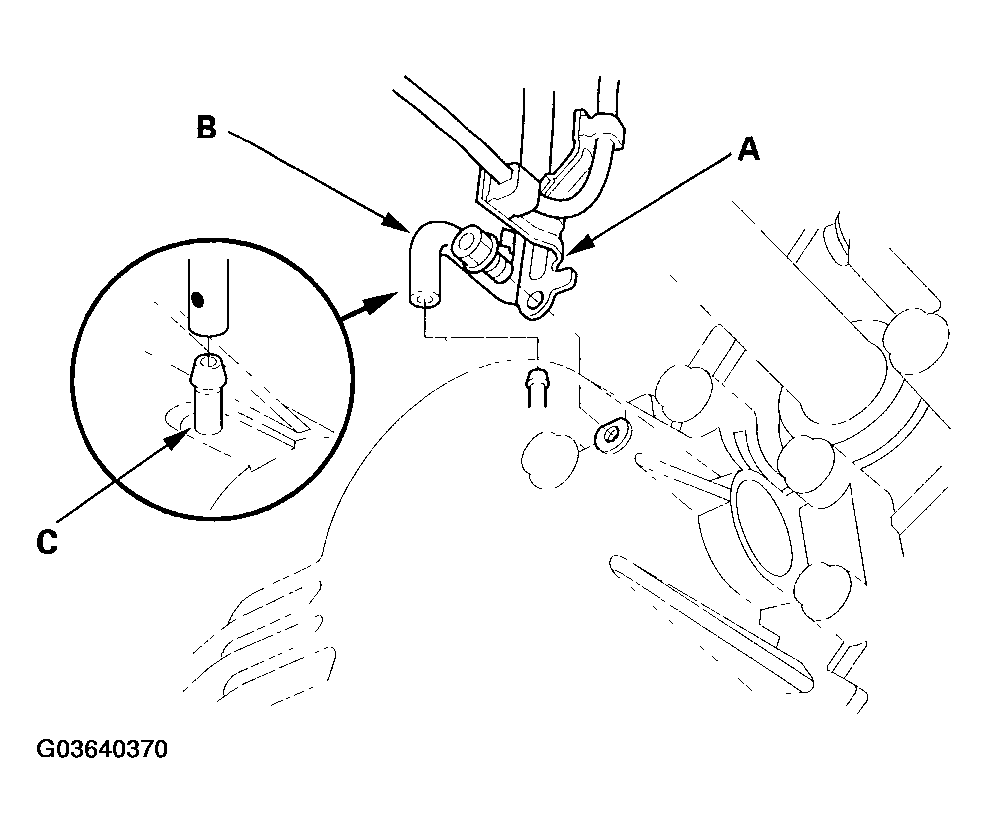

Fig 4: Disconnecting Breather Tube From Breather Pipe On Transfer Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Make a reference mark (A) across the propeller shaft (B) and the transfer companion flange (C).

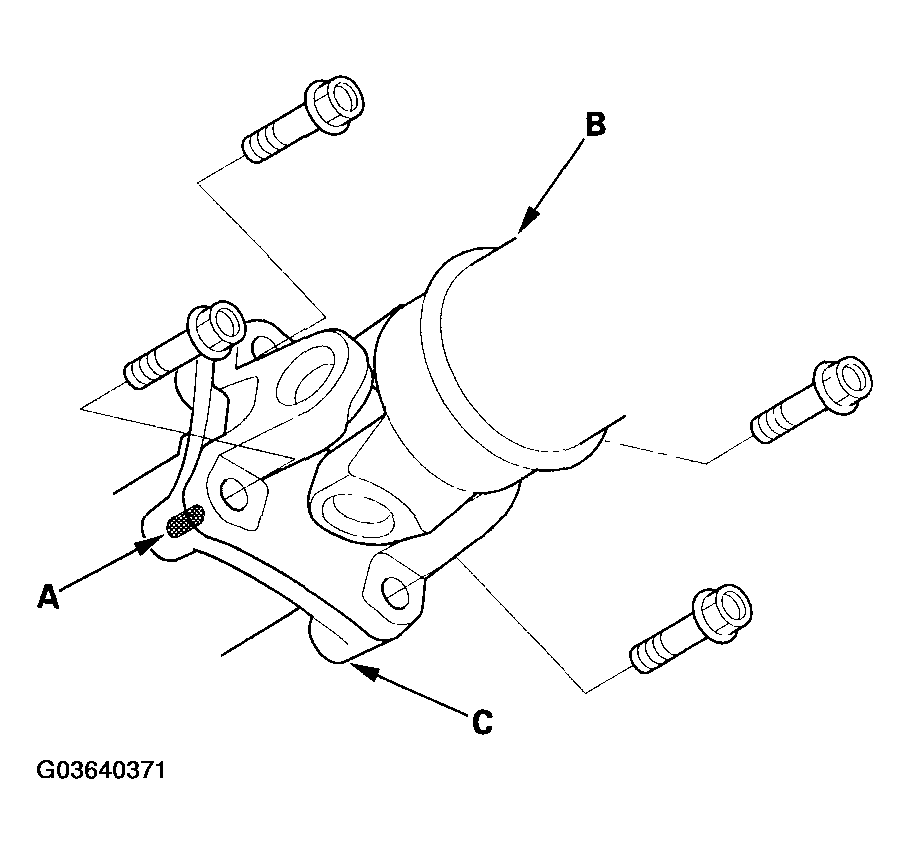

Fig 5: Marking Reference Mark Across Propeller Shaft And Transfer Companion Flange
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Separate the propeller shaft from the transfer assembly.
Remove the transfer assembly from the transmission.

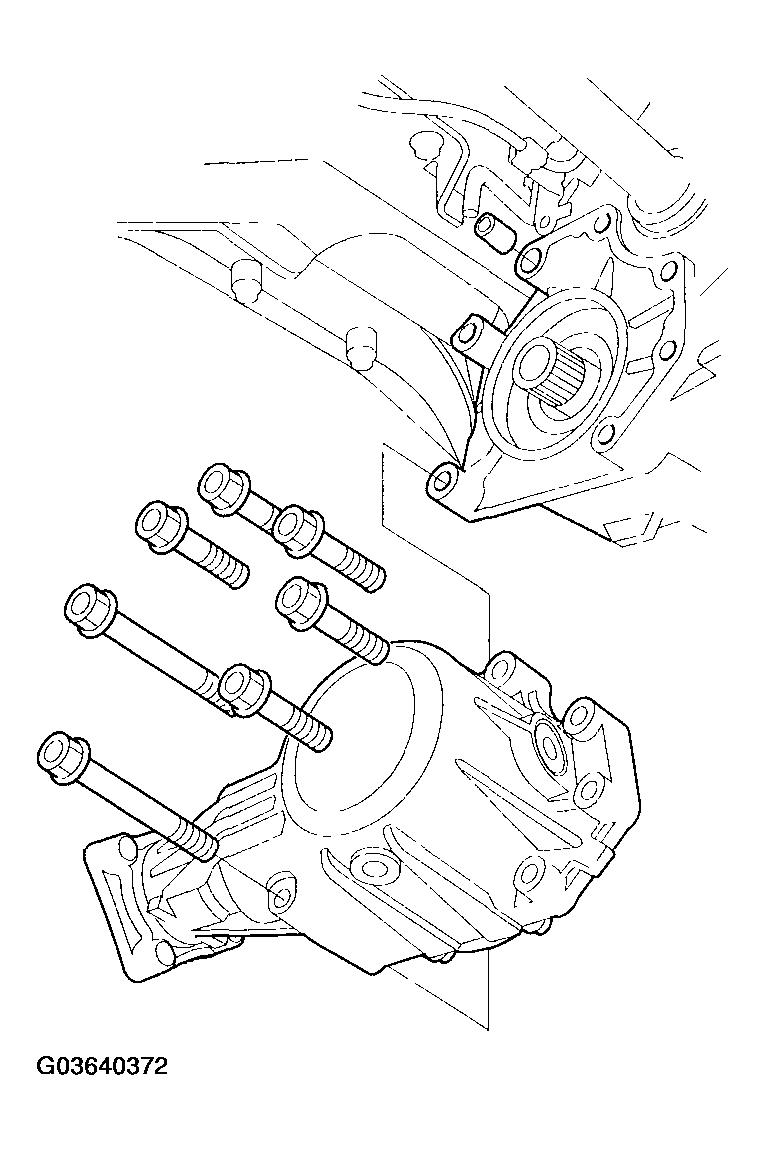

Fig 6: Removing Transfer Assembly From Transmission
Courtesy of AMERICAN HONDA MOTOR CO., INC.
