Passenger's Window Switch Test/Replacement

Remove the switch panel from the door panel (see DOOR PANEL REMOVAL/INSTALLATION ).
Disconnect the 5P connector (A) from the passenger's power window switch (B).

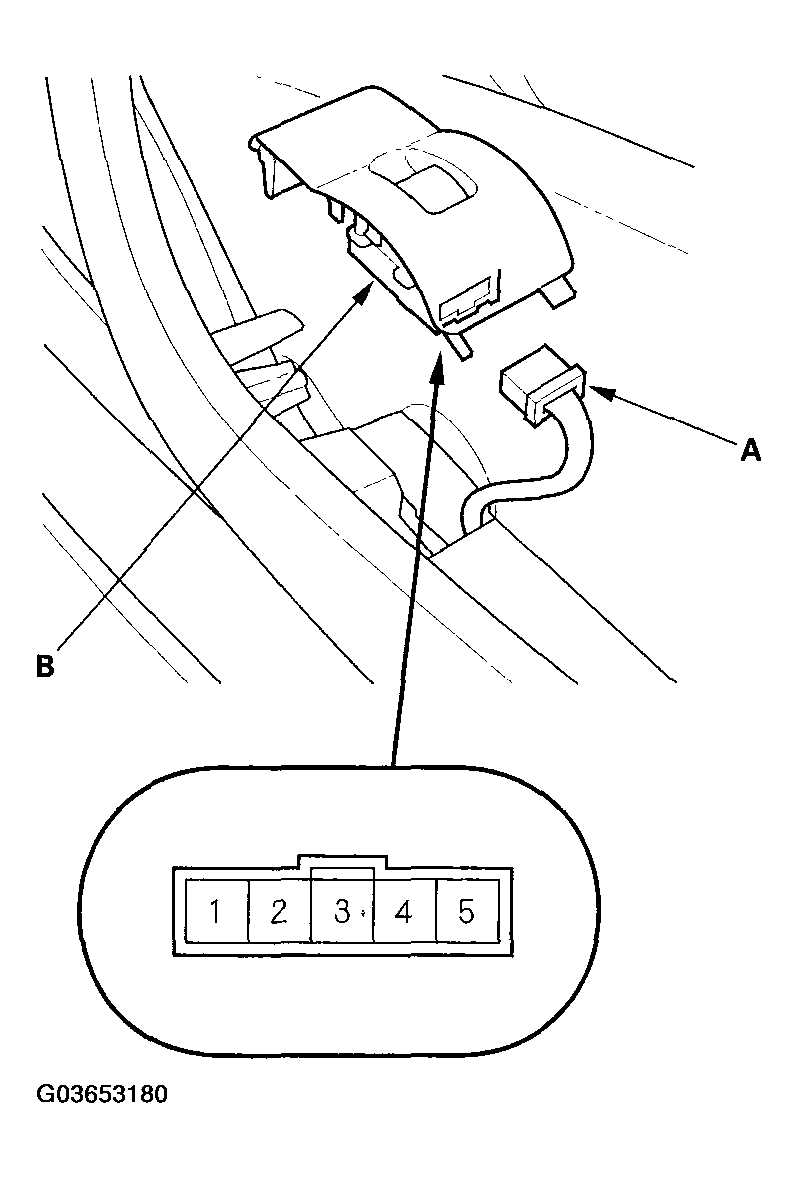

Fig 1: Disconnecting 5P Connector From Passenger's Power Window Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the two screws and passenger's power window switch.

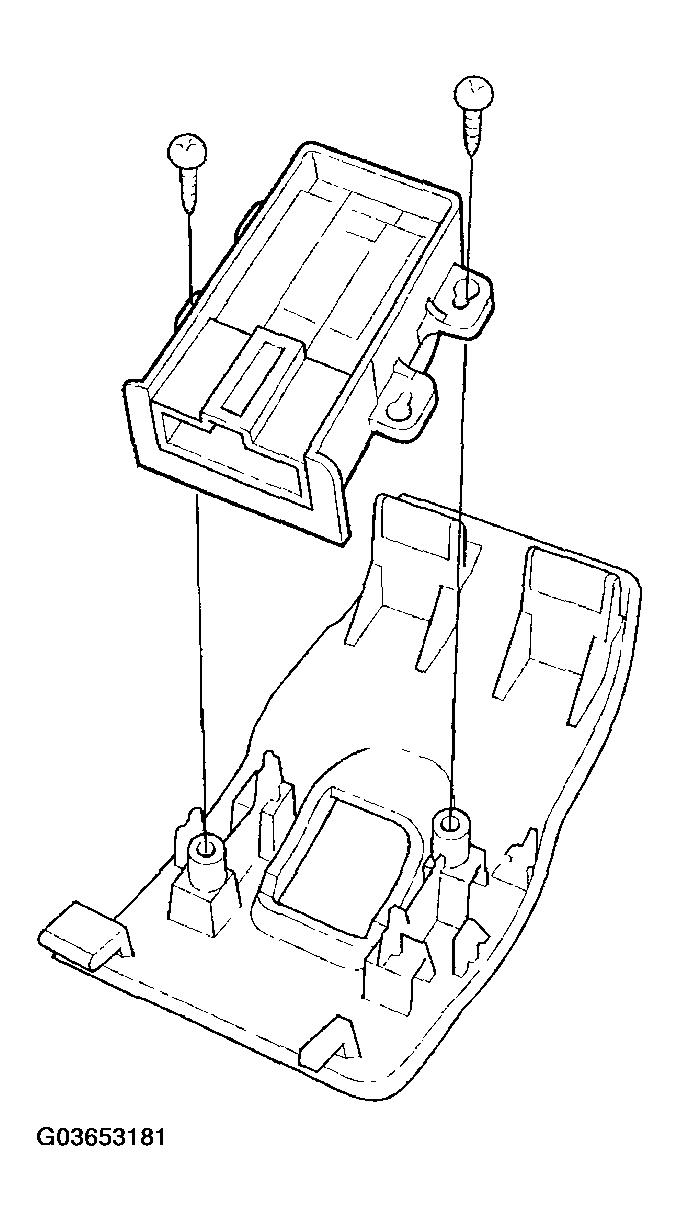

Fig 2: Removing Screws And Passenger's Power Window Switch
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Check for continuity between the terminals in each switch position according to the table.

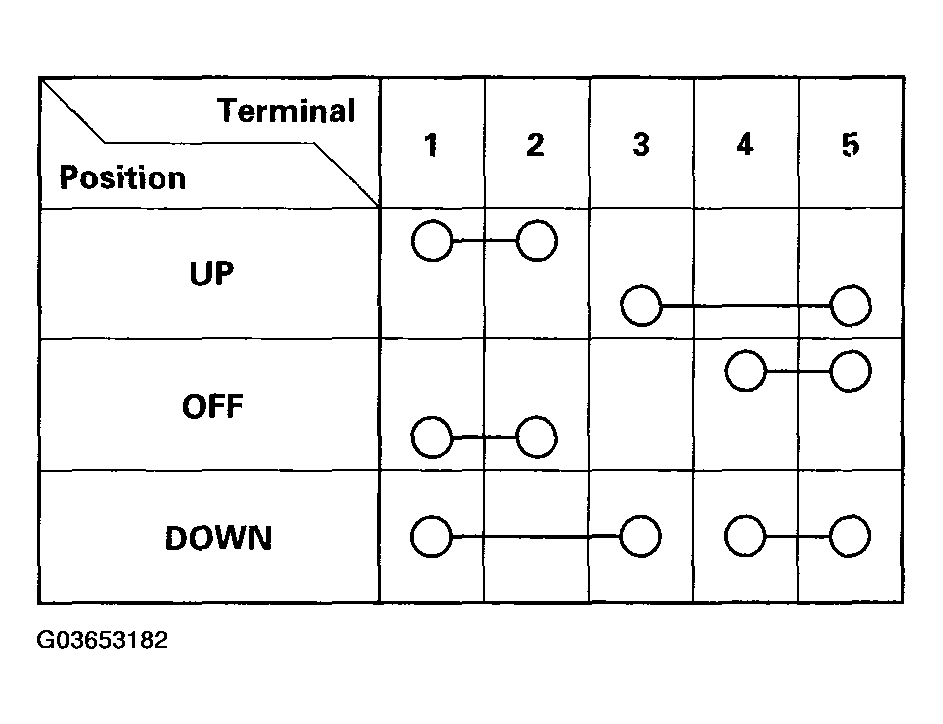

Fig 3: Switch Terminals Continuity Table
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the continuity is not as specified, replace the switch.
