2005-2006 Models

Check the No. 31 (15 A) fuse in the under-dash fuse/relay box.
Is the fuse OK?
1. YES - Go to step 2.
2. NO - Replace the fuse.
Remove the ignition coil relay from the under-dash fuse/relay box, and test it (see POWER RELAY TEST ).
Is the relay OK?
1. YES - Go to step 3.
2. NO - Replace the ignition coil relay.

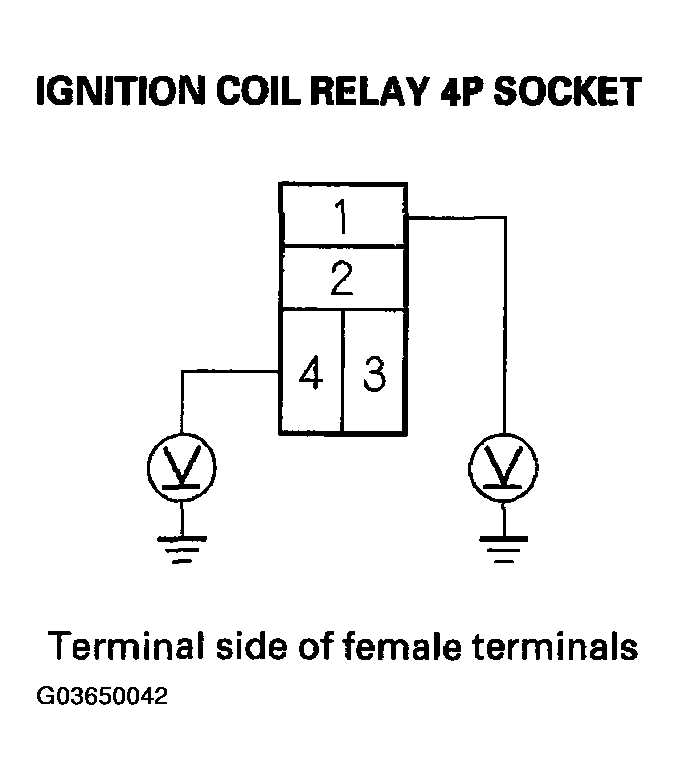

Measure the voltage between ignition coil relay 4P socket terminal No. 1 and body ground, and between terminal No. 4 and body ground.

Fig 1: Measuring Voltage Between Ignition Coil Relay 4P Socket Terminal No.1
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?
1. YES - Go to step 4.
2. NO - Replace the under-dash fuse/relay box.

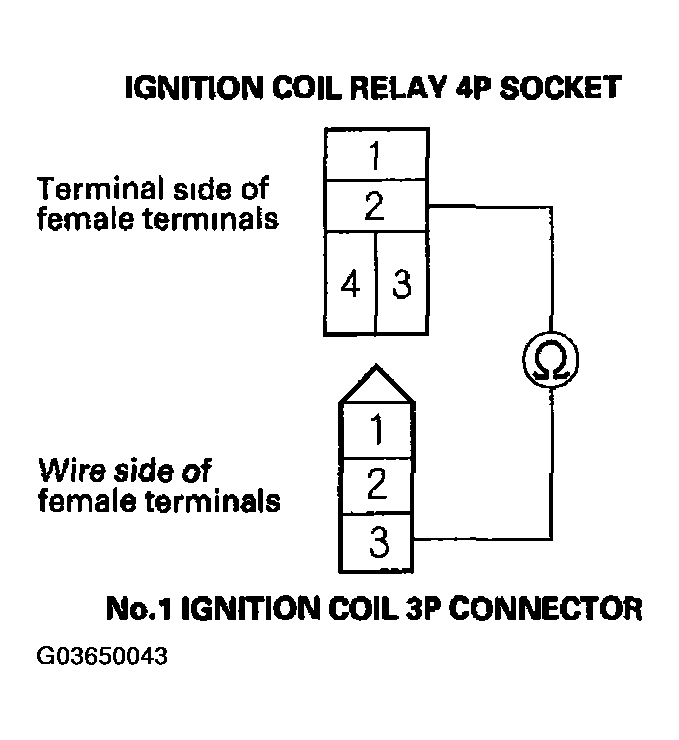

Check for continuity between ignition coil relay 4P socket terminal No. 2 and the No. 1, No. 2, No. 3 and No. 4 ignition coil 3P connector terminal No. 3.

Fig 2: Checking Continuity Between Ignition Coil Relay 4P Socket Terminal No. 2
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?
1. YES - Go to step 5.
2. NO - Repair an open in the wire between ignition coil relay 4P socket terminal No. 2 and ignition coil 3P connector terminal No. 3.
Connect the Honda Diagnostic System (HDS) to the data link connector (DLC) (see step 2 on IF THE MIL (MALFUNCTION INDICATOR LAMP) HAS COME ON ). Turn the ignition switch ON (II), and jump the SCS line with the HDS, then turn the ignition switch OFF.
NOTE: This step must be done to protect the engine control module (ECM)/ powertrain control module (PCM) from damage.
Disconnect ECM/PCM connector E (31P).

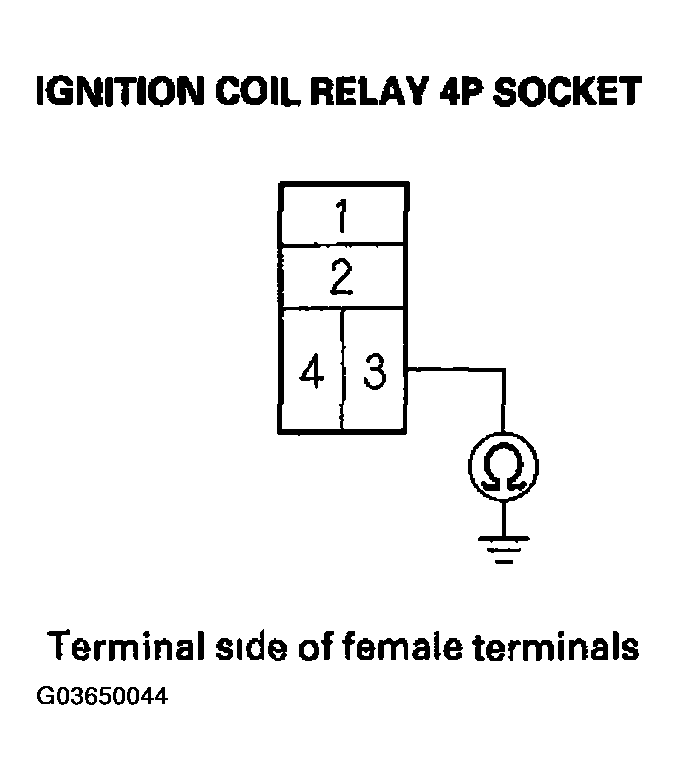

Check for continuity between ignition coil relay 4P socket terminal No. 3 and body ground.

Fig 3: Checking Continuity Between Ignition Coil Relay 4P Socket Terminal No.3
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?
1. YES - Repair a short in the wire between ignition coil relay 4P socket terminal No. 3 and the ECM/PCM.
2. NO - Go to step 8.
Check for continuity between ignition coil relay 4P socket terminal No. 3 and ECM/PCM connector terminal E7.
2002-2004 models

Fig 4: Checking Continuity Between Ignition Coil Relay 4P Socket Terminal No 3 And ECM/PCM Connector Terminal E7 (2002-2004 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2005-2006 models

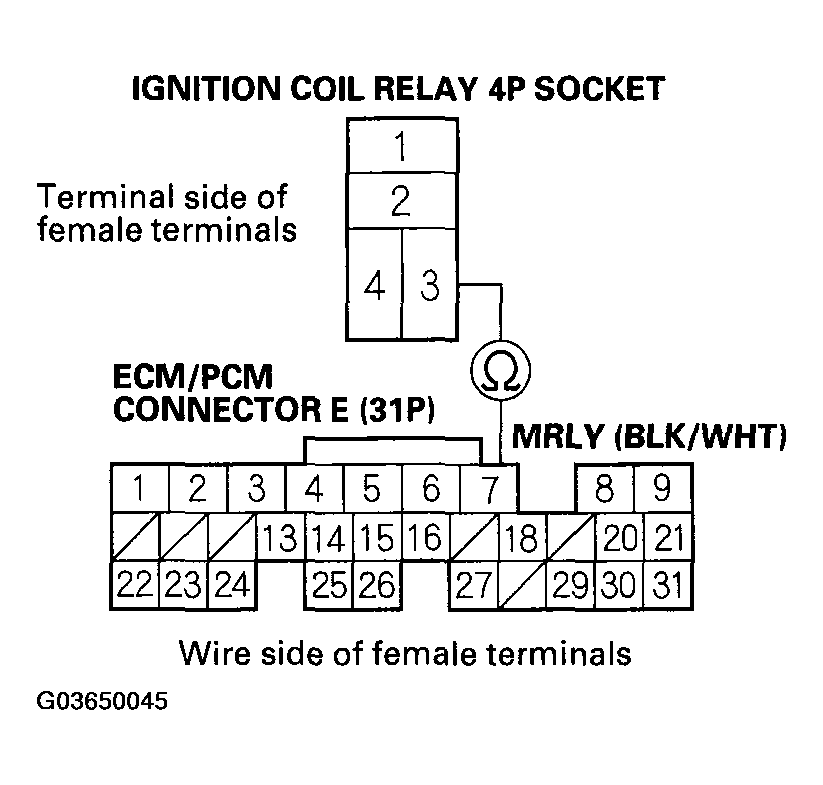

Fig 5: Checking Continuity Between Ignition Coil Relay 4P Socket Terminal No 3 And ECM/PCM Connector Terminal E7 (2005-2006 Models)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?
1. YES - The system is OK at this time. Check for loose or poor connections at the ignition coil relay and the ECM/PCM (E7).
2. NO - Repair an open in the wire between ignition coil relay 4P socket terminal No. 3 and the ECM/PCM (E7).
