2002-2004 models

  1. Drain the fuel tank (see FUEL TANK DRAINING  ).
  2. Jack up the vehicle, and support it with jackstands.
  3. Disconnect the fuel vapor hose and quick-connect fittings.

    Disconnect the hoses. Loosen the clamp (A). Slide back the clamps, then twist the hoses as you pull to avoid damaging them.

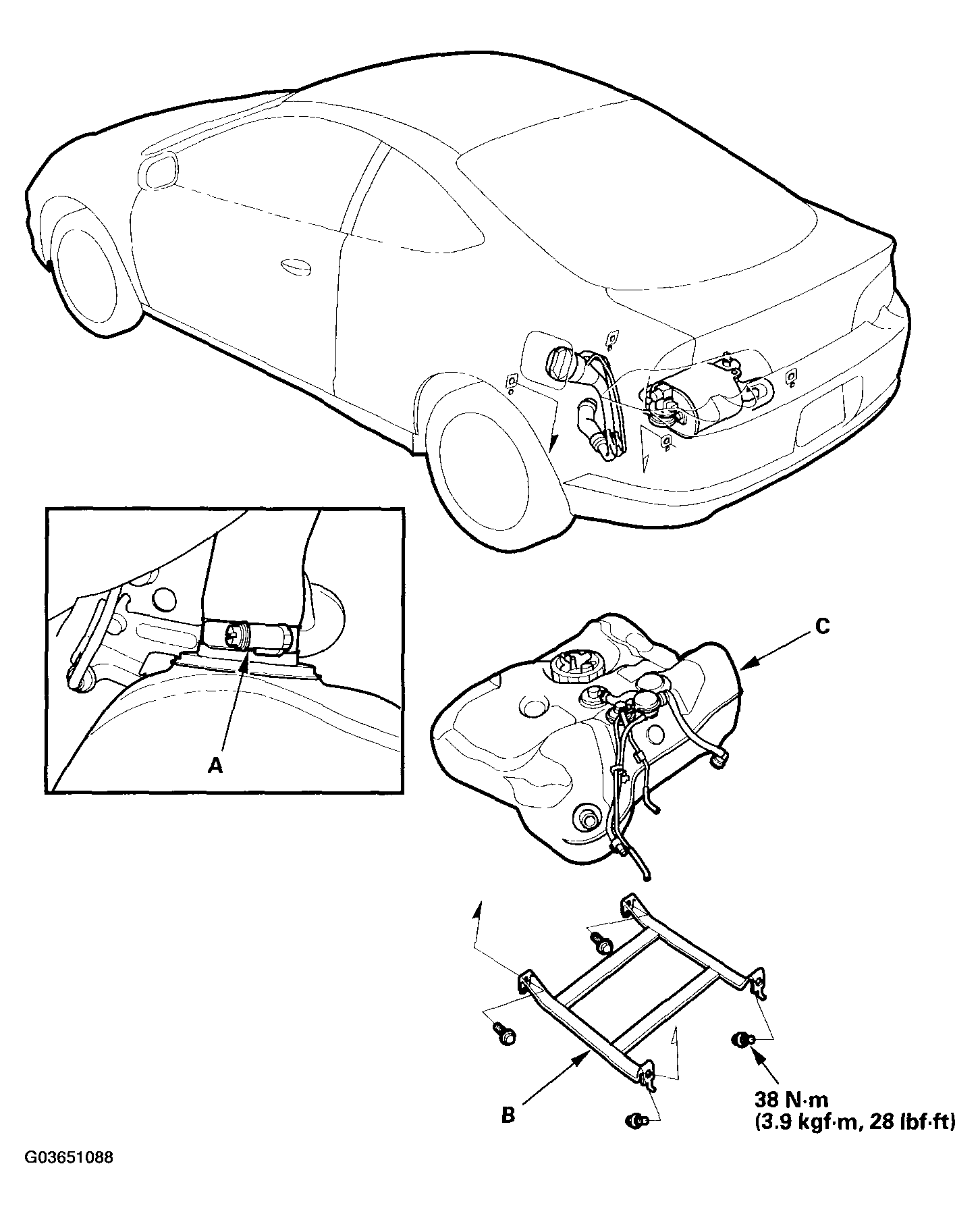

    Fig 1: Removing Fuel Tank And Torque Specifications
    G03651088Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Place a jack, or other support, under the tank.
  5. Remove the strap bolts, and let the strap (B) fall free.
  6. Remove the fuel tank (C). If it sticks to the undercoat on its mount, carefully pry it off the mount.
  7. Install the parts in the reverse order of removal.
